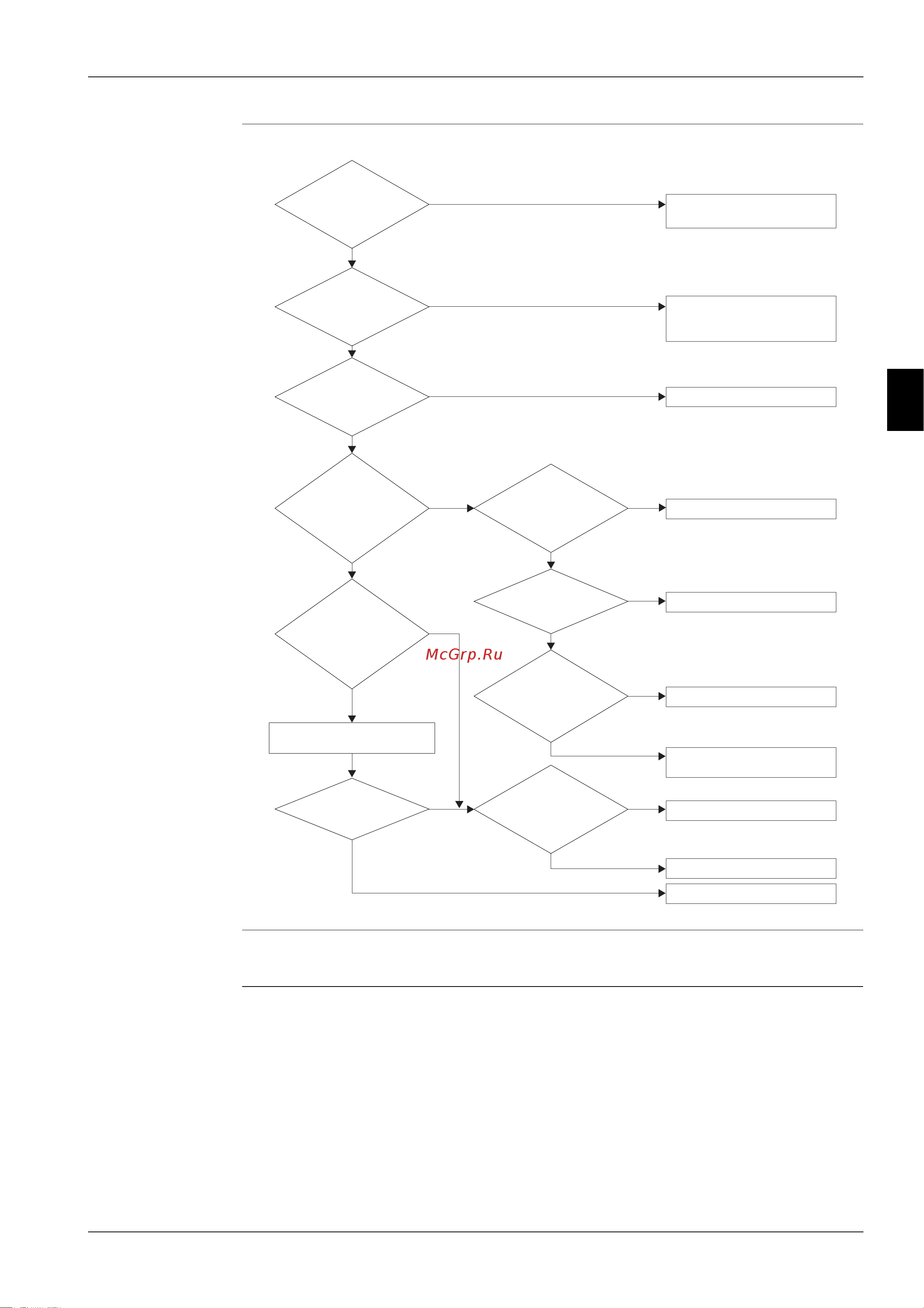

ESIE05-03 Error Codes: System Malfunctions
Part 3 – Troubleshooting 3–101
33
4
5
1
Troubleshooting
Caution Be sure to turn off power switch before connect or disconnect connector, or parts damage may be
occurred.
Is there
220-240 VAC
between No.1 and No.3
of X2M (indoor
Unit)?
Is
the power
supply PCB correctly
connected?
Is the
indoor-indoor and
indoor-outdoor
jumper correctly
connected?
Is the
indoor-indoor
and indoor-outdoor
jumper correctly
connected?
Is
the outdoor unit
used for Twin
system?
Is the
remote controller
connected to more than
one indoor
unit?
Are the
microcomputer
normal monitors (HAP) of
all indoor unit PCB
flashing?
Are the
transmission
normal montiors (HBP) of
all indoor unit PCB
flashing?
Operating normally?
Turn the power off once, then
back on, and restart operation.
Is the
setting of
Pair/Twin/Triple
set correctly?
Connect the remote controller
correctly.
Check setting "No. of
Connected Twin System Indoor
Units" of indoor unit.
Replace the transformer.
Wiring could be incorrect,
recheck.
Connect correctly.
Indoor unit PCB replacement.
Operates normally.
Connect correctly.
Connect correctly.
Set correctly.
YES
YES
YES
YES
YES
YES
YES
YES
NO
NO
NO
NO
NO
NO
NO
NO
NO
NO
YES
YES
ESIE05-03.book Page 101 Wednesday, April 6, 2005 4:09 PM
