ESIE05-03 Error Codes: Outdoor Units
Part 3 – Troubleshooting 3–87
33
4
5
1
Troubleshooting
Caution Be sure to turn off power switch before connect or disconnect connector, or parts damage may be
occurred.

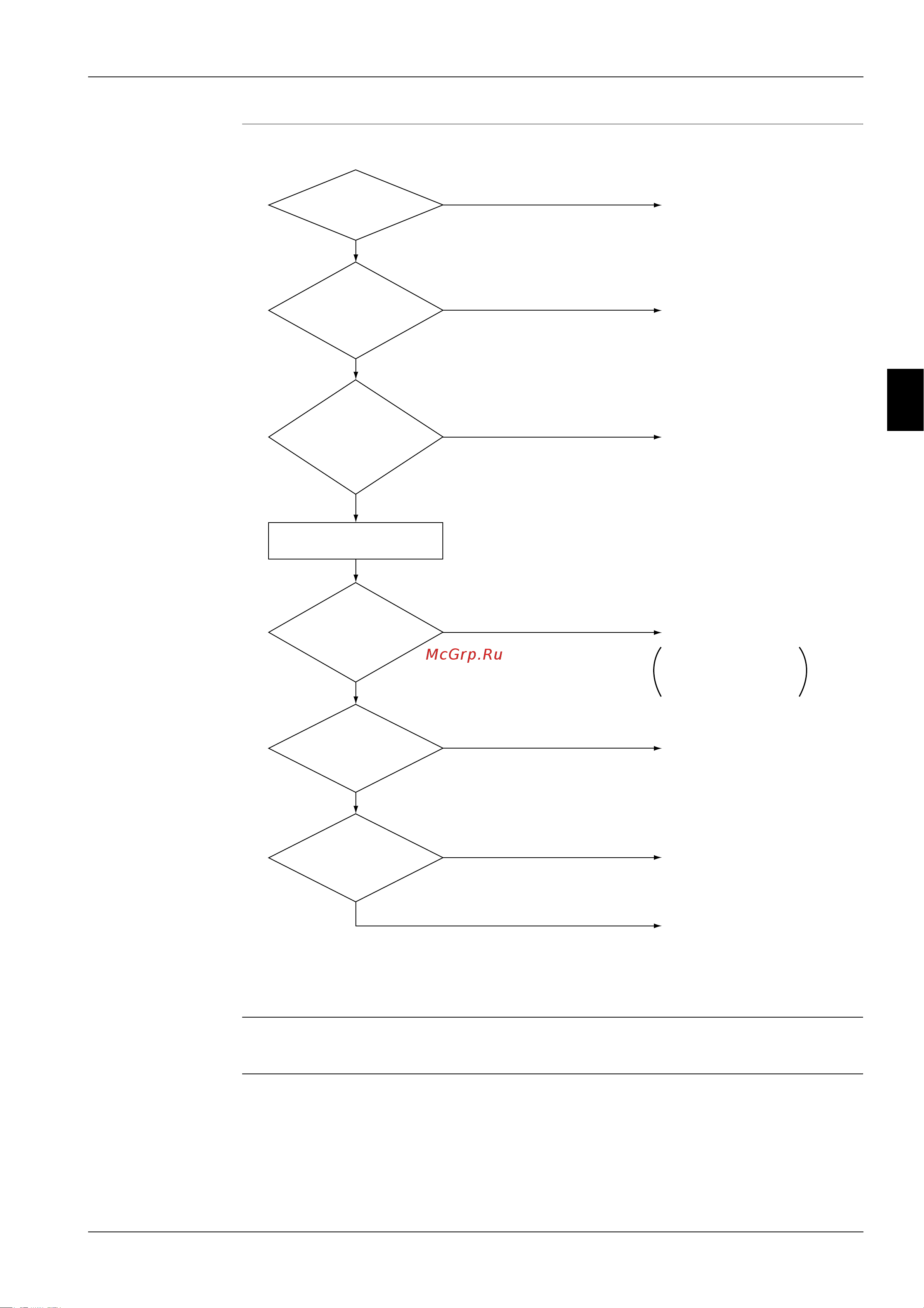

Is the fan
motor connector
connected?
Is the
transmission
wiring between the
control and inverter
PC board
disconnected?
Is the
microcomputer
normal monitor (green) on
inverter PC board
blinking?
Is the
microcomputer
normal LED on control
PC board blinking?
Is “E7”
displayed on the remote
controller? (Is “LC” not
displayed?)
Are
connectors
connecting the
control and inverter PC
board connected
securely?
Disconnect the fan motor
connector, and turn on again.
Connect the transmission wiring,
and turn on again.
Connect the connector, and turn
on again.
Fix the disconnection, and turn
on again.
Replace the fan motor.
Inverter transmission
malfunctioned due to the
malfunction of fan motor.
Replace the control PC board.
Replace the inverter PC board.
Check for faulty connector
connection in the transmission
wiring and for clamps with high
tension line.
NO
YES
YES
NO
NO
NO
YES
YES
YES
NO
NO
YES
ESIE05-03.book Page 87 Wednesday, April 6, 2005 4:09 PM
