ESIE05-03 Error Codes: System Malfunctions
Part 3 – Troubleshooting 3–99
33
4
5
1
4.4 Malfunction of Transmission between MAIN Remote Controller
and SUB Remote Controller (U8)
Error code U8
Error generation The error is generated when, in case of controlling with two remote controllers, the microprocessor
detects that the transmission between the indoor unit and the remote controllers (MAIN and SUB) is
not normal over a certain amount of time.
Causes The possible causes are:
P Transmission error between MAIN remote controller and SUB remote controller
P Connection among SUB remote controllers
P Malfunctioning remote controller PCB.

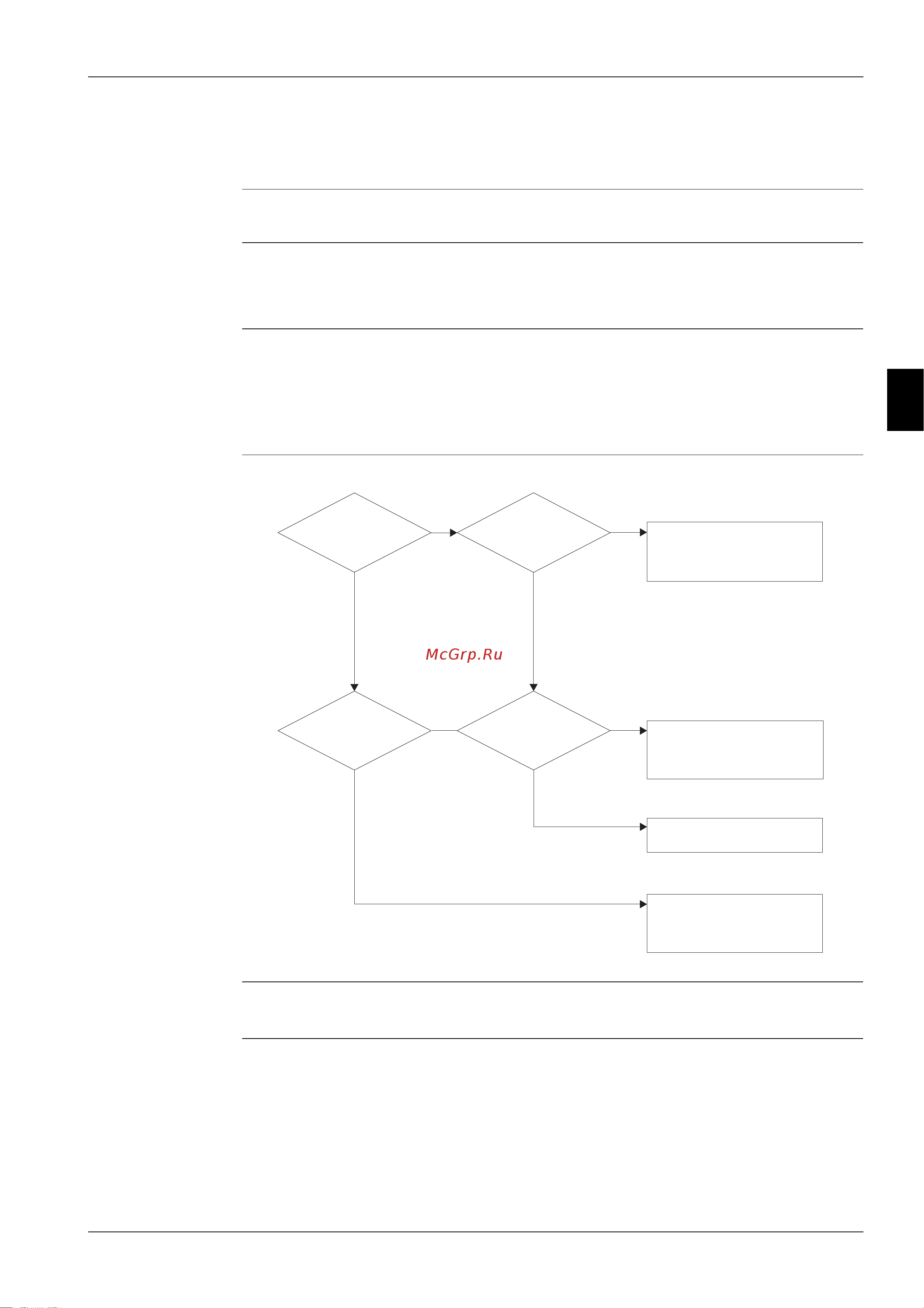

Troubleshooting
Caution Be sure to turn off power switch before connect or disconnect connector, or parts damage may be
occurred.
Turn the SS-1 switch of one
remote controller to MAIN.
Turn OFF the power supply,
and restart operation.
Turn OFF the power once and
restart operation.
Replace remote controller PCB
if any error is generated.
Turn the SS-1switch of one
remote controller to MAIN.
Turn OFF the power supply,
and restart operation.
Replace the remote controller
wiring.
Controlling
with 2-remote
controller
Both SS-1
switches on remote
controllers are turned
to SUB
Is there
continuity in remote
controller wiring?
SS-1
switch on remote
controller PCB is turned
to MAIN
NO
NO
YES
NO
YES YES
YES
NO
