ESIE05-03 Error Codes: Outdoor Units
Part 3 – Troubleshooting 3–75
33
4
5
1
Troubleshooting

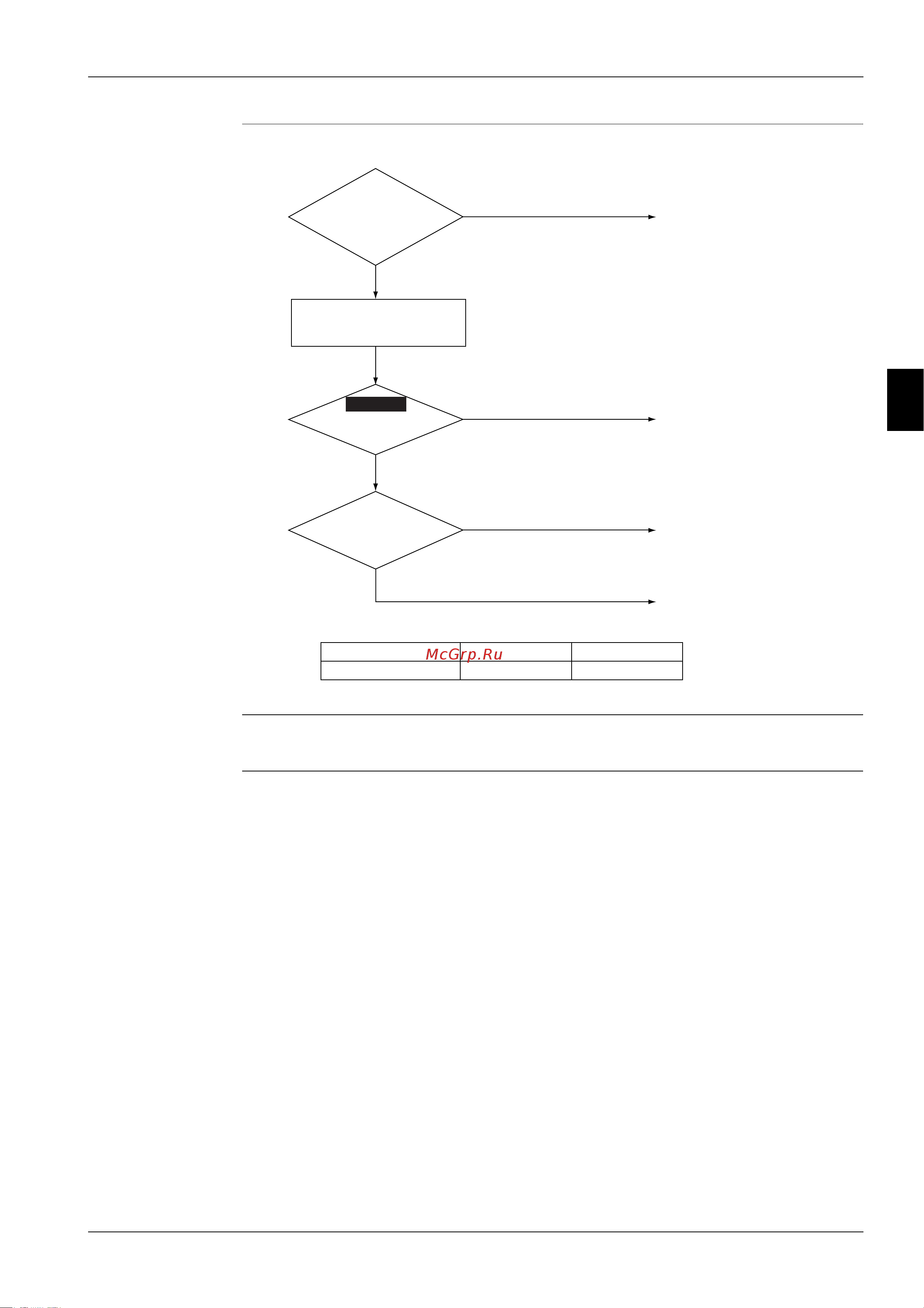

Caution Be sure to turn off power switch before connect or disconnect connector, or parts damage may be
occurred.
Turn off the power supply.
After 10 minutes, check the
following.
Is low pressure
abnormally low?
Is LPS
connector connected to
outdoor PC board?
(∗1)
Is there
continuity in control
and protection
LPS?
Model name
RZQ100 ~140
S1PL X31A
∗1
Connect correctly.
Correct the refrigerant pipe.
Replace the LPS.
Replace the outdoor unit PC
board.
NO
NO
YES
YES
YES
NO
Check 5.8
ESIE05-03.book Page 75 Wednesday, April 6, 2005 4:09 PM
