Error Codes: Outdoor Units ESIE05-03
3–64 Part 3 – Troubleshooting
3
1
3
4
5

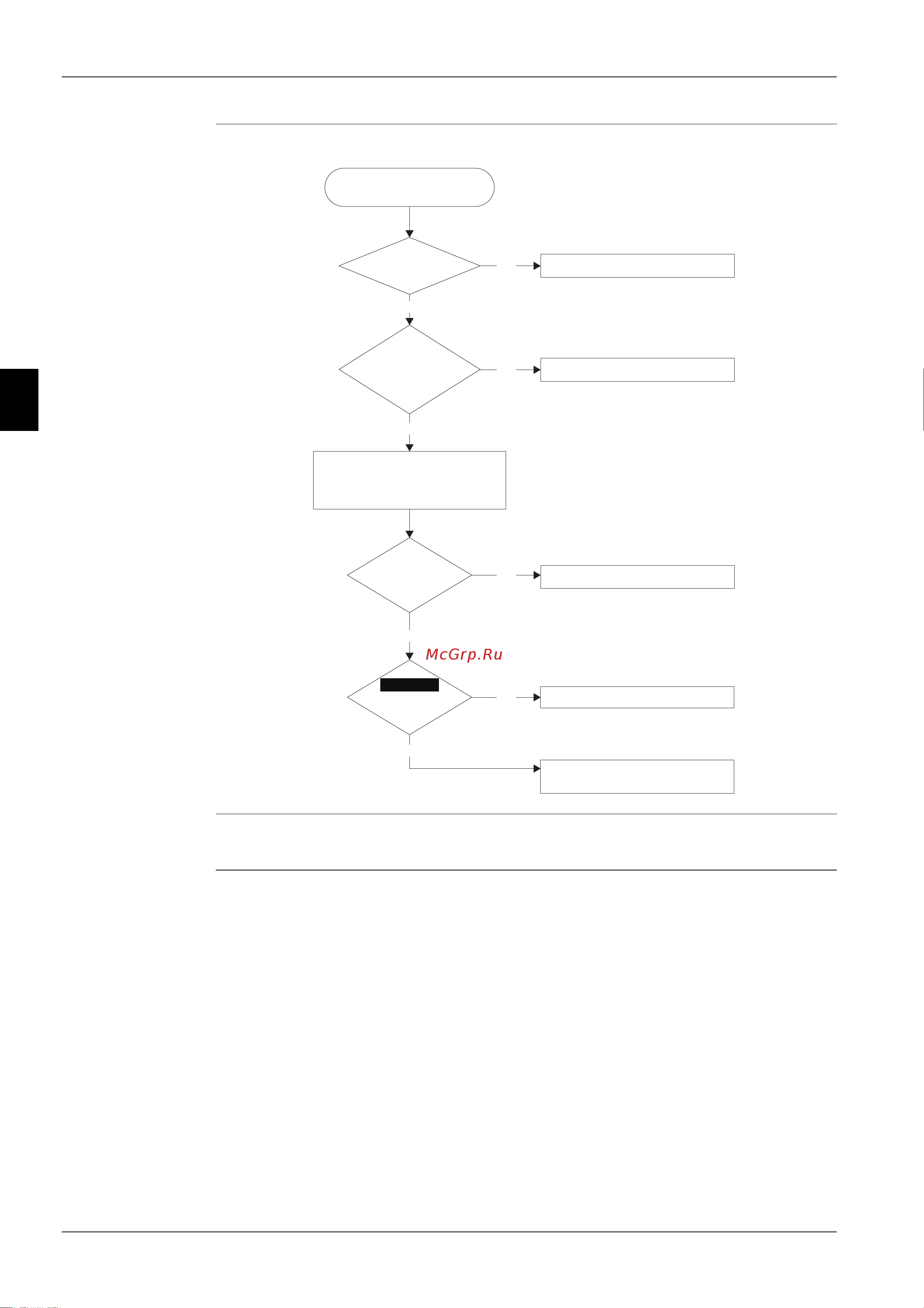

Troubleshooting To troubleshoot, proceed as follows:
Caution Be sure to turn off power switch before connecting or disconnecting the connector, or parts damage
may occur.
· Turn the power OFF and back
ON after 2 or 3 minutes.
· Check the continuity of the
LPS for control and safety.
Open the stop valve.
Replace LPS without continuity.
Fault in refrigerant piping.
Replace the outdoor unit PC board.
(A1P)
Is the stop
valve open?
Does
this LPS have
continuity?
Check the
installation conditions.
Ye s
Is the
LPS correctly
connected to the
outdoor unit
PCB?
Ye s
Ye s
OK
No
Connect correctly.
No
No
No
Low pressure is
abnormally
low.
Check 5.8
ESIE05-03.book Page 64 Wednesday, April 6, 2005 4:09 PM
