ESIE05-03 Disassembly and Maintenance: Outdoor Units
Part 5 – Disassembly and Maintenance 5–7
3
5
1
5

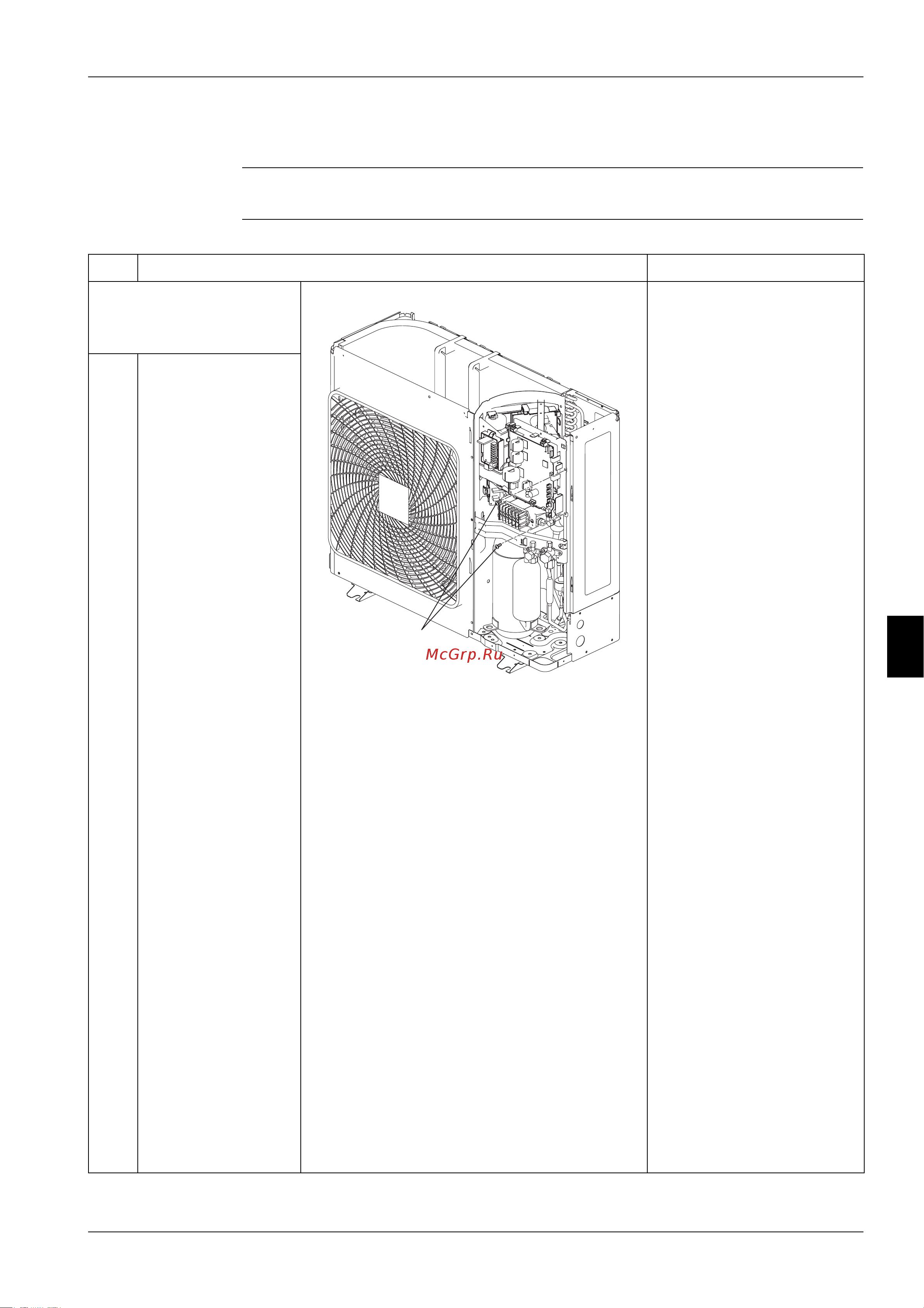

1.2.3 Removal of Switch Box
Warning Be sure to wait 10 minutes or more after turning off all power supplies before disassembling work.
Procedure
Step Procedure Points
P Remove the front and top
panels in accordance with the
Removal Procedure for
Outside Panel.
P If the top panel cannot be
removed, this switch box will
be able to be dismounted
without removing the top
panel.
1 Remove all connectors
and Faston terminals,
which have a connection
to the switch box.
P Disconnect the relay
connector from the
lead wire of the
compressor. (Only on
RZQ71B8V3B)
P Remove the lead
wire of the
compressor from the
terminal cover of this
compressor.
(RZQ100~140B)
P Disconnect the relay
connector from the
lead wire of the
reactor. (Only on
RZQ100~140B)
P Disconnect the relay
connector(s) from the
lead wire of the fan
motor(s).
P Remove the lead
wire from the terminal
of the high pressure
switch (all models)
and low pressure
switch. (Only on
RZQ100~140B)
P Disconnect the
respective
connectors from the
following parts on the
PC board.
P Each thermistor
P Low pressure
sensor (RZQ71)
P Coil of four way
valve
P Coil of solenoid
valve
P Coil of motorized
valve
Fixing screw of
switch box
ESIE05-03.book Page 7 Wednesday, April 6, 2005 4:09 PM
