Daikin RZQ125B7W1B [135/326] Suction pipe superheat protection control heating mode
![Daikin RZQ100B7W1B [135/326] Suction pipe superheat protection control heating mode](/views2/1794903/page135/bg87.png)
ESIE05-03 Outdoor Unit Functional Concept
Part 2 – Functional Description 2–51
3
2
4
5
1

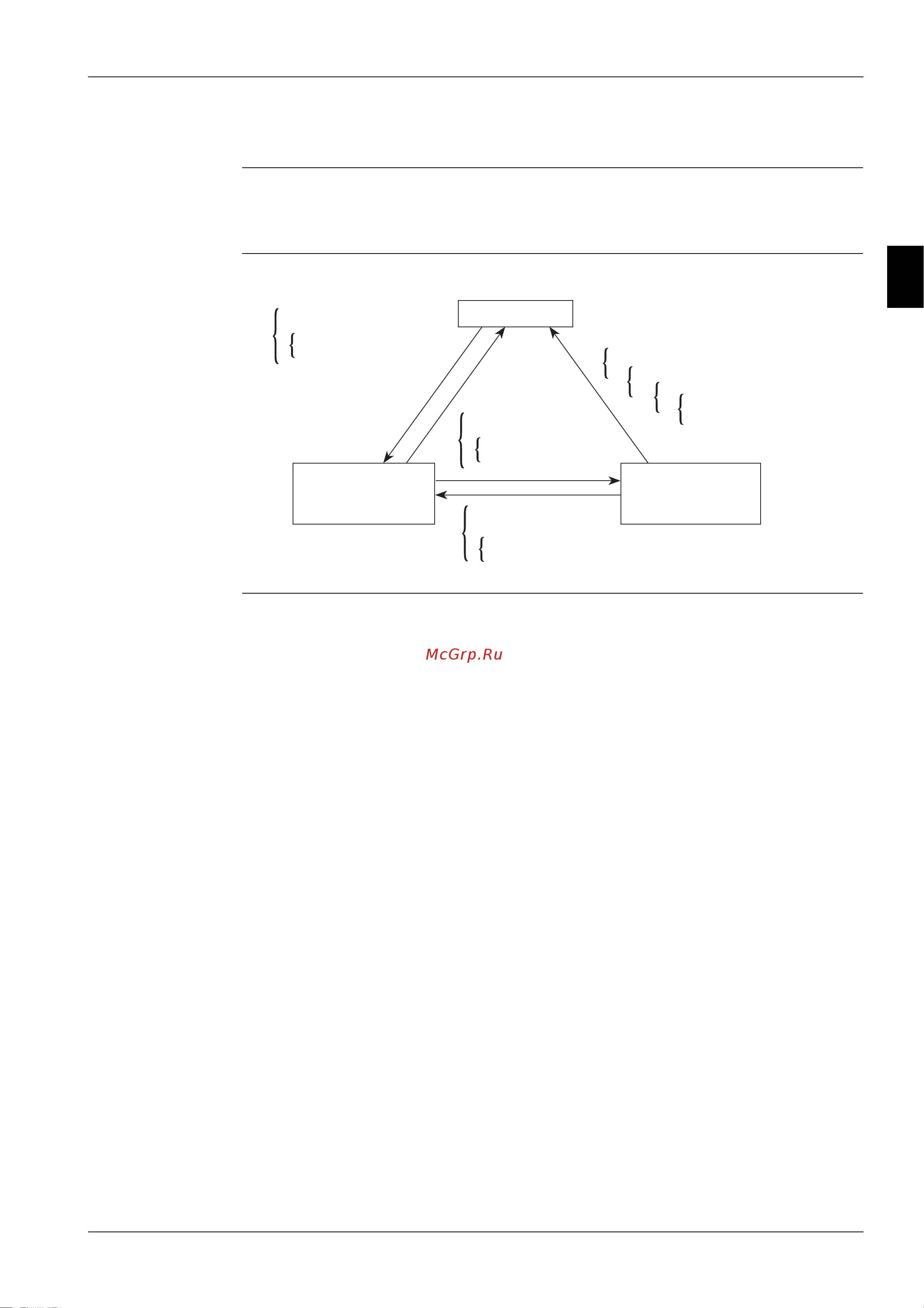

3.3.6 Suction Pipe Superheat Protection Control (Heating Mode)
Outline In case the suction superheat value in heating mode is too high, the oil return to the compressor will
be insufficient. In order to avoid that the compressor oil will be accumulated in the outdoor unit heat
exchanger, the upper limit frequency will be decreased.
Flow chart
Normal operation
Lowering upper limit
frequency for 1-step
every 20 seconds
Raising upper limit
frequency for 1-step
every 20 seconds
• Suction SH > 12°C
• Suction SH > 10°C
• EV opening degree = 480pls
• Suction SH > 12°C
• Suction SH > 10°C
• EV opening degree = 480pls
• Suction SH < 10°C
• EV opening degree < 450pls
• Suction SH < 8°C
• Suction SH < 6°C
• Suction SH < 6°C
• Upper limit frequency = Maximum frequency
• Suction SH < 8°C
• Suction SH < 10°C
• EV opening degree < 450 pls
OR
OR
OR
OR
&
&
&
•&
•OR
•&
