Wiring Diagrams ESIE05-03
1–42 Part 1 – System Outline
3
1
1
4
5
5.2 RZQ71B8V3B

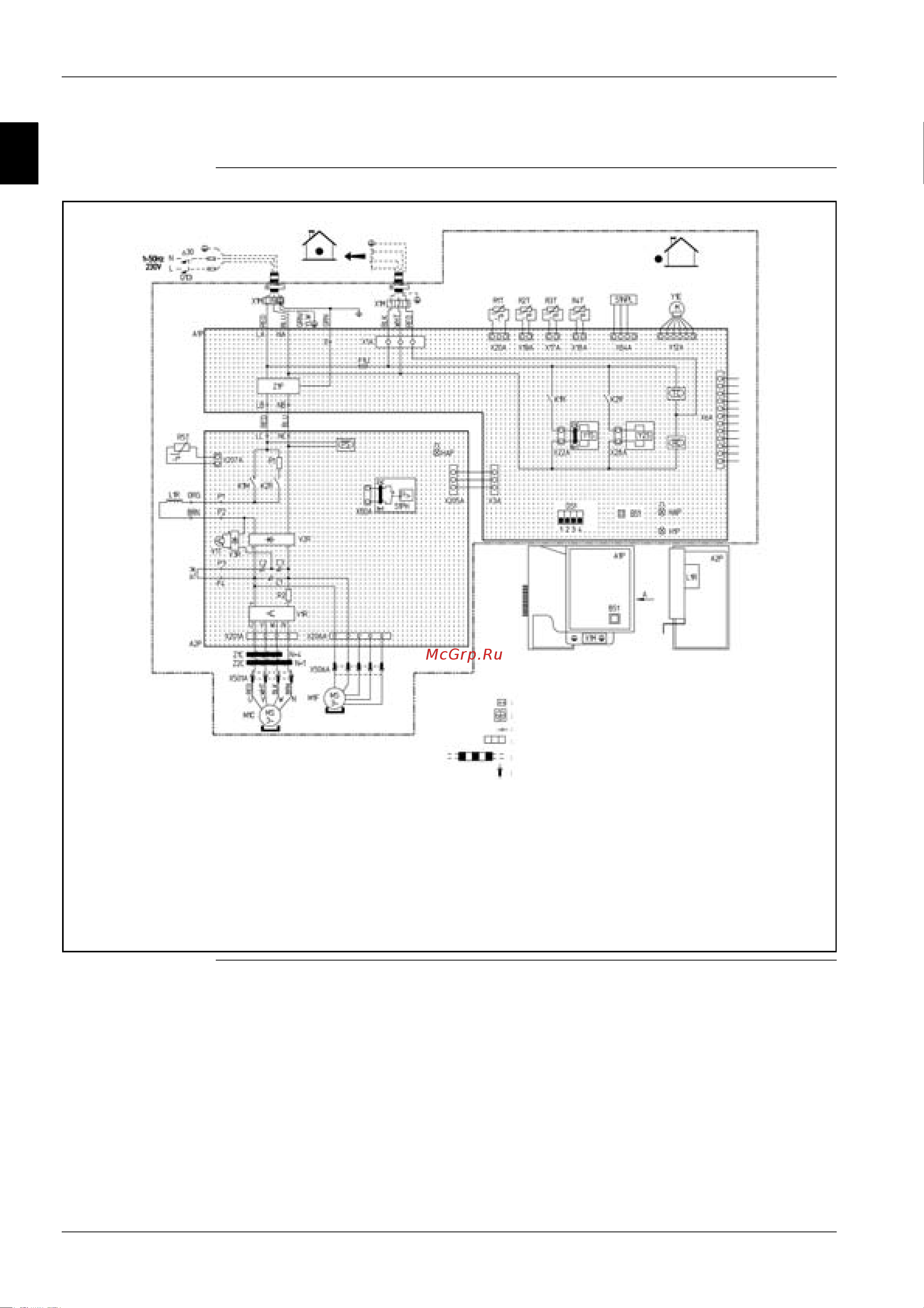

Wiring diagram The illustration below shows the wiring diagram of the unit.
BLK :
BLU :
BRN :
GRN :
ORG :
RED :
WHT :
YLW :
BLACK
BLUE
BROWN
GREEN
ORANGE
RED
WHITE
YELLOW
CONNECTOR
PROTECTIVE EARTH (SCREW)
TERMINAL
TERMINAL
FIELD WIRING
RELAY CONNECTOR
L : LIVE
N : NEUTRAL
EL.COMPO.ASSY FRONT VIEW A
indoor
outdoor
ON
OFF
71 CLASS
NOTE 1
NOTES :
1. REFER TO THE OPTION MANUAL, FOR CONNECTING WIRING TO X6A.
2. CONFIRM THE METHOD OF SETTING THE SELECTOR SWITCHES (DS1)
BY SERVICE MANUAL. WHEN UNIT IS SHIPPED BY FACTORY
ALL SWITCHES ARE SET TO BE OFF.
