Daikin RZQ125B7W1B [250/326] Centralized address setting error uc
![Daikin RZQ125B7W1B [250/326] Centralized address setting error uc](/views2/1794903/page250/bgfa.png)
Error Codes: System Malfunctions ESIE05-03
3–102 Part 3 – Troubleshooting
3
1
3
4
5
4.6 Centralized Address Setting Error (UC)
Remote Controller
Display
UC
Applicable Models All indoor unit models
Method of
Malfunction
Detection
Indoor unit microcomputer detects and judges the centralized address signal according to the
transmission between indoor units.
Malfunction
Decision
Conditions
When the microcomputer judges that the centralized address signal is duplicated
Supposed Causes
P Faulty centralized address setting
P Faulty indoor unit PC board

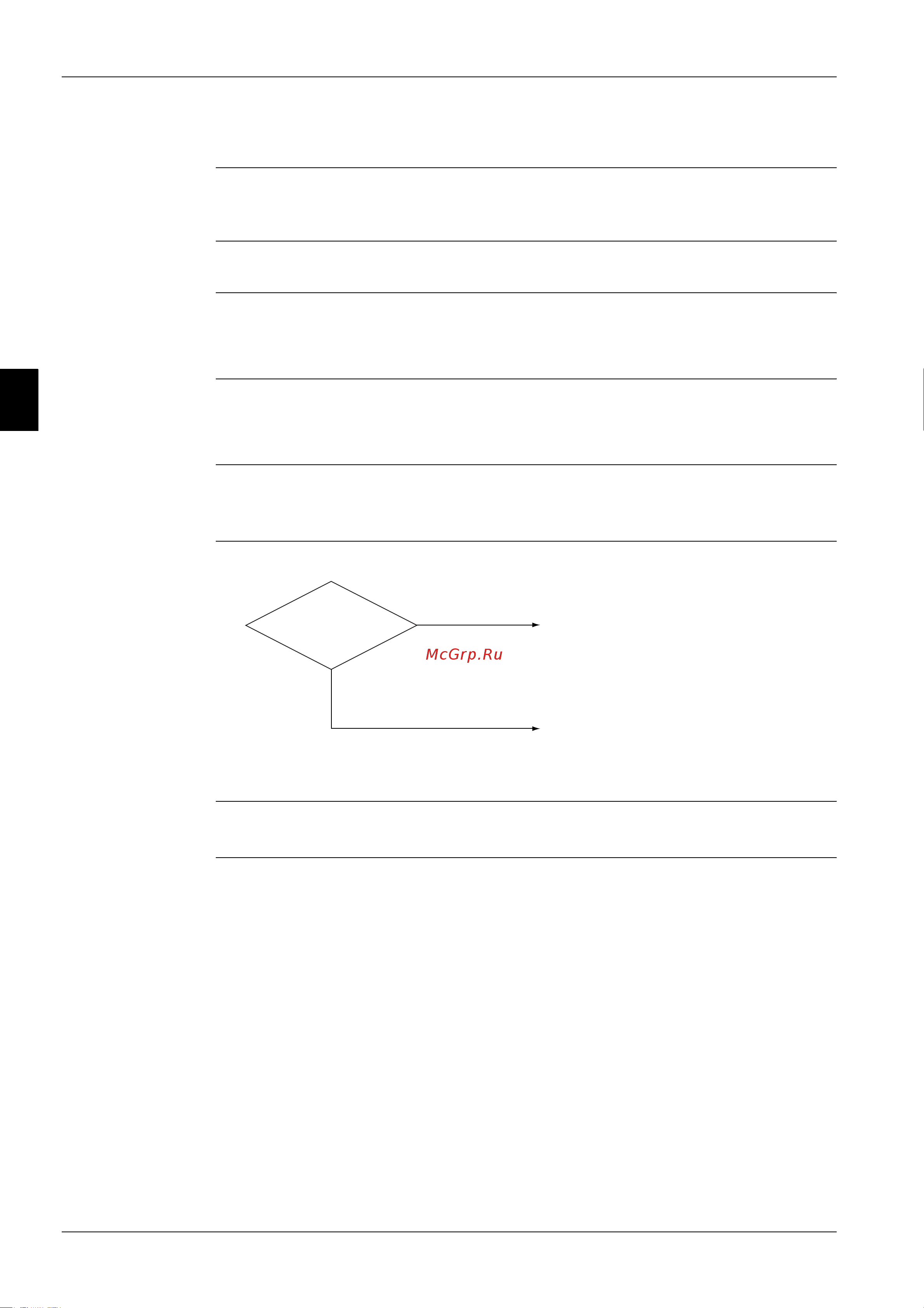

Troubleshooting
Caution Be sure to turn off power switch before connect or disconnect connector, or parts damage may be
occurred.
Are
devices relating to
centralized control connected
to the indoor
unit?
YES
NO
Change the setting so that the centralized
address is not duplicated.
Replace the indoor unit PC board.
ESIE05-03.book Page 102 Wednesday, April 6, 2005 4:09 PM
