General Functionality ESIE05-03
2–20 Part 2 – Functional Description
3
1
2
4
5

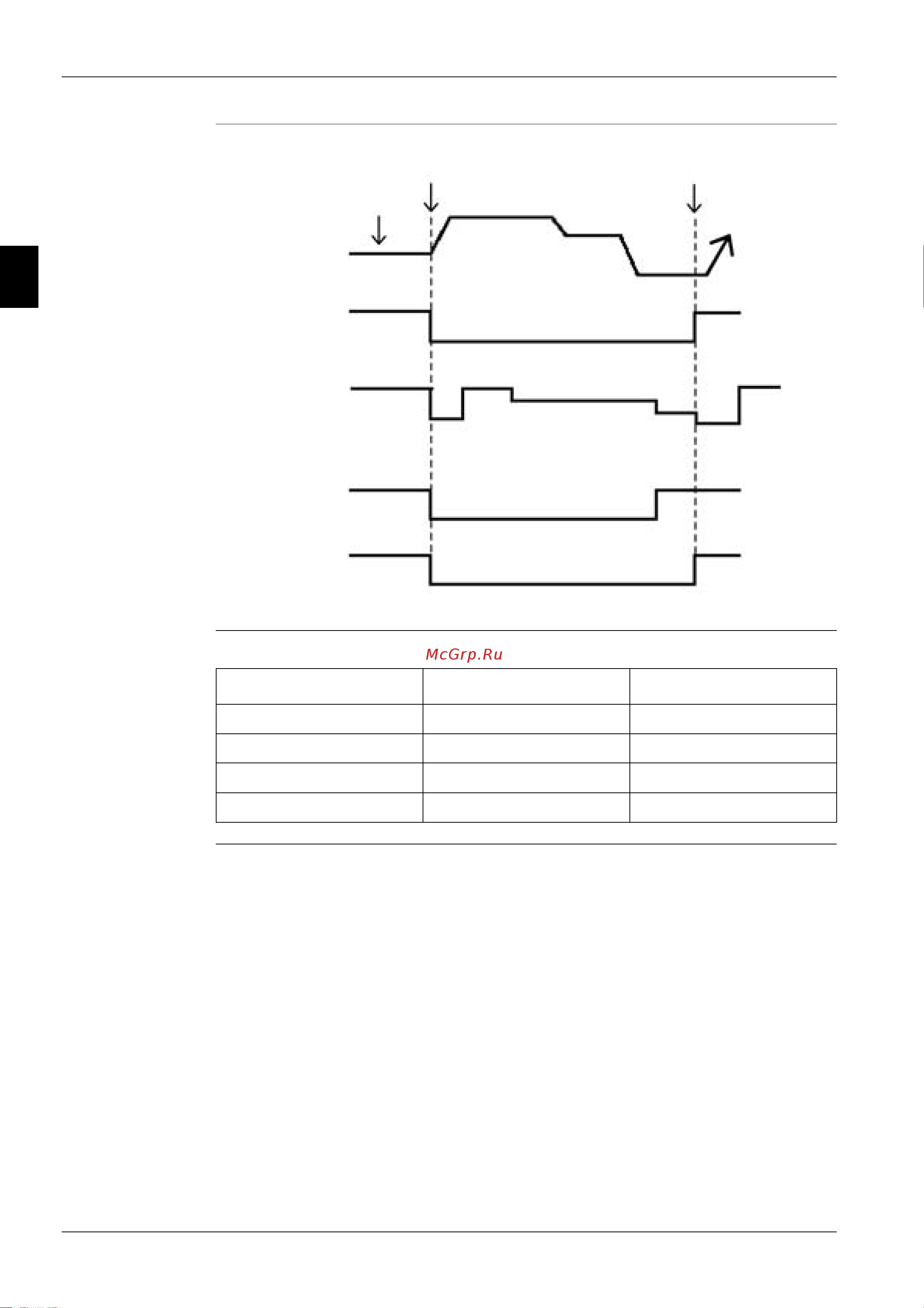

Defrost control
Parameters
Defrosting start
Defrosting complete
Previous control
Compressor
4-way valve
Motorized valve
Outdoor unit fan
Indoor fan
ON
150 pls
ON
ON
A pls
A Hz
B Hz
C Hz
ON
0 pls (15 seconds)
ON
ON
0 pls (5~60 seconds)
(wet protection control)
OFF
OFF
OFF
RZQ71 RZQ100~140
A Hz 162 Hz 155 Hz
B Hz 122 Hz 155 Hz
C Hz 48 Hz 72 Hz
A pls 300 pulses 250 pulses
