ESIE05-03 Introduction
iii
3
4
5

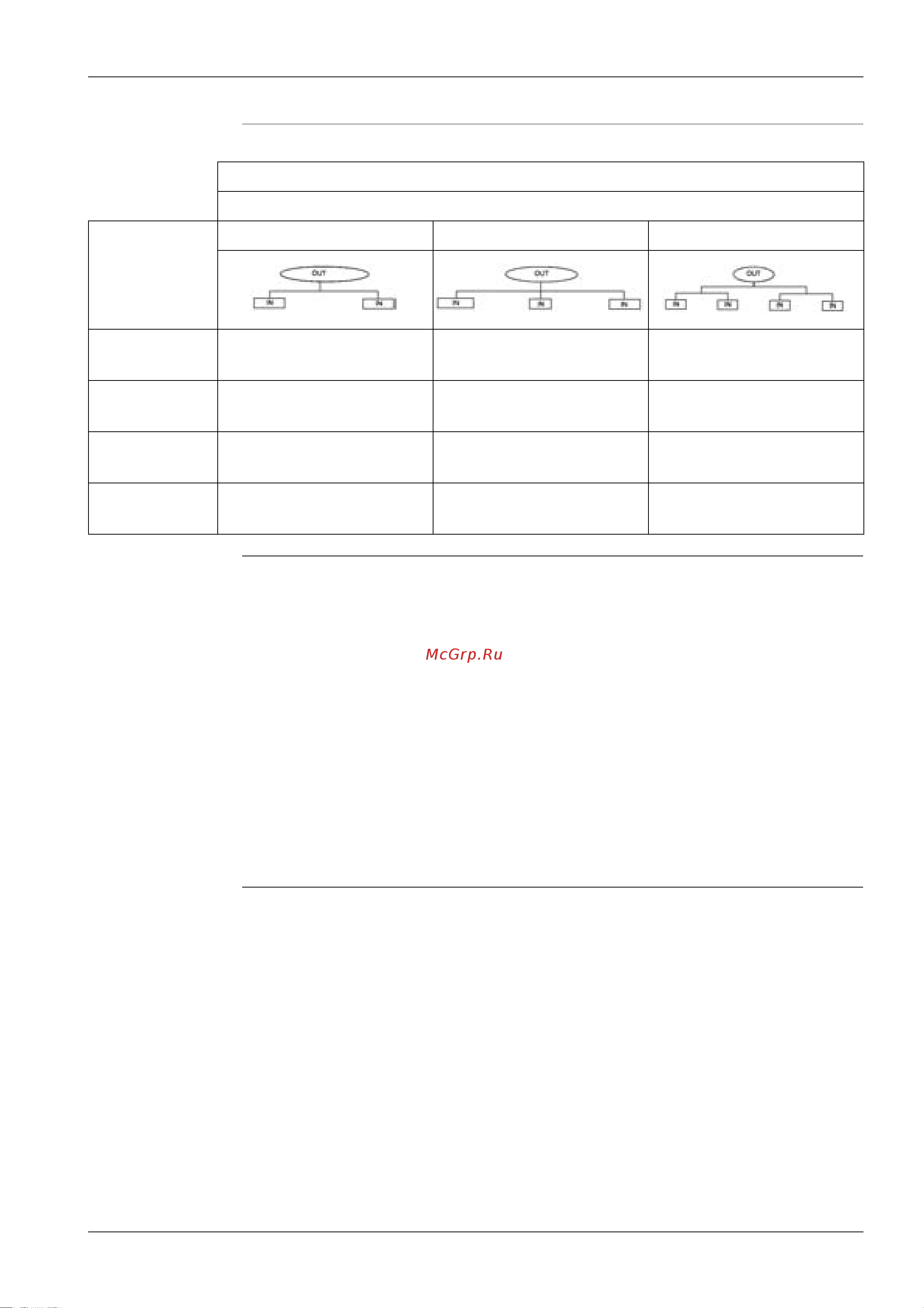

Combination Matrix
Notes: 1 Possible indoor types:
P FCQ35-71
P FFQ35-60
P FHQ35-71
P FBQ35-71
P FUQ71
P FAQ71
2 Individual indoor capacities are not given because the combinations are for simultaneous
operation (=indoor units installed in same room).
3 When different indoor models are used in combination, designate the remote controller that is
equipped with the most functions as the main unit. In note 1 are the indoor units mentioned in order
of the possible function (most functions are on FCQ , less functions are on FAQ).
4 Between brackets are the required Refnet kits mentioned, that are necessary to install the
combination.
Possible indoor combination
Simultaneous operation
Outdoor models Twin Triple Double Twin
RZQ71B8V3B
35-35
(KHRQ22M20TA7)
RZQ100B8V3B
RZQ100B7W1B
50-50
(KHRQ22M20TA7)
35-35-35
(KHRQ127H7)
RZQ125B8V3B
RZQ125B7W1B
60-60
(KHRQ22M20TA7)
50-50-50
(KHRQ127H7)
35-35-35-35
(3 x KHRQ22M20TA7)
RZQ140B7W1B
71-71
(KHRQ22M20TA7)
50-50-50
(KHRQ127H7)
35-35-35-35
(3 x KHRQ22M20TA7)
ESIE05-03.book Page iii Wednesday, April 6, 2005 4:09 PM
