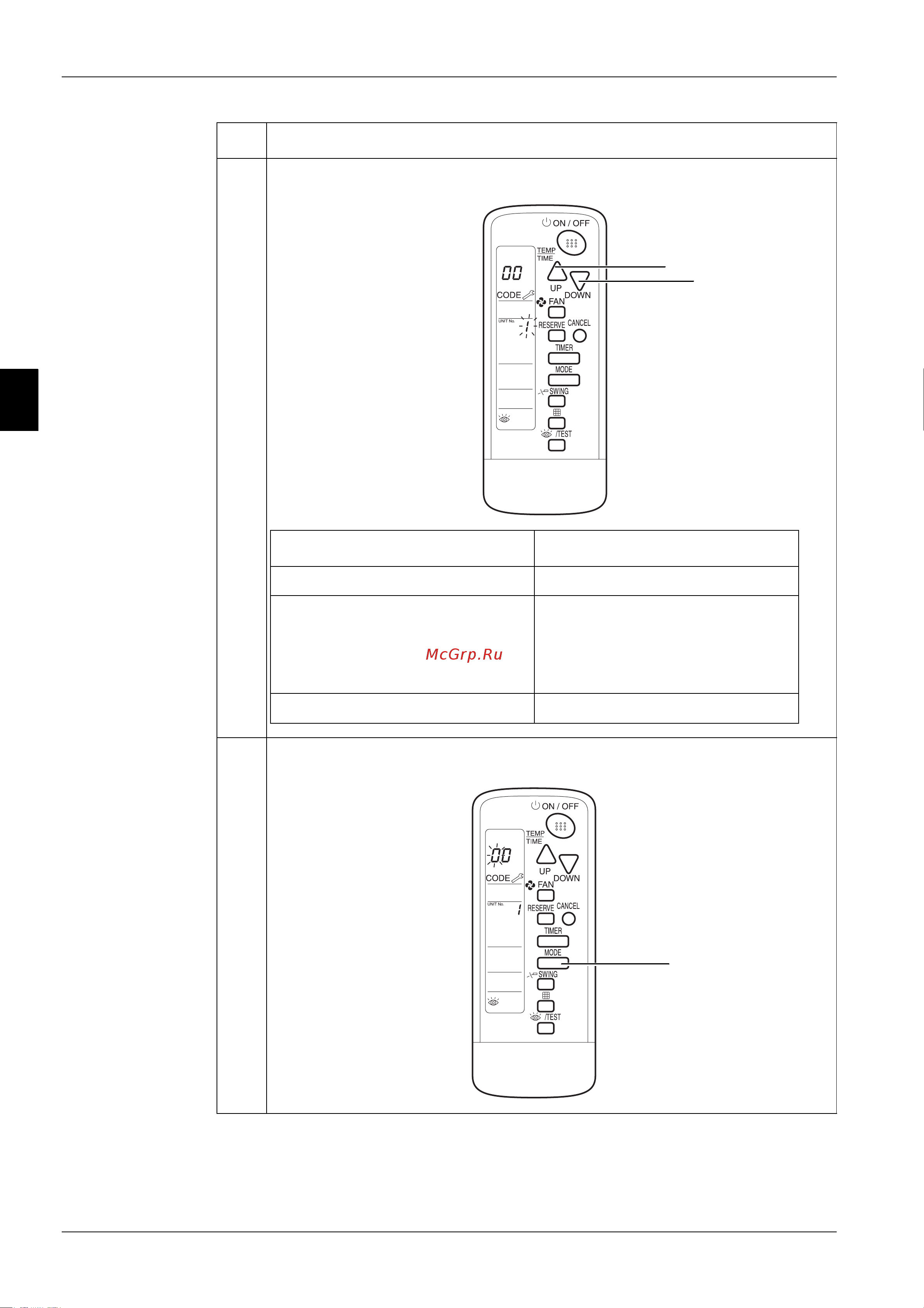

Troubleshooting ESIE05-03
3–28 Part 3 – Troubleshooting
3
1
3
4
5
2 Press the UP or DOWN button and change the UNIT No. until the receiver of the remote
controller starts to beep.
3 Press the MODE selector button.The left “0” (upper digit) indication of the error code
flashes.’
Step Action
If you hear... Then...
3 short beeps Follow all steps below.
1 short beep Follow steps 3 and 4. Continue the
operation in step 4 until you hear a con-
tinuous beep. This continuous beep
indicates that the error code is con-
firmed.
1 continuous beep There is no abnormality.
UP
DOWN
MODE
ESIE05-03.book Page 28 Wednesday, April 6, 2005 4:09 PM
