ESIE05-03 Introduction
ix
3
4
5
P Differences

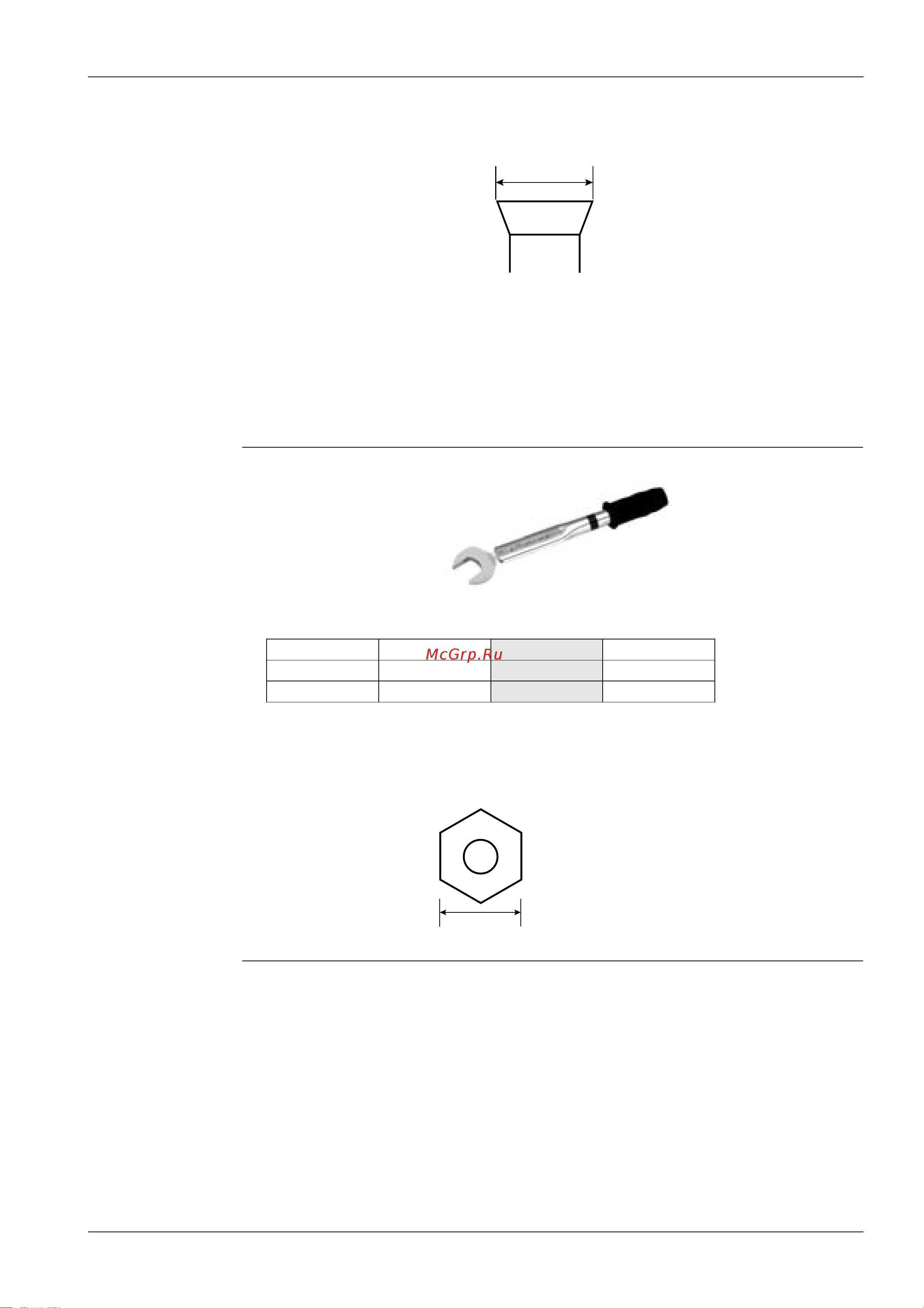

• Change of dimension A
Conventional flaring tools can be used when the work process is changed. (change of work process)
Previously, a pipe extension margin of 0 to 0.5mm was provided for flaring. For R410A air
conditioners, perform pipe flaring with a pipe extension margin of 1.0 to 1.5 mm. (For clutch type only)
Conventional tool with pipe extension margin adjustment can be used.
Torque wrench
P Specifications
• Dimension B Unit:mm
No change in tightening torque
No change in pipes of other sizes
P Differences
• Change of dimension B
Only 1/2", 5/8" are extended
Dimension A
For class-1: R407C
For class-2: R410A
Nominal size Class-1
Class-2 Previous
1/2 24
26 24
5/8 27
29 27
For class-1: R407C
For class-2: R410A
Dimension B
ESIE05-03.book Page ix Wednesday, April 6, 2005 4:09 PM
