ESIE05-03 General Outline: Outdoor Units
Part 1 – System Outline 1–9
3
1
4
5

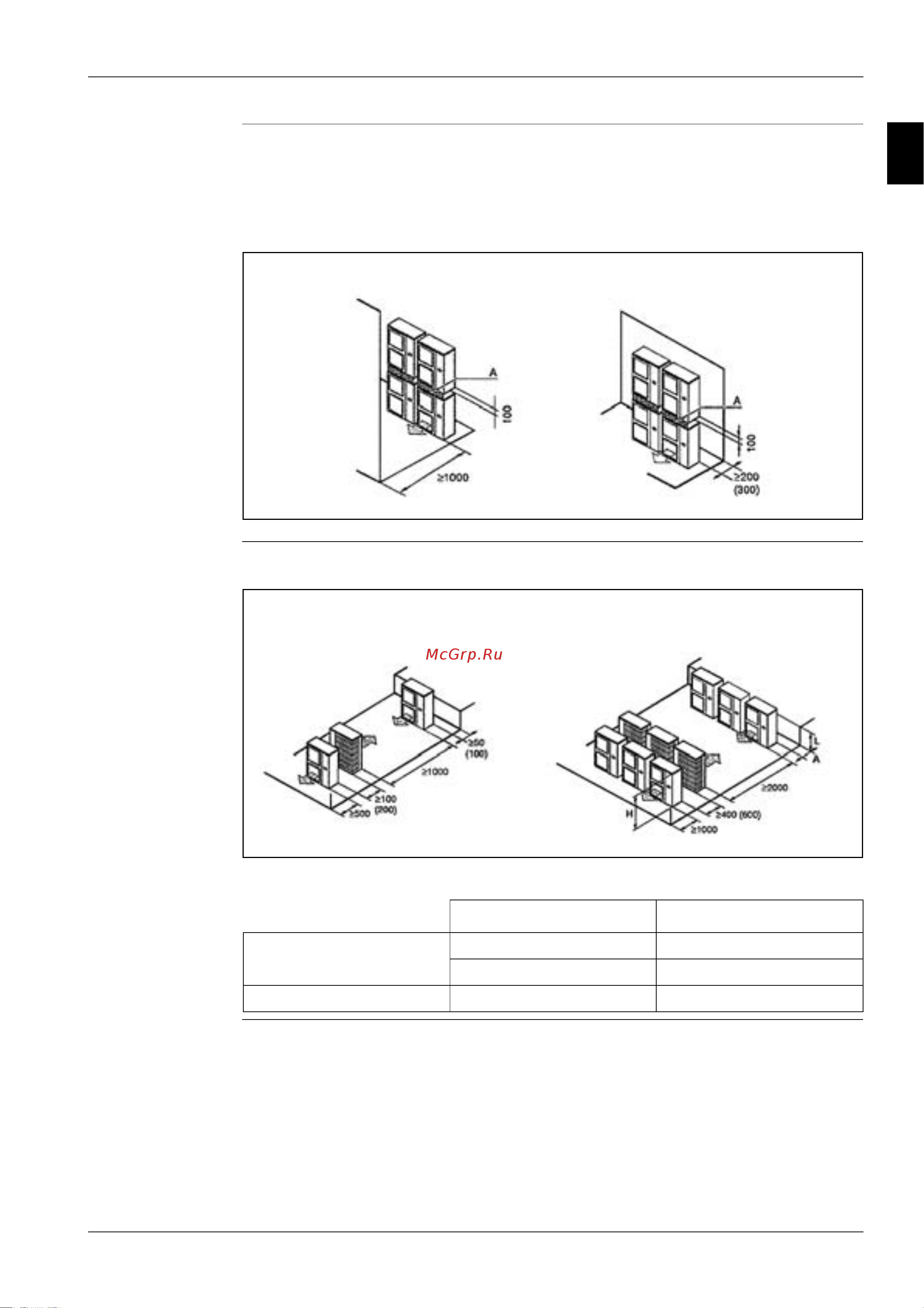

Stacked The illustration below shows the required installation and service space (mm). The values in brackets
are for the 100~140 class.
P Do not stack more than one unit.
P ± 100 mm is required as the dimension for laying the upper outdoor unit’s drain pipe.
P Get the portion A sealed so that air from the outlet does not bypass.
Multiple rows The illustration below shows the required installation and service space (mm). The values in brackets
are for the 100~140 class.
Relation of dimensions of H, A and L are shown in the table below.
Obstacles exist in front of the outlet side
Obstacles exist in front of the air inlet
LA
L ≤ H
0 < L ≤ 1/2H 150 (250)
1/2H < L 200 (300)
H < L installation impossible
Installation of one unit per row Installing multiple units (2 units or more)
in lateral connection per row
ESIE05-03.book Page 9 Wednesday, April 6, 2005 4:09 PM
