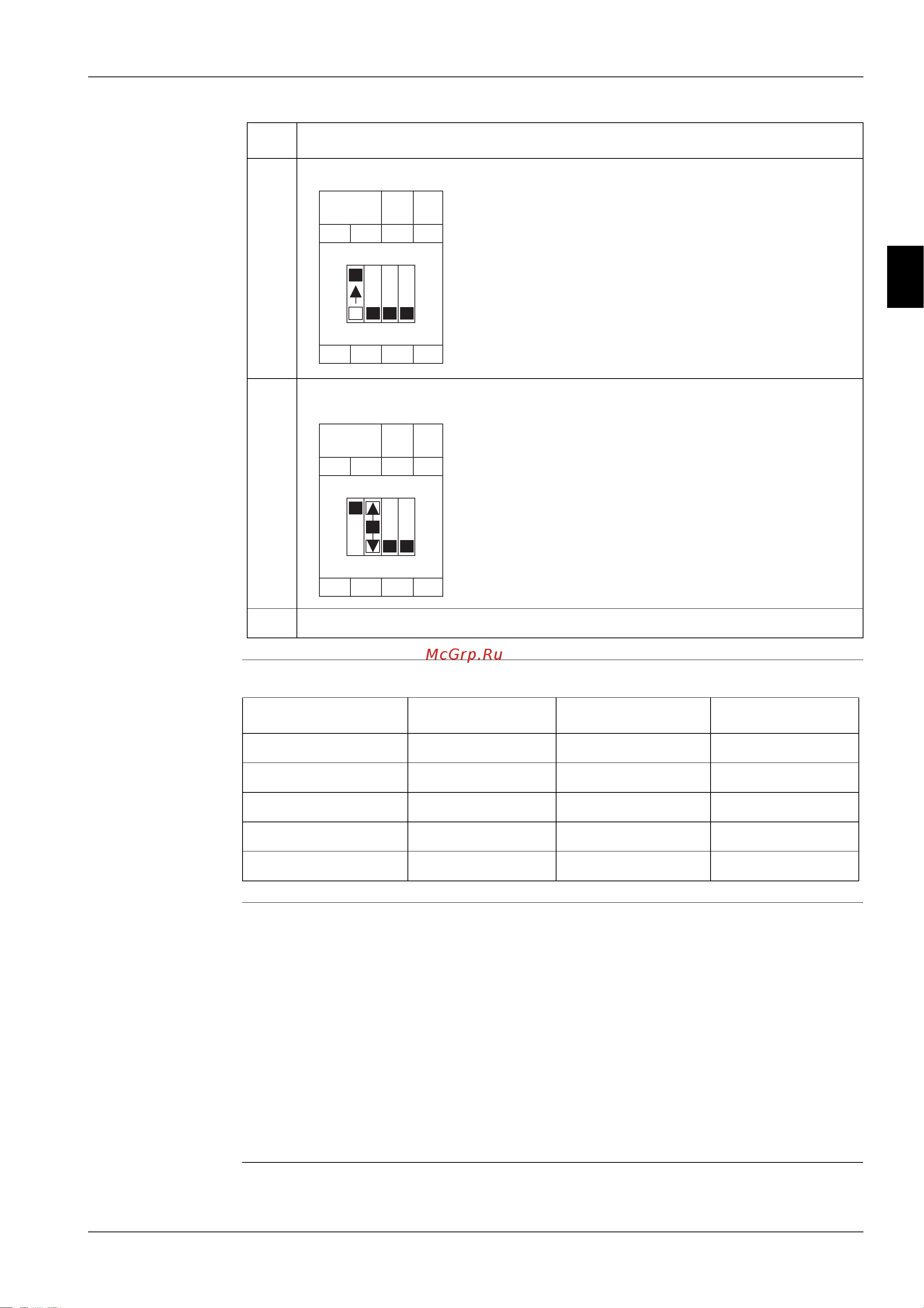

ESIE05-03 General Functionality
Part 2 – Functional Description 2–7
3
2
4
5
1
Active components
Additional info
P During emergency operation, do not attempt to operate the equipment from the remote controller.
The remote controller shows "88" while the emergency operation is active on the indoor unit
P If a safety device is activated during emergency, all actuators are turned OFF
P In cooling, the unit runs for 20min and then stops for 10min in order to avoid freeze-up of the indoor
coil.
P In heating, defrost is activated for 3 minutes once every hour.
P Emergency operation can not be carried out when the PCB board itself is defective.
P Be sure to set the emergency switch on both the outdoor and indoor unit.
P The unit will not regulate the temperature during emergency operation.
P Change the position of the emergency switch only when the power is turned off.
3 Switch ON the emergency switch on the outdoor PCB.
4 Set the emergency switch on the outdoor PCB to the forced mode you prefer (Cooling or
Heating).
5 Turn ON the power supply.
Step Action
EMERGENCY
ON COOL
OFF
1234
HEAT
EMERGENCY
ON COOL
OFF
1234
HEAT
Component Forced cooling Forced heating Forced defrosting
Compressor ON ON ON
4-way valve OFF ON OFF
Outdoor unit fan H fan speed H fan speed OFF
Indoor unit fan H fan speed H fan speed H fan speed
Drain pump ON ON ON
ESIE05-03.book Page 7 Wednesday, April 6, 2005 4:09 PM
