D-Link DFL-2400 [102/112] Set up time for real time data update

DFL-2100/DFL-2400 Intrusion Detection System User Manual

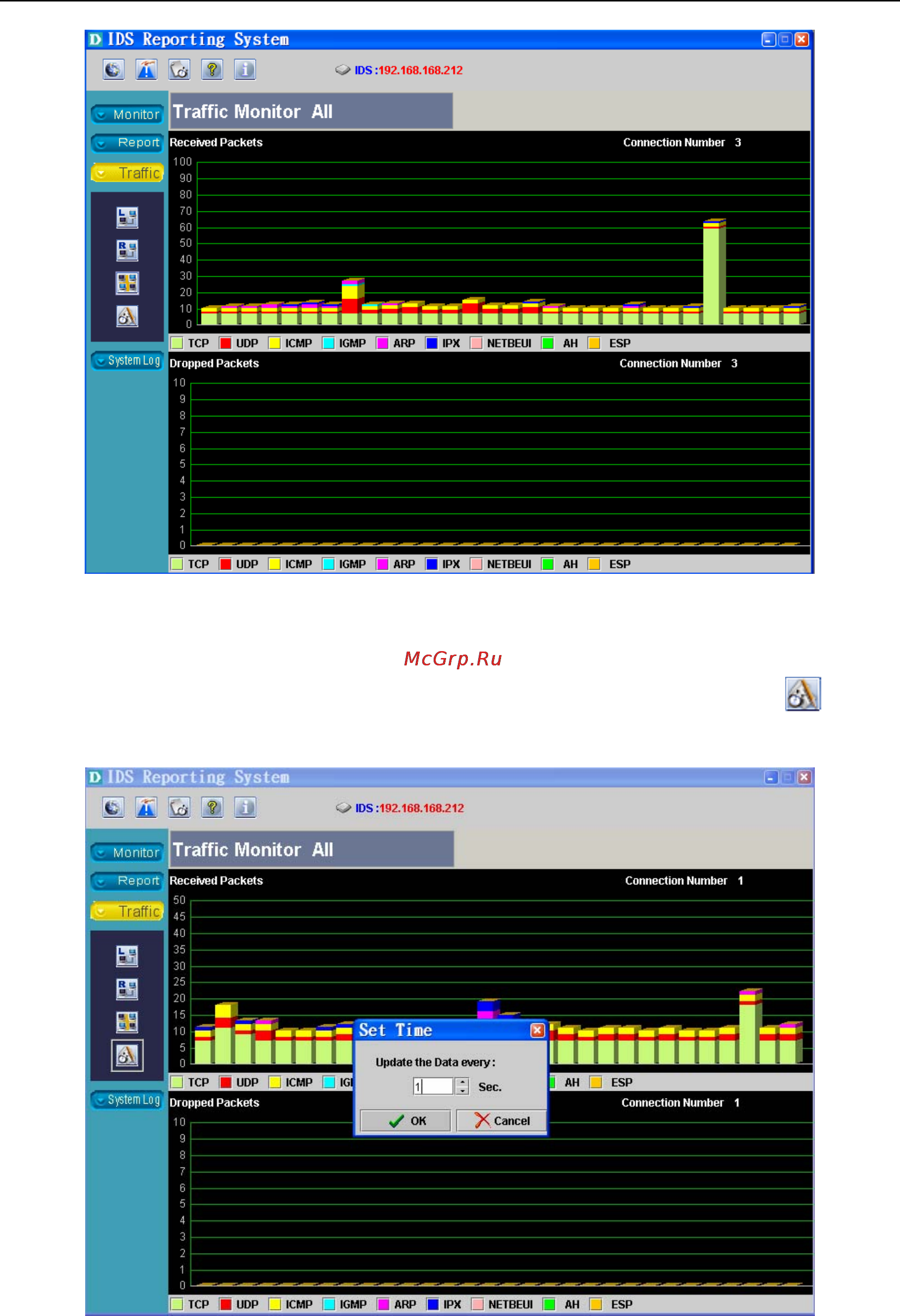

Figure 8-26: Real-time traffic monitoring

Set up time for real-time data update

The system manager can set up data-update time for flow monitoring. After button

is clicked, a dialogue box of time setup would appear for setting.

Figure 8-27: Set up data update time for real-time traffic monitoring
