DFL-2100/DFL-2400 Intrusion Detection System User Manual

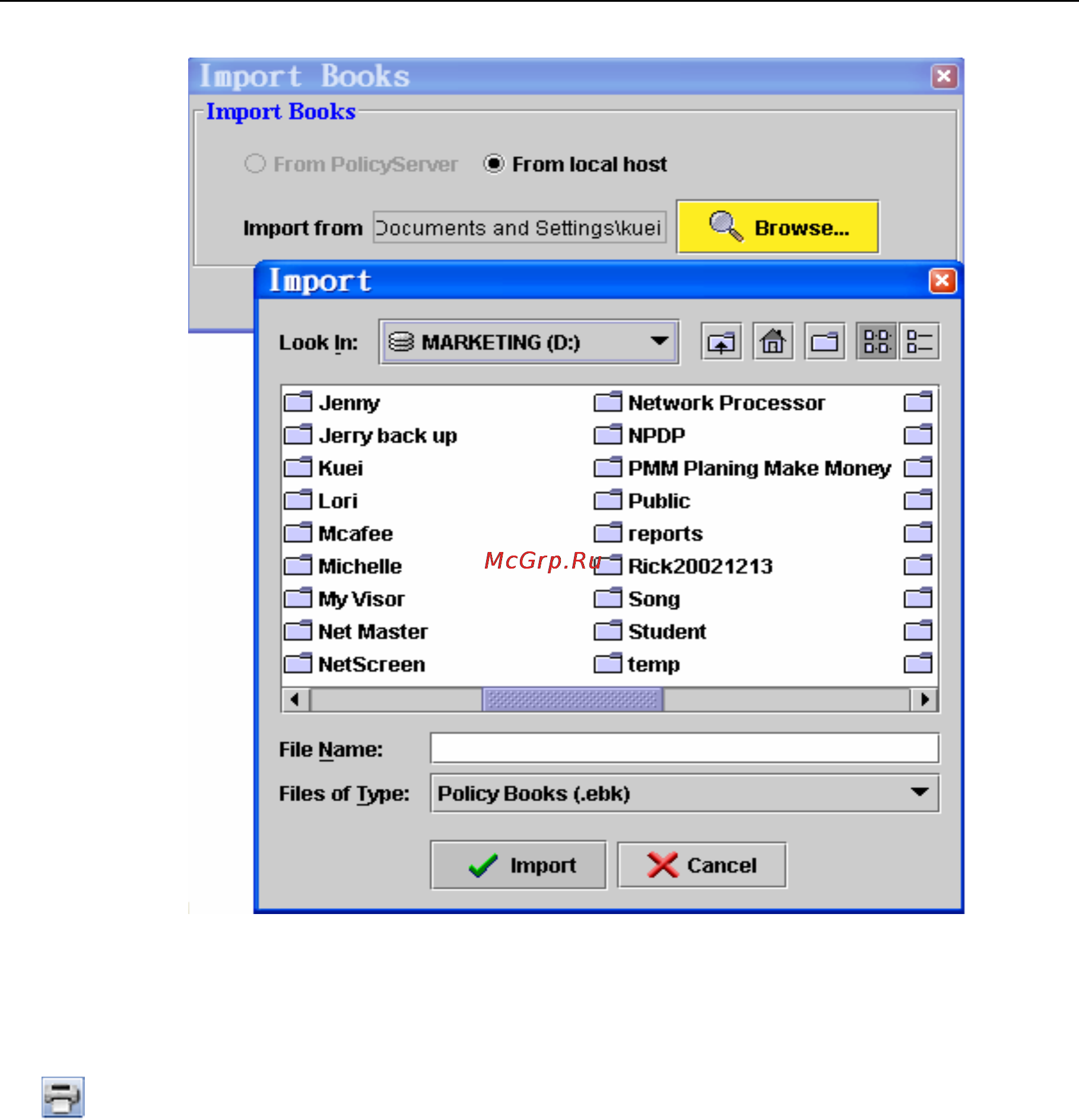

Figure 4-16: Import policy from local host dialog

Print Books

Another way to back up books is to print them out in papers. When the “Print” button

on the toolbar is pressed, the current loaded book will be prepared to print out. The

print preview screen as the following figure will show up. Click “Print” to print it out,

otherwise click “Cancel” to close this screen.
