D-Link DFL-2400 [85/112] Delete a schedule

DFL-2100/DFL-2400 Intrusion Detection System User Manual

Modify a Schedule

1. Click Schedule Book button to switch to the Schedule Book page

2. Click Modify button

or right-click on the Book Table and select Modify. The

following dialog appears.

3. Modify any of these fields as you wish.

4. Click Modify to update this Schedule or Cancel to remain unchanged.

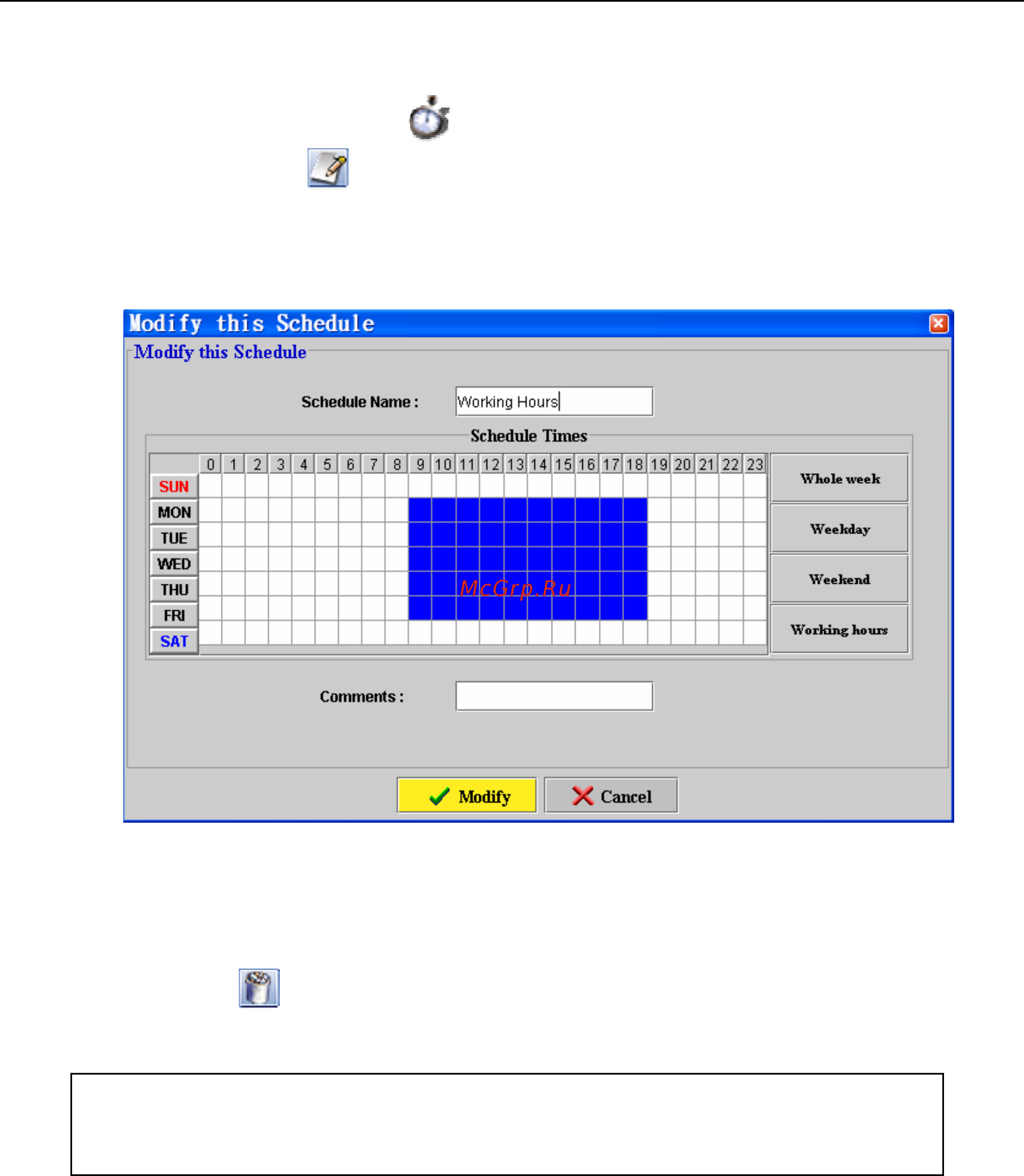

Figure 7-8: ”Modify this Schedule” Dialog

Delete a Schedule

Select the entries to be deleted on the Schedule Book Table and click the

Delete button

or right-click on the table and select “Delete” from the pop-up

menu.

Note You cannot delete a Schedule that is currently referenced by

the Policy Rules.
