D-Link DFL-2400 [71/112] The tcp tab

DFL-2100/DFL-2400 Intrusion Detection System User Manual

The TCP Tab

The TCP tab consists parameters for TCP packet header field value settings:

1. Source, Destination Port: Source and Destination port number

2. TCP Size: TCP packet total size.

3. TCP Header size: TCP header size.

4. Checksum: TCP checksum field.

5. SEQ: TCP sequence number.

6. ACK: TCP acknowledgement number.

7. URG Pointer: TCP urgent pointer value.

8. Window size: TCP window value.

9. TCP Flags: URG-urgent, ACK-acknowledgement, PSH-push, RST-reset, SYN-

synchronization, FIN-finish.

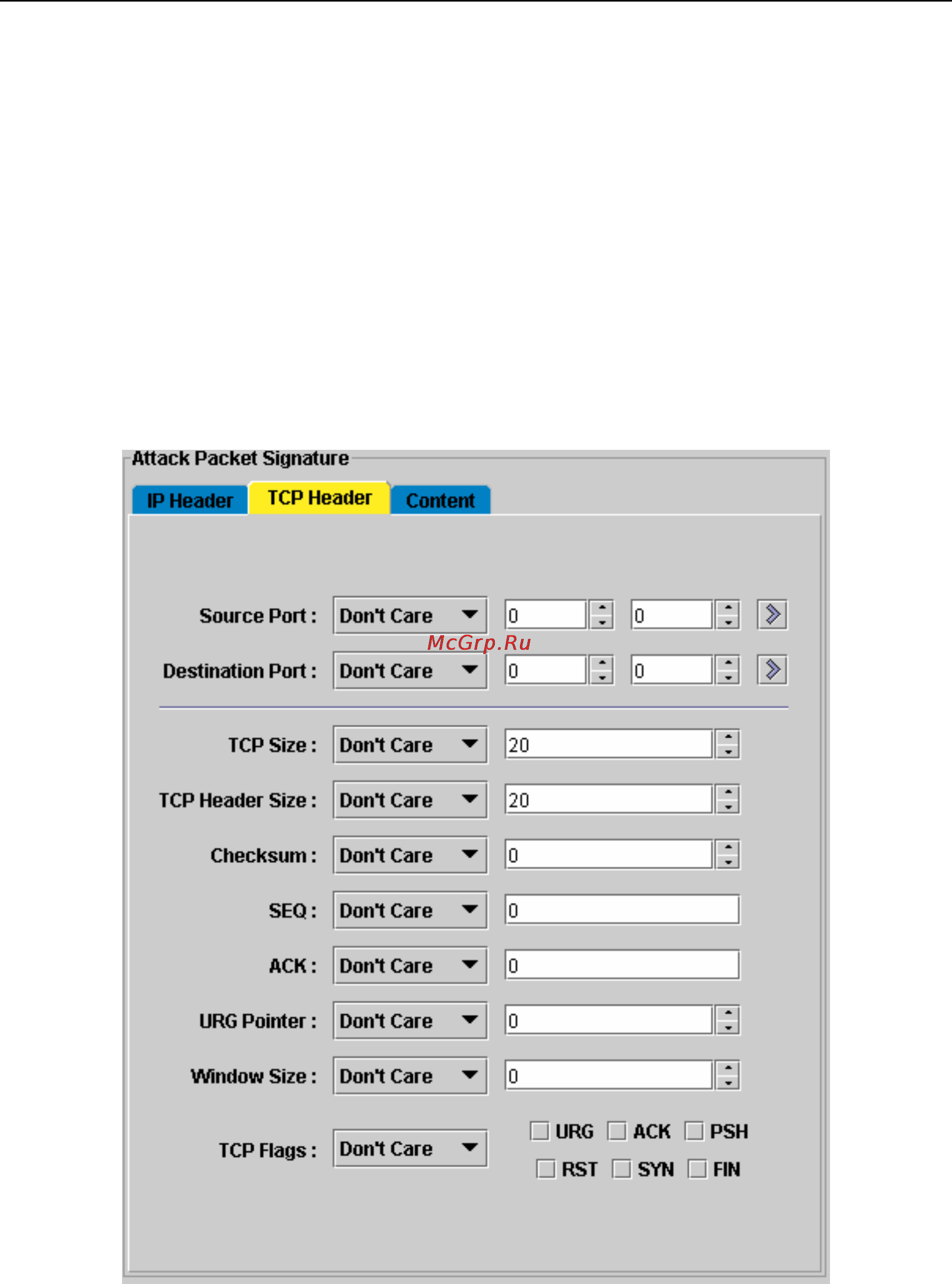

Figure 6-10: The ”TCP Tab”
