D-Link DFL-2400 [34/112] Figure 3 1 set policy server sample

DFL-2100/DFL-2400 Intrusion Detection System User Manual

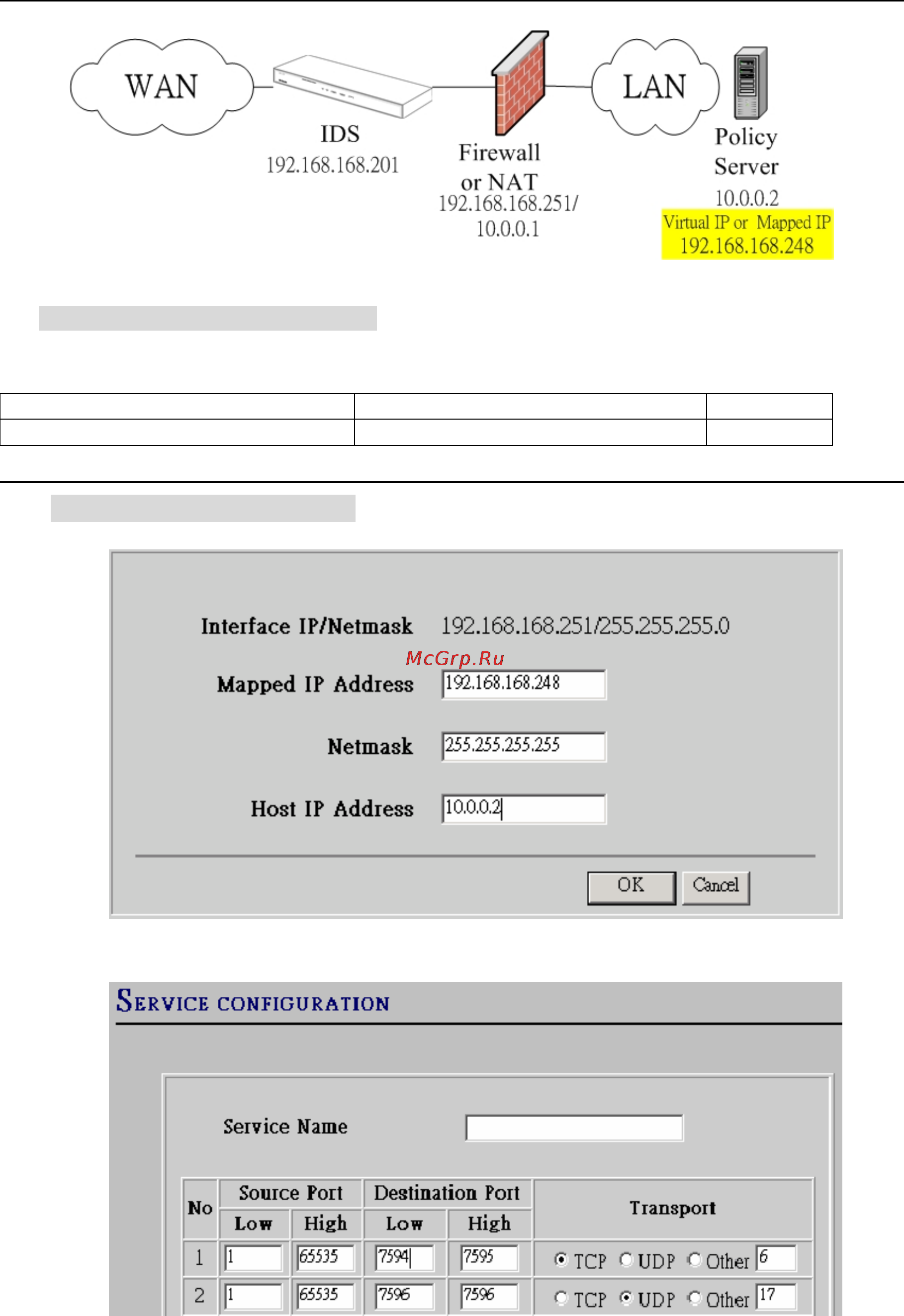

Figure 3-1: set policy server sample

>>set psserver ip 192.168.168.248

The Firewall or NAT must reconfigure Port Mapping as :

192.168.168.248:7595 10.0.0.2:7595 TCP

192.168.168.248:7596 10.0.0.2:7596 UDP

Port 7595 and 7596 are private ports for DFL-2100/DFL-2400 Management System.

Firewall example: NetScreen

Figure 3-2: set policy server virtual IP sample

Figure 3-3: set private ports (service) for Policy Server
