DFL-2100/DFL-2400 Intrusion Detection System User Manual
3
0
DFL-2100/DFL-2400 Management System Main Screen
The DFL-2100/DFL-2400 Management System main screen consist three windows:
IDS Tree: A tree-view of all the DFL-2100/DFL-2400 devices handled by the DFL-
2100/DFL-2400 Policy Server you are current connected to. Tree-view Icons are
described below.
Books Table: A table based setting environment for DFL-2100/DFL-2400. It consists five
pages: Policy Book, Service Book, Address Book, Schedule Book, and Group Book.
We will describe these books detail in the following chapters.
Tool Bar: It consists all of the function buttons for managing DFL-2100/DFL-2400.

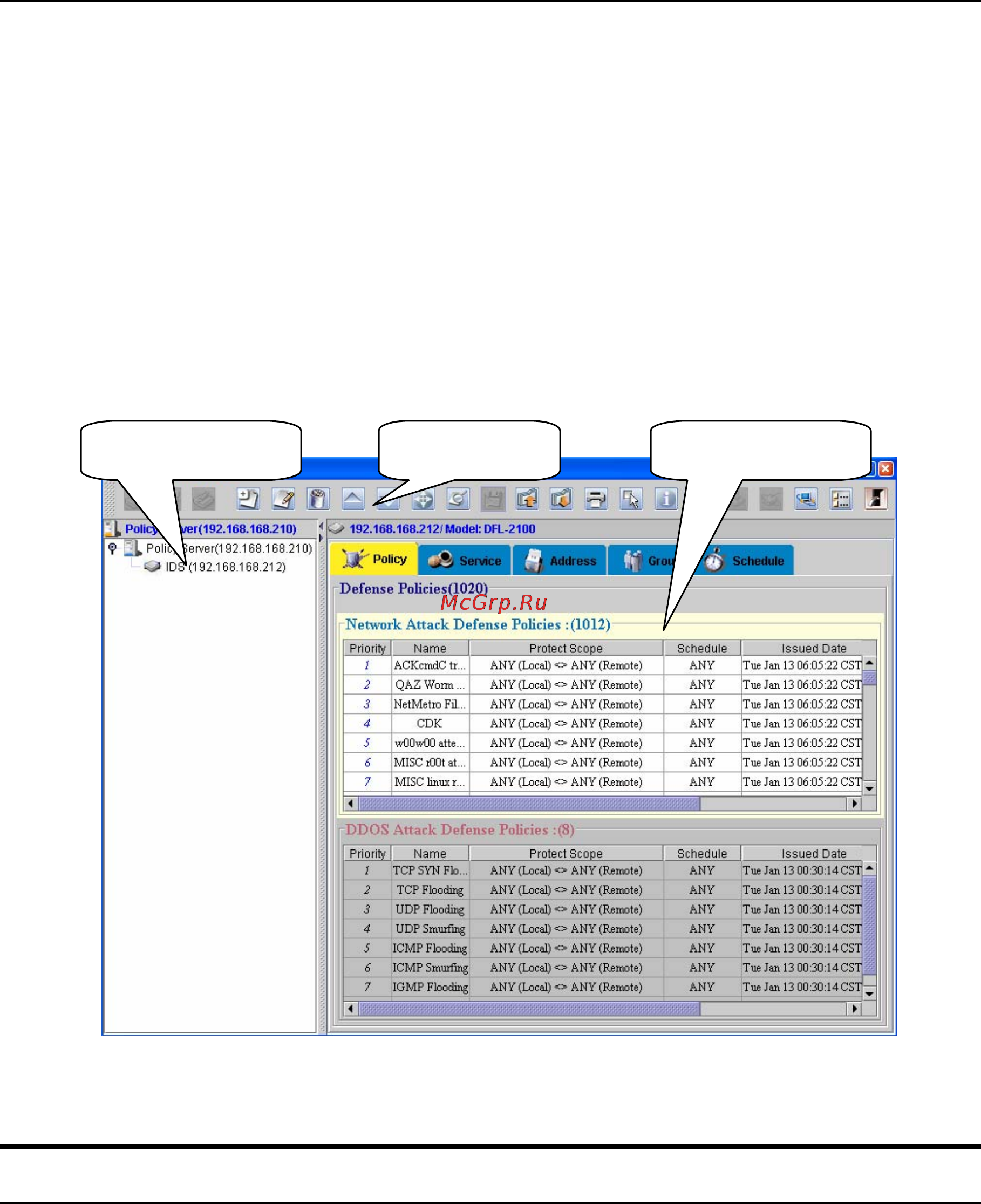

Figure 4-2: DFL-2100/ DFL-2400 Management System Main Screen
Manage DFL-2100/DFL-2400
The DFL-2100/DFL-2400 IDS Management System can management multiple DFL-
2100/DFL-2400s. To manage a DFL-2100/DFL-2400, you must first add the DFL-
2100/DFL-2400 device to the DFL-2100/DFL-2400 IDS Management main screen. The
device will be added to the IDS Tree of the tree-view window. After adding one or more
DFL-2100/DFL-2400s to the IDS Tree, you can now load them to the DFL-2100/DFL-2400
IDS Management System and set up their Policy Rules and Books. Double click on one of
the tree-node icons then the DFL-2100/DFL-2400 device specified by this node will be
loaded and its Books will be shown in the Book Table window.
IDS Tree Books Table Tool Bar
