D-Link DFL-2400 [81/112] Delete an address

DFL-2100/DFL-2400 Intrusion Detection System User Manual

Modify an Address

1. Click Address Book button to switch to the Address Book page.

2. Click Modify button

or right-click on the Book Table and select Modify.

The following dialog appears.

3. Modify any of these fields as you wish.

4. Click Modify to update this Address or Cancel to remain unchanged.

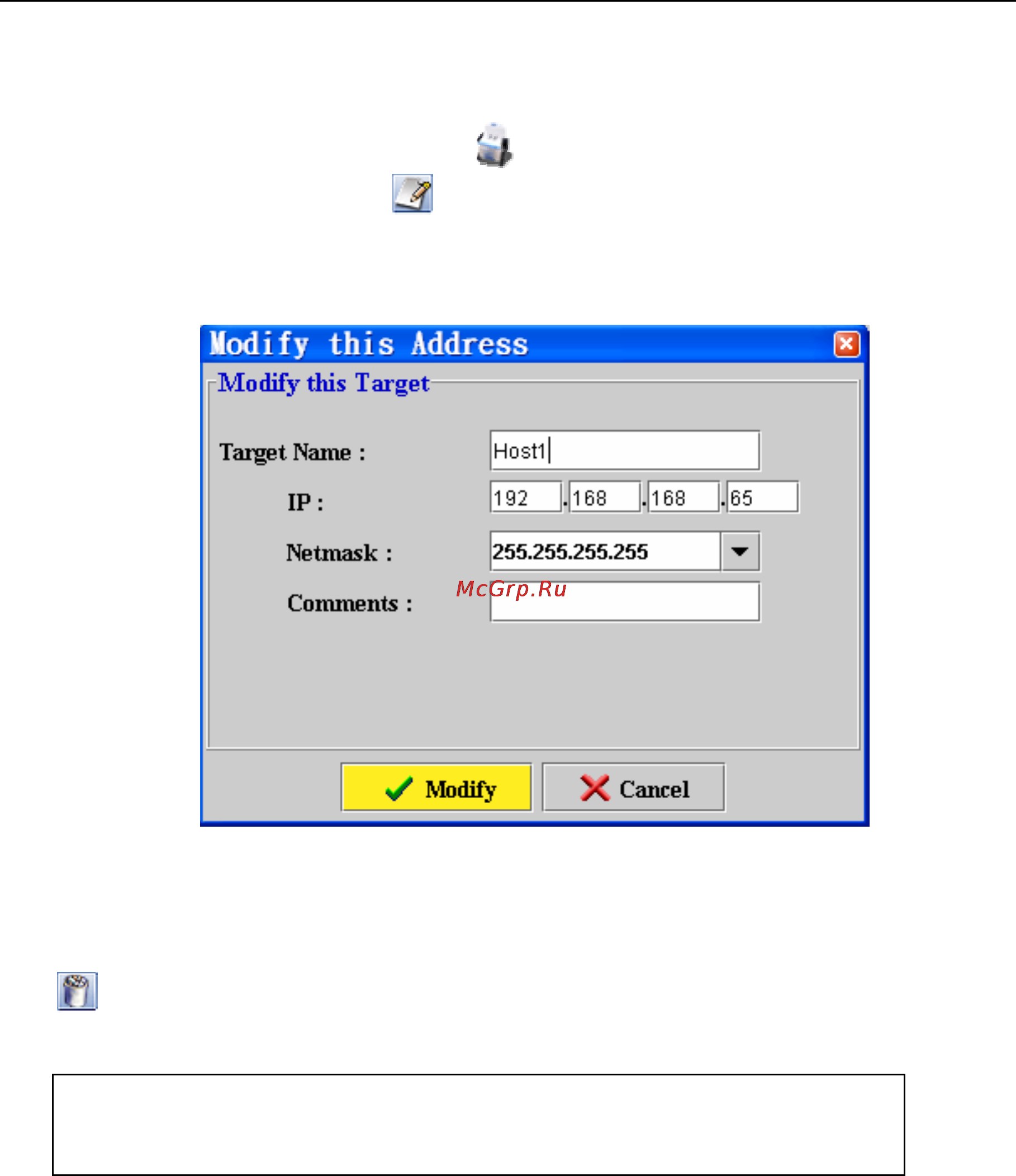

Figure 7-4: ”Modify an Address” Dialog

Delete an Address

Select the entries to be deleted on the Address Book Table and click the Delete button

or right-click on the table and select “Delete” from the pop-up menu.

Note You cannot delete an Address that is currently referenced by the

Policy Rules.
