DFL-2100/DFL-2400 Intrusion Detection System User Manual
43
Load latest attack pattern
The policies are the most important information in the DFL-2100/ DFL-2400
Management System. Policies indicate to DFL-2100/DFL-2400 for how to detect an attack
and how to response when an attack is detected. To begin using your DFL-2100/DFL-2400,
you need to load the latest defense policies.
1. Select “Add” button or right-click on the Network attack Defense
Policies window to add new policies.

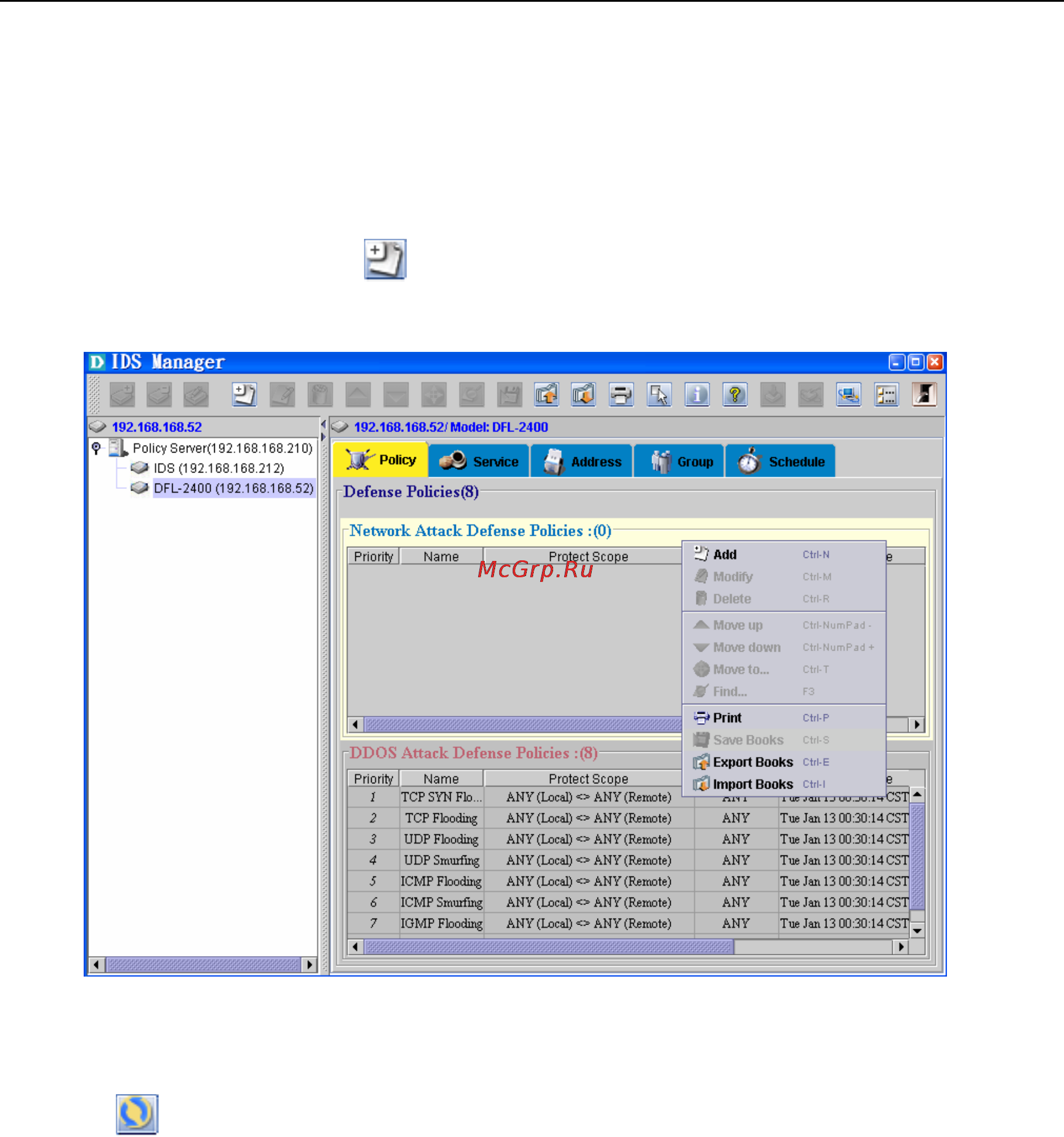

Figure 5-2: Add new Policy
2. There is a default policy database on the DFL-2100/DFL-2400 Policy
Server, administrator must select “Update latest attack pattern” button
to update latest pattern from Administrator Utility CD ~/Policy Server/
PolicyDB/ policyXXX.ptn.
3. After register, DFL-2100/
DFL-2400 Management System will check the
update server for latest pattern.
