DFL-2100/DFL-2400 Intrusion Detection System User Manual
33
DFL-2100/DFL-2400 configure and setting
Once a DFL-2100/DFL-2400 has been added in the IDS tree, double click the icon
in the tree-view to load the contents of this DFL-2100/DFL-2400 device.
DFL-2100/DFL-2400 Device Information
To see the information of the DFL-2100/DFL-2400 device you have loaded, and click
preference/system information button
on the Tool Bar. The following dialog appears.

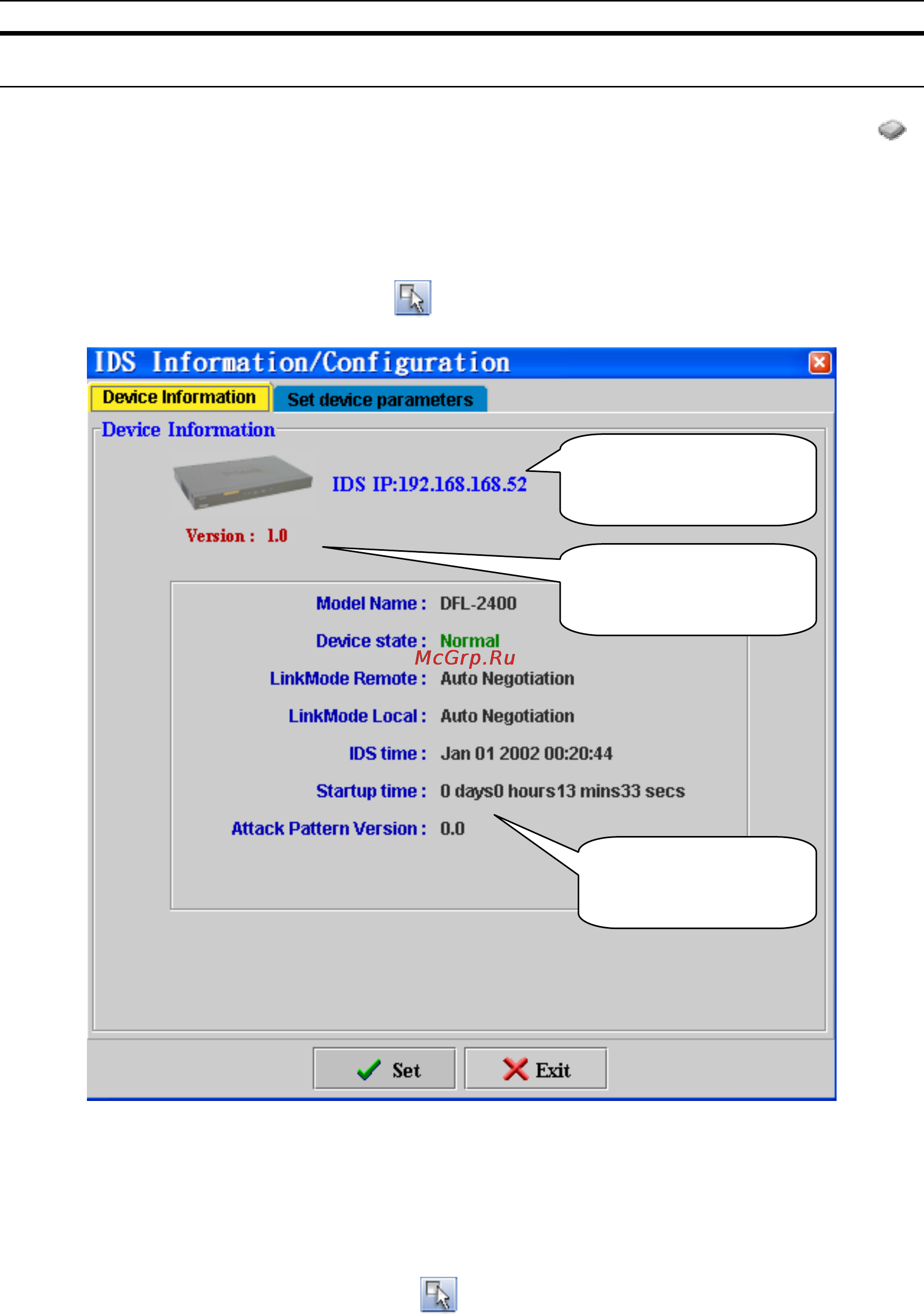

Figure 4-6: ”DFL-2100/DFL-2400 Device Information” Dialog
Setting DFL-2100/DFL-2400 parameters
With getting the information of the DFL-2100/DFL-2400 device at last section, you can
set DFL-2100/DFL-2400 device some parameters at same button. Click
preference/system information button
on the Tool Bar and select “set device
parameters” Tab. The following dialog appears.
There are five parameters can be set.
1. Maximum ping number per second.
2. TCP session timeout times
Current DFL-
2100/DFL-2400 IP
DFL-2100/DFL-2400
version
Status of this DFL-
2100/DFL-2400
