D-Link DFL-2400 [45/112] Add new user

DFL-2100/DFL-2400 Intrusion Detection System User Manual

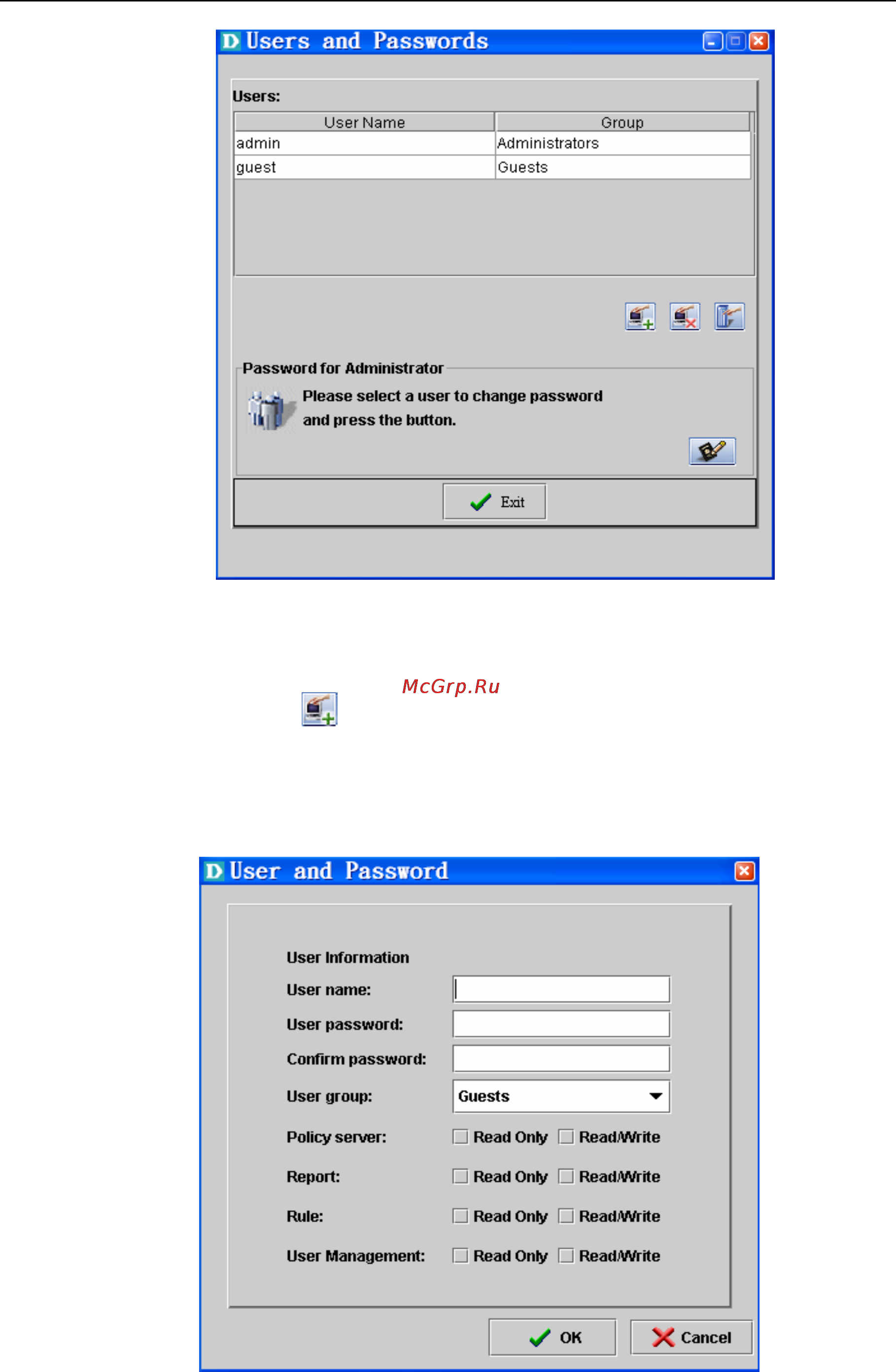

Figure 4-8: User Manage Window

Add new user

1. Click Add User button on the dialog. The following dialog appears.

2. Enter the User Name, User password.

3. Confirm the password.

4. Select a user group.

5. Give the Read / Write permission about policy service, report service and user

management.

Figure 4-9: Add New User Dialog
