D-Link DFL-2400 [74/112] The igmp tab

DFL-2100/DFL-2400 Intrusion Detection System User Manual

The IGMP Tab

The IGMP tab consists parameters for IGMP packet header field value settings:

1. Type: IGMP type field.

2. Rest: IGMP max response time field.

3. ID: IGMP identification value

4. Packet Size: IGMP packet total size.

5. Checksum: ICMP checksum field.

6. Group Address: IGMP group address value.

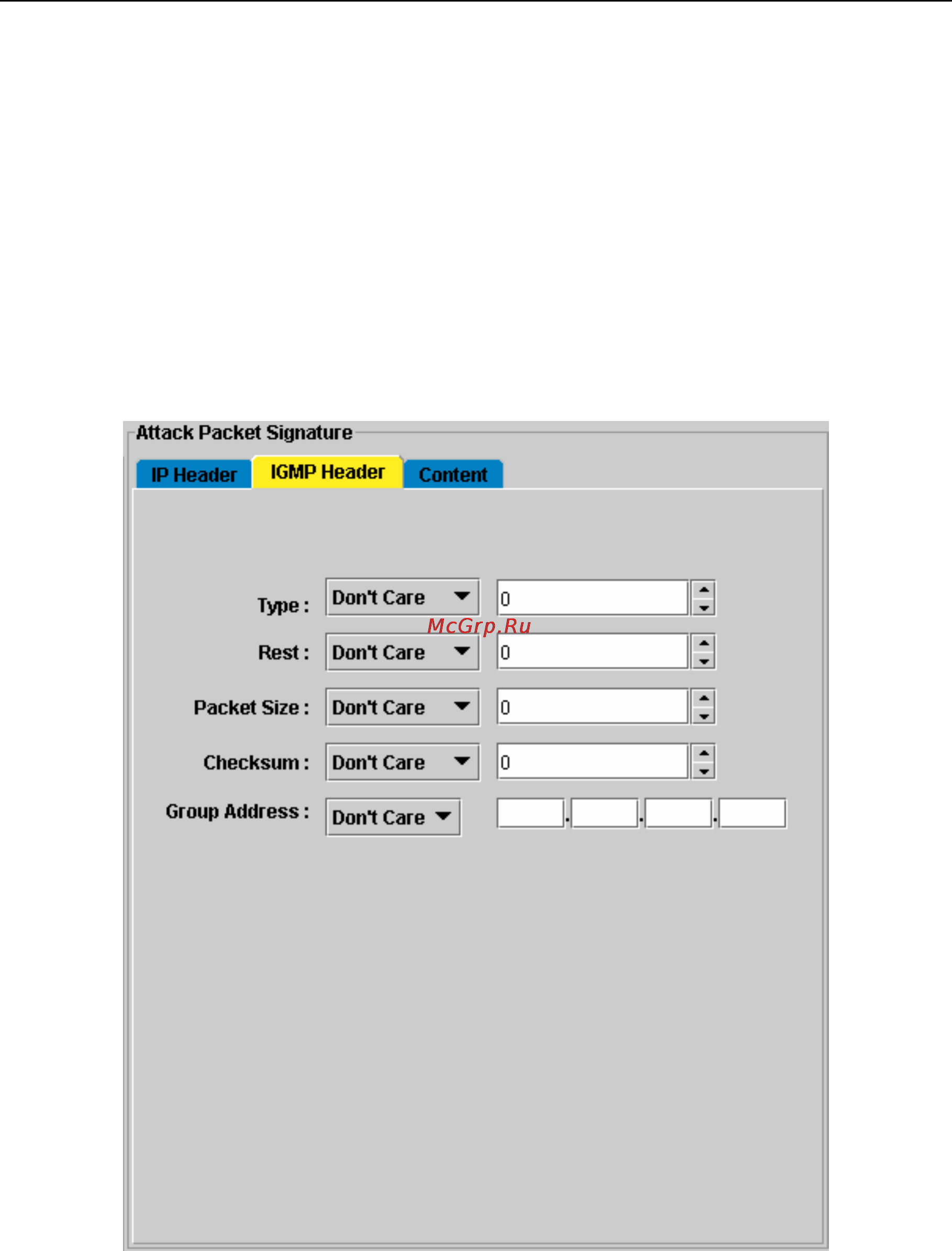

Figure 6-14: The ”IGMP Tab”.
