DFL-2100/DFL-2400 Intrusion Detection System User Manual
79
Network Attack Report
When the system manager clicks “Report” button, DFL-2100/ DFL-
2400 IDS Reporting System will provide review, inquiry and analysis functions of
network attacks. The system manager then selects “Report Form”
button to open
“Report Inquiry Screen” (refer to Figure 8-4). User will select a needed report form and
inquiring time and then click “Generate Report” to get needed network attacks or
analysis.

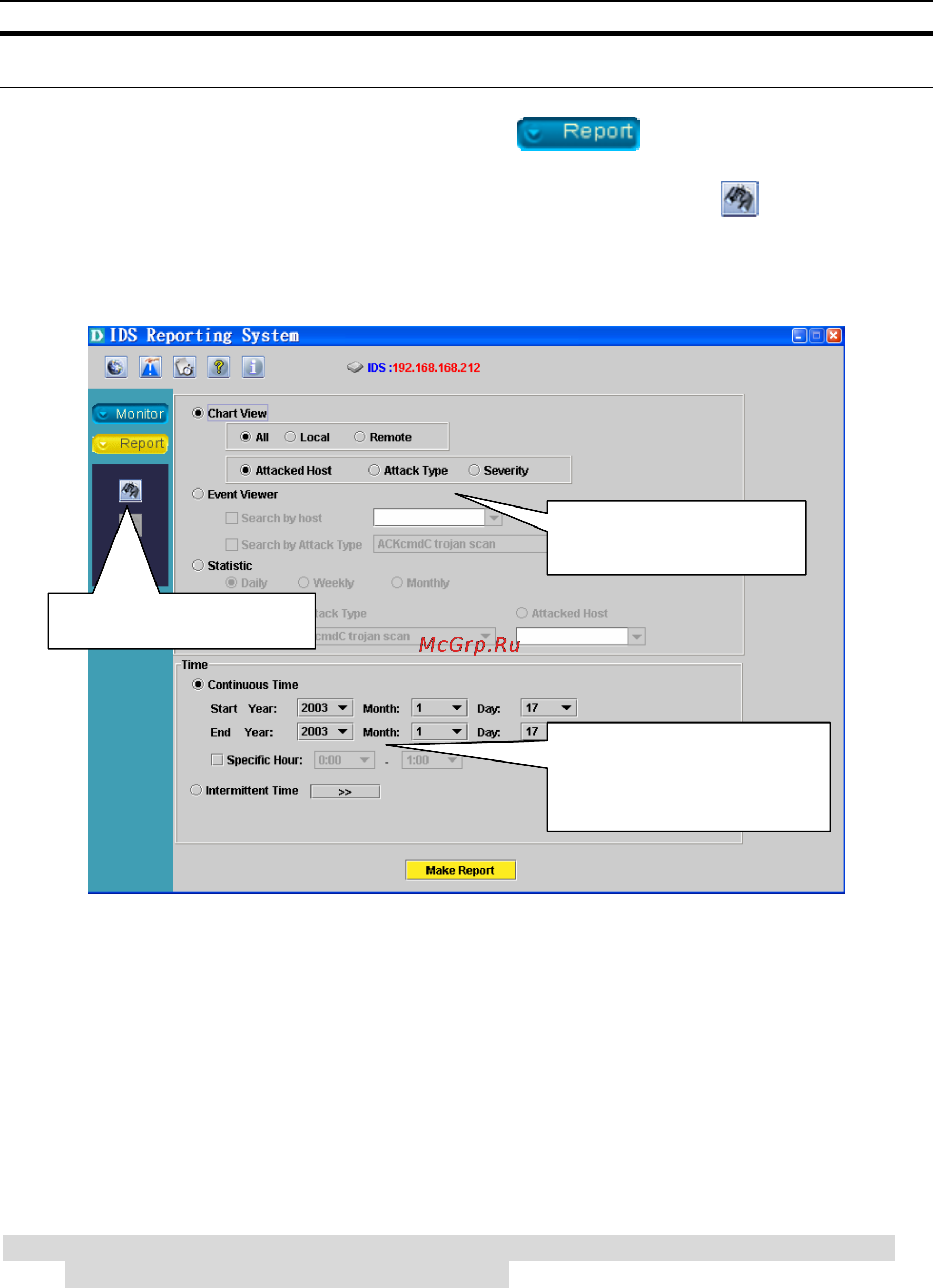

Figure 8-4: Report inquiry screen of attacks
On the selection screen of report forms, the inquiries of network attacks can be
categorized into three groups.
1. The attack report: a report of main network attacks. The manager can check the
ranking of attacked hosts, the ranking of attack types, the risk ranking of attacks and
etc.
2. The event search: An inquiry about serious attacks. It can search the network attacks
events distinguished by host attacks or network attacks.
3. The final type is Statistics: a statistical analysis of network attacks, including daily
report, weekly report, monthly report and various statistics of occurred network
attacks or hosts attacks.
Note: All attack events in report forms inquiry accurate “Inquiring Time”, otherwise
the search information may not be found.
The selection screen
of report forms
The selection screen of
report inquiring time
Report form button
