DFL-2100/DFL-2400 Intrusion Detection System User Manual
9
7

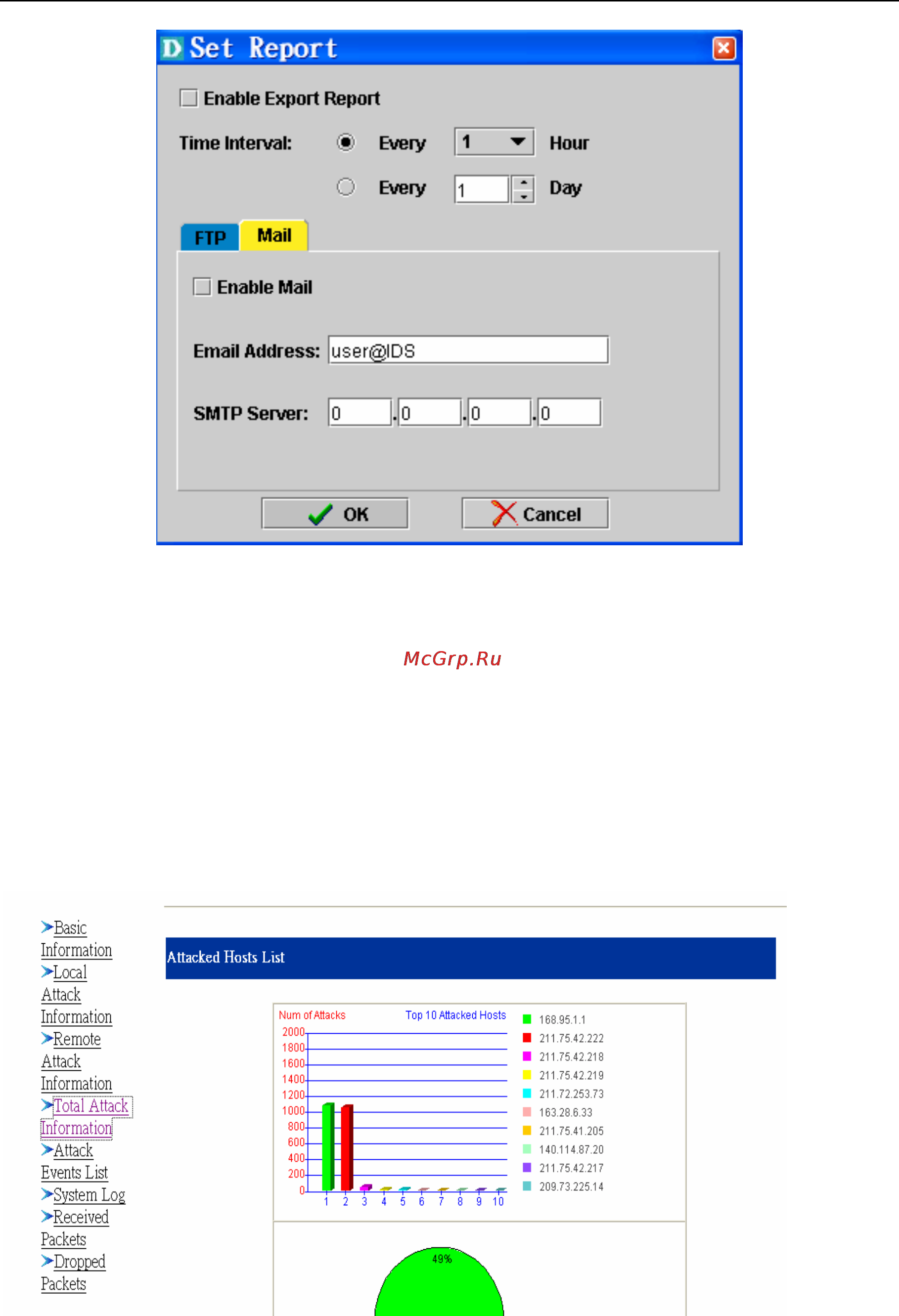

Figure 8-34: Set up a time report as mail output.
1. Check the box of “Enable Mail”.
2. Enter an e-mail address and click on “Finish” button.
3. Enter your STMP server.
4. Click on “Set up” button to finish the setting of enabling the time report
output for e-mail received.
Time Report Output covers complete information about DFL-2100/DFL-2400 IDS
Reporting System (including related information about network attacks and system
information). DFL-2100/DFL-2400 Reporting System builds these time reports in a web-
based form. Users just click on the index.htm of the home page to review reports through a
browser while receiving reports.
Figure 8-35: The Schedule Summary report
