DFL-2100/DFL-2400 Intrusion Detection System User Manual
74
Edit Schedule Book
DFL-2100/DFL-2400 allows you to define policy enable time based on the
schedule predefined in the Schedule Book. You can specify a Schedule as one or more
periods of time slots that composed of any hour in a week.
Add a Schedule
1. Click Schedule Book button to switch to the Schedule Book page.
2. Click Add button
or right-click on the Book Table and select Add.
3. Specify a unique Schedule Name.
4. Click or drag a scope with your mouse on the Schedule Time Table to select the
time that rule is to be triggered. The selected time box will be checked. You can also
use the predefined schedule time by clicking the Weekday, Weekend, Working
Hours, and Whole Week button on the right side of the table. Duplicate selection on
the same time box will uncheck it.
5. Enter your Comment for this Schedule.
6. Click Add to add the Schedule to the Schedule Book.

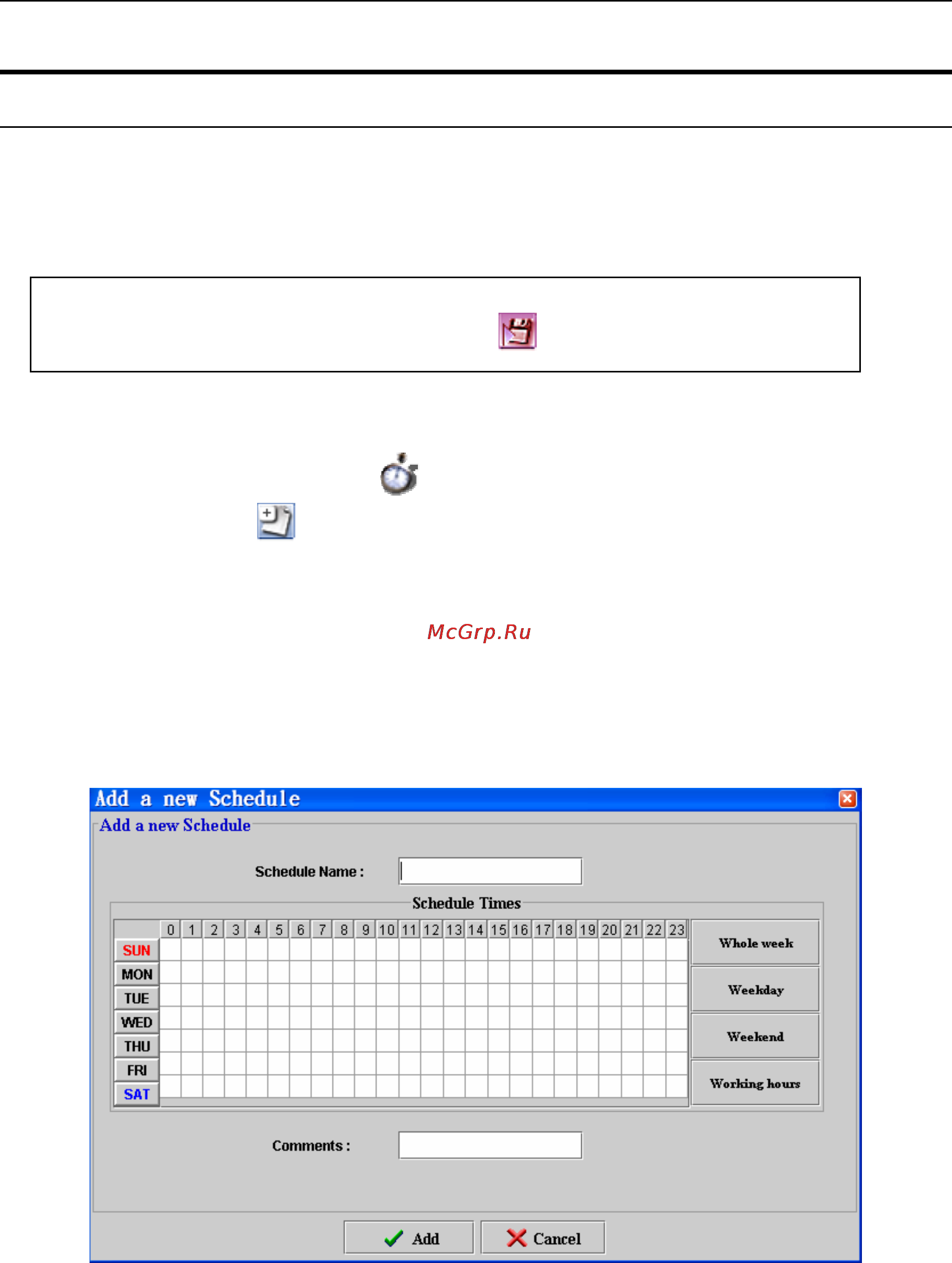

Figure 7-7: ”Add a new Schedule” Dialog
Note All the changes to the Schedule Book will not take effect until
the red -lighted Confirm button
is clicked.
