DFL-2100/DFL-2400 Intrusion Detection System User Manual
34
3. Maximum log per second
4. Set the DFL-2100/DFL-2400 state. There are four states in DFL-2100/DFL-2400.
‘Normal’ means DFL-2100/DFL-2400 works normally according to given policies.
‘Protect’ means DFL-2100/DFL-2400 works like an access controller. It would
let packets pass according to given policies. ‘Stop’ means DFL-2100/DFL-2400
would drop all the packets it receives. And ‘Bypass’ means DFL-2100/DFL-
2400 would let all the packets pass through freely without any checks.
5. Set Policy will apply to which interface.

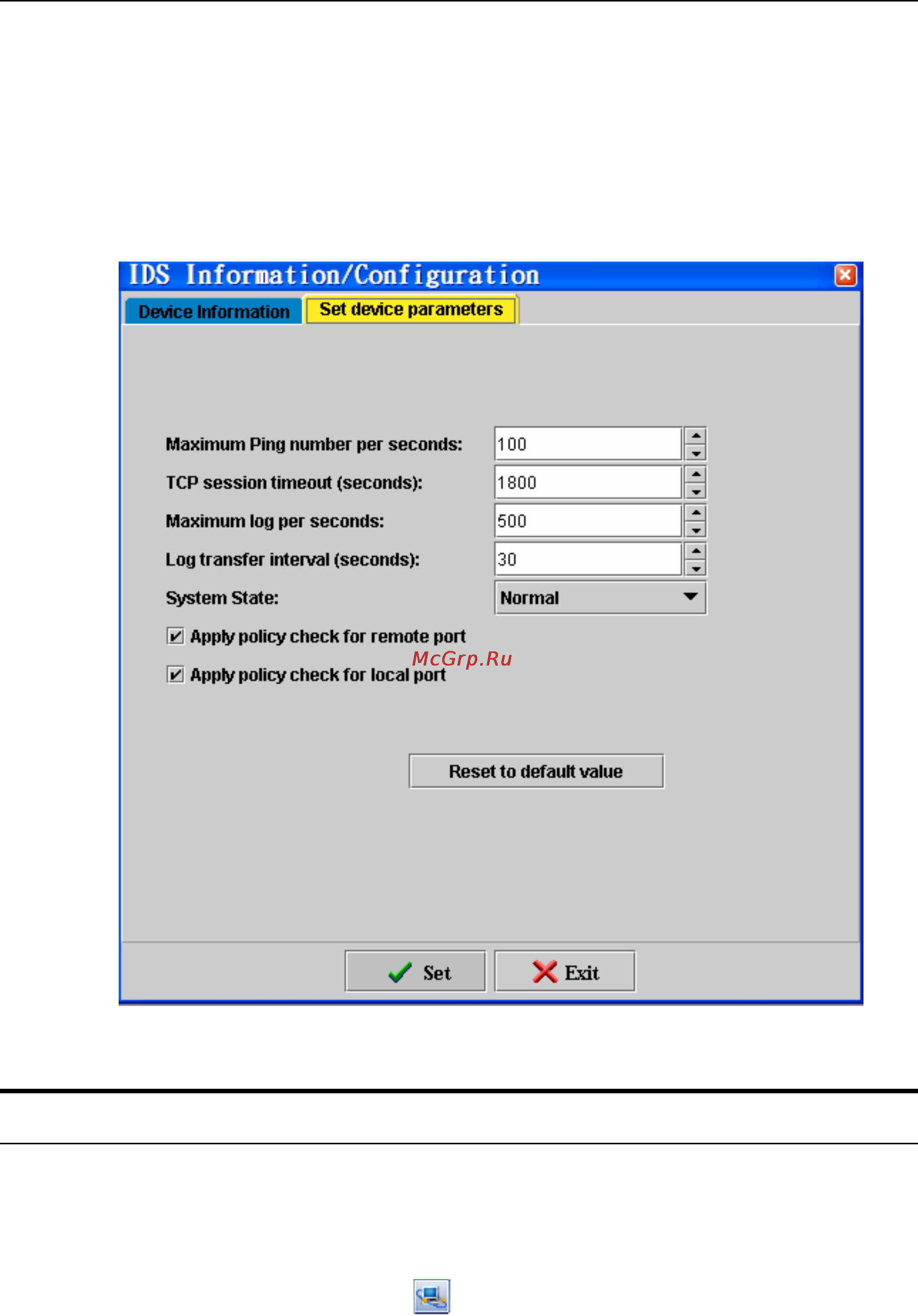

Figure 4-7: ”set device parameters” Dialog
User Manage
A user is some one who can use or access DFL-2100/ DFL-2400 IDS
Management System. As the Management System administrator, you decide who has
permission to access modify policy, select policy, search report.
Click User Management button
on the tool bar. The Management Windows
will appear. There are two default users in DFL-2100/DFL-2400 Policy Server. One is
Admin (administrator), another is guest (guests).
