DFL-2100/DFL-2400 Intrusion Detection System User Manual

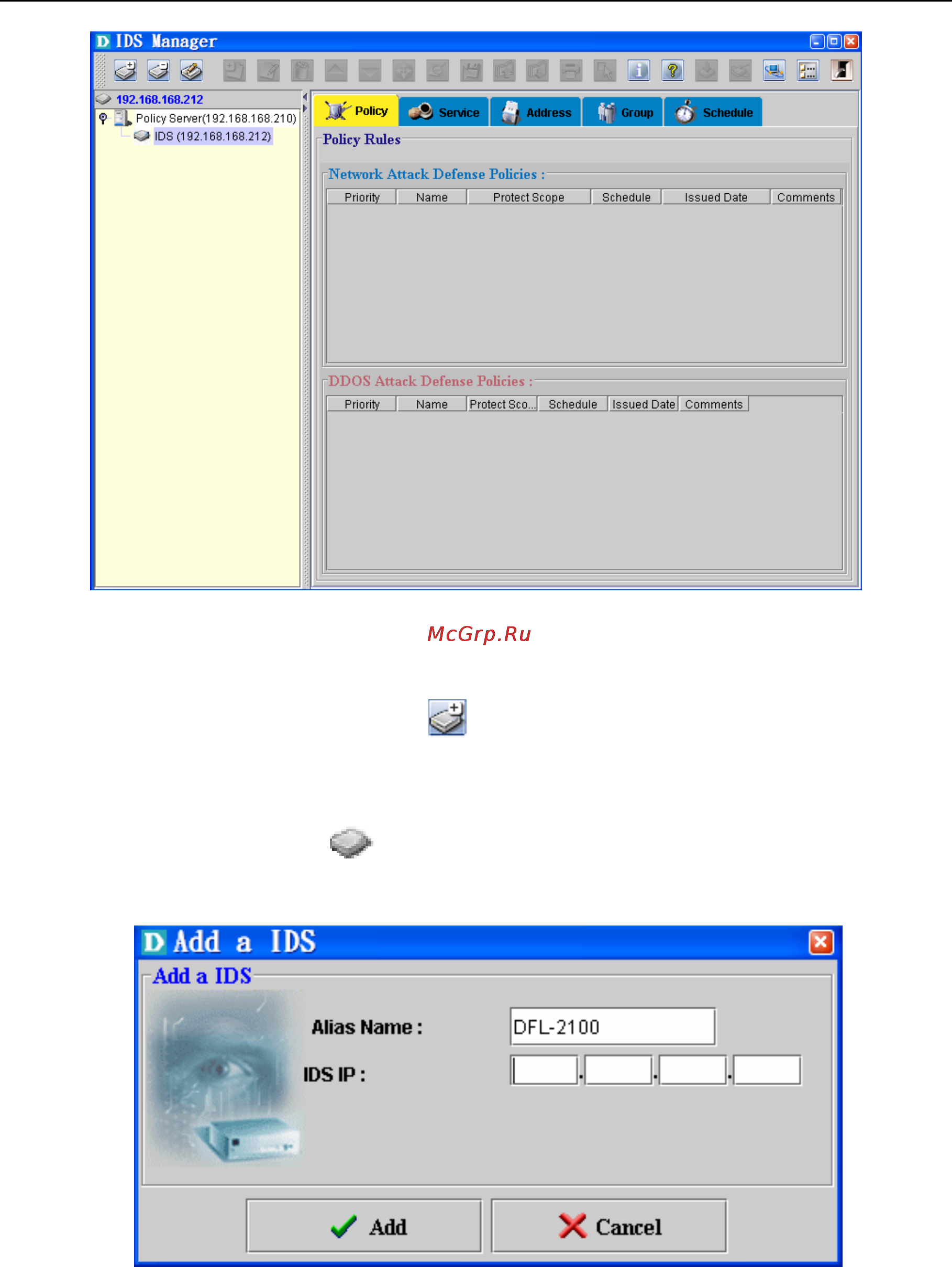

Figure 2-6: DFL-2100/DFL-2400 Management main screen

Add New DFL-2100/DFL-2400

1. Click Add DFL-2100/DFL-2400 button

2. Enter the Alias Name of the DFL-2100/DFL-2400.

3. Enter the IP of the DFL-2100/DFL-2400, which you want to add.

4. Click “Add” to add the DFL-2100/DFL-2400 device to the DFL-2100/DFL-2400 Tree.

5. Double click the device icon,

which you add and you can manage the DFL-

2100/DFL-2400 device.

Figure 2-7: ” Add a DFL-2100/DFL-2400” Dialog
