DFL-2100/DFL-2400 Intrusion Detection System User Manual
83
Users can double-click the content of this form to see a detailed information display like
the one on the right side of the following screen.

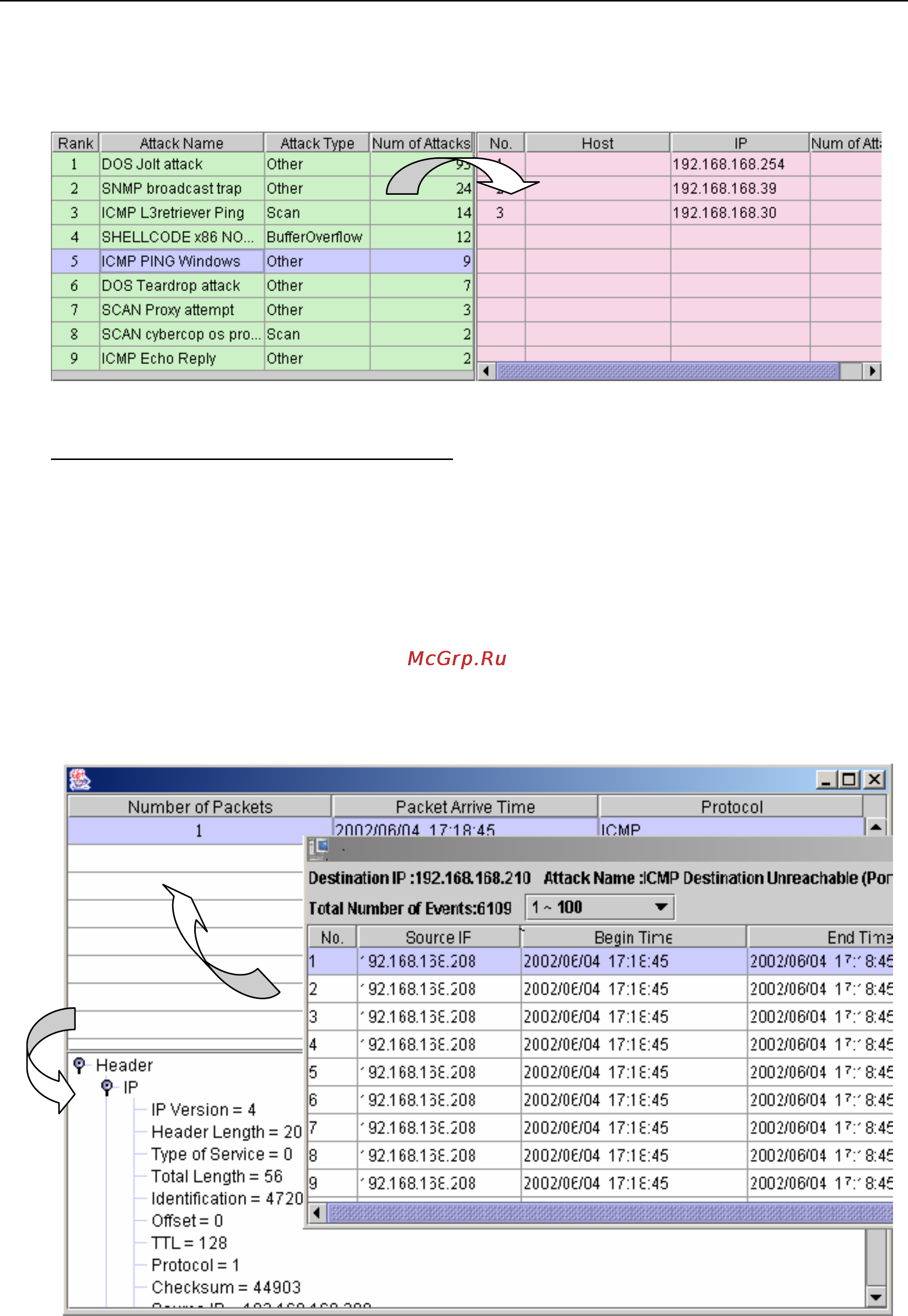

Figure 8-11: The inquiry screen of detailed information on attack events
The content description of inquiry screen:
◆ Serial number: the attacked hosts ranking.
◆ Host name: the names of attacked hosts.
◆ IP address: the IP addresses of attacked hosts.
◆ Number of attacks: the numbers of this IP address been attacked.
When user double-click the content of the right form, user will get a screen
displaying more detailed information such as attack time, sources and etc. User can
double-click the content on this screen to analyze the packet contents of this attack.
DFL-2100/ DFL-2400 Reporting System not only provides the entire network safety
status to system manager, but also instinctively gets a detailed and complete network
intrusion record to handle the network crisis well.
Figure 8-12: The detailed analysis screen of attack packets.
