DFL-2100/DFL-2400 Intrusion Detection System User Manual
5
5
parties can not modified or deleted, users can change their protect scope,
schedule and actions only.
Note Before you define your own policies, be sure that you know how the network works.
There are lots of fields in the “Define your own policy” procedure.

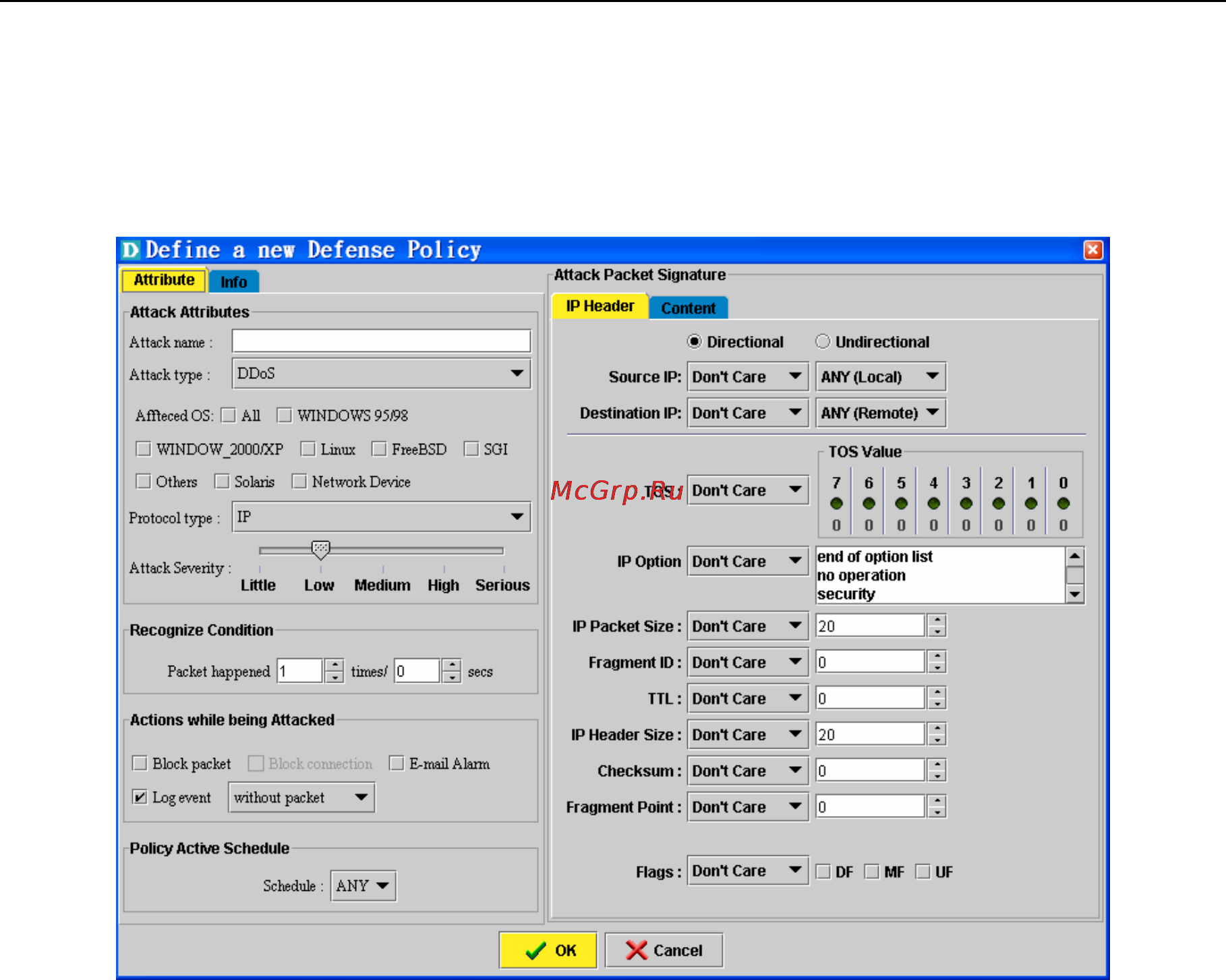

Figure 6-2: The” Define new Defense Policy” Window
The procedure of defining your own policy is:
1. Fill the “Defense Policy Attributes” frame.
2. Determine the “Recognize condition” constraint of a policy.
3. Determine the “Action while being attacked” for this policy.
4. Determine the “Policy active schedule” for this policy.
5. Fill the “Packet Criteria” frame.
We will illustrate the procedure in details in the following sections.
