DFL-2100/DFL-2400 Intrusion Detection System User Manual
7
Get Certification Downloading the Certification files to your client machine to ensure
that your browser will consider the DFL-2100/DFL-2400 Management
System and Reporting System applets as “trusted”.

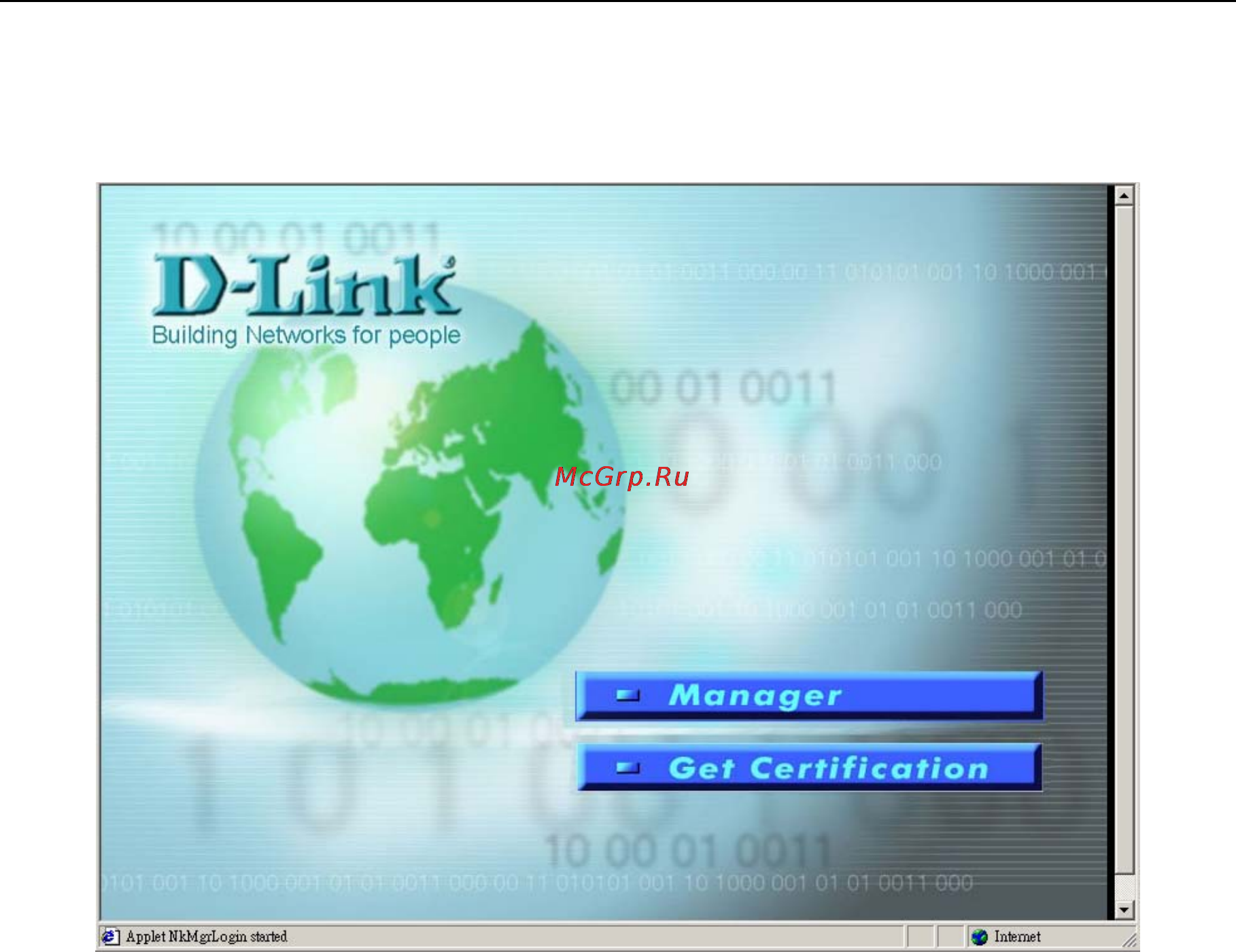

Figure 2-3: The DFL-2100/DFL-2400 Main Page
The Java Plug-In
The DFL-2100/DFL-2400 Management System and Reporting System run as Java
applets with the assistance of Sun Microsystems Java Plug-in. You will install the Java Plug-
in from the Policy Server automatically, when your browser connecting the Policy Server at
the first time.
Getting Certification
Once you have completed the installation of the Java Plug-in, you must get certification.
To get the certification, click on “Get Certification” and it will install certification files
automatically.
