D-Link DFL-2400 [21/112] Figure 2 10 download latest attack pattern

DFL-2100/DFL-2400 Intrusion Detection System User Manual

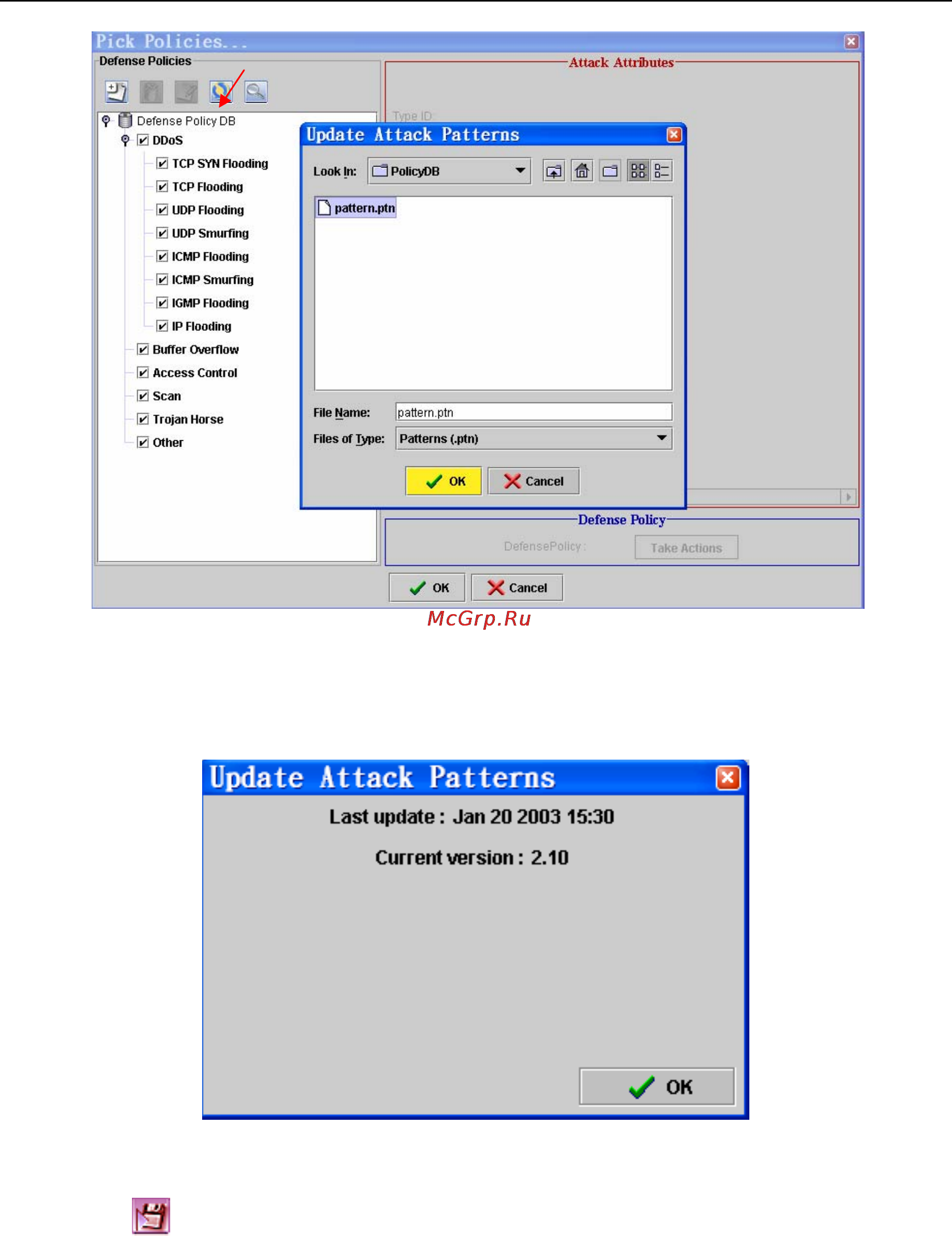

Figure 2-9: download latest attack pattern

¾ You can find new defense policies in the policy list when you finish the update.

Figure 2-10: download latest attack pattern

¾ All the changes to the defense policies will not take effect until the red-lighted Confirm

button

is clicked.
