D-Link DFL-2400 [59/112] Policy attribute

DFL-2100/DFL-2400 Intrusion Detection System User Manual

Policy Attribute

Each Policy has detail description about defense attack attributes. Administrator can get

the detail description and recommend action.

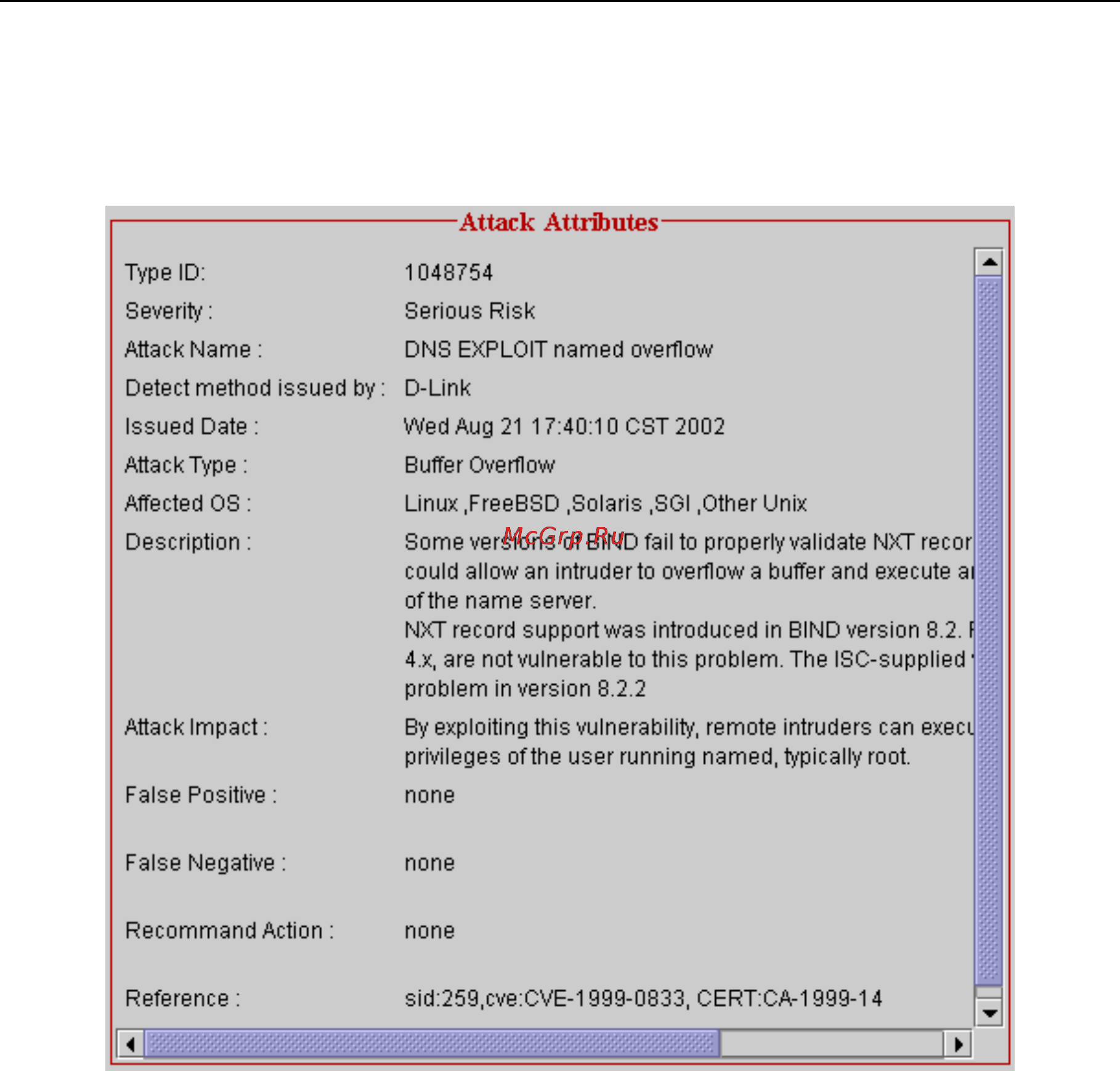

Figure 5-9: The Attack Attributes Frame
