DFL-2100/DFL-2400 Intrusion Detection System User Manual

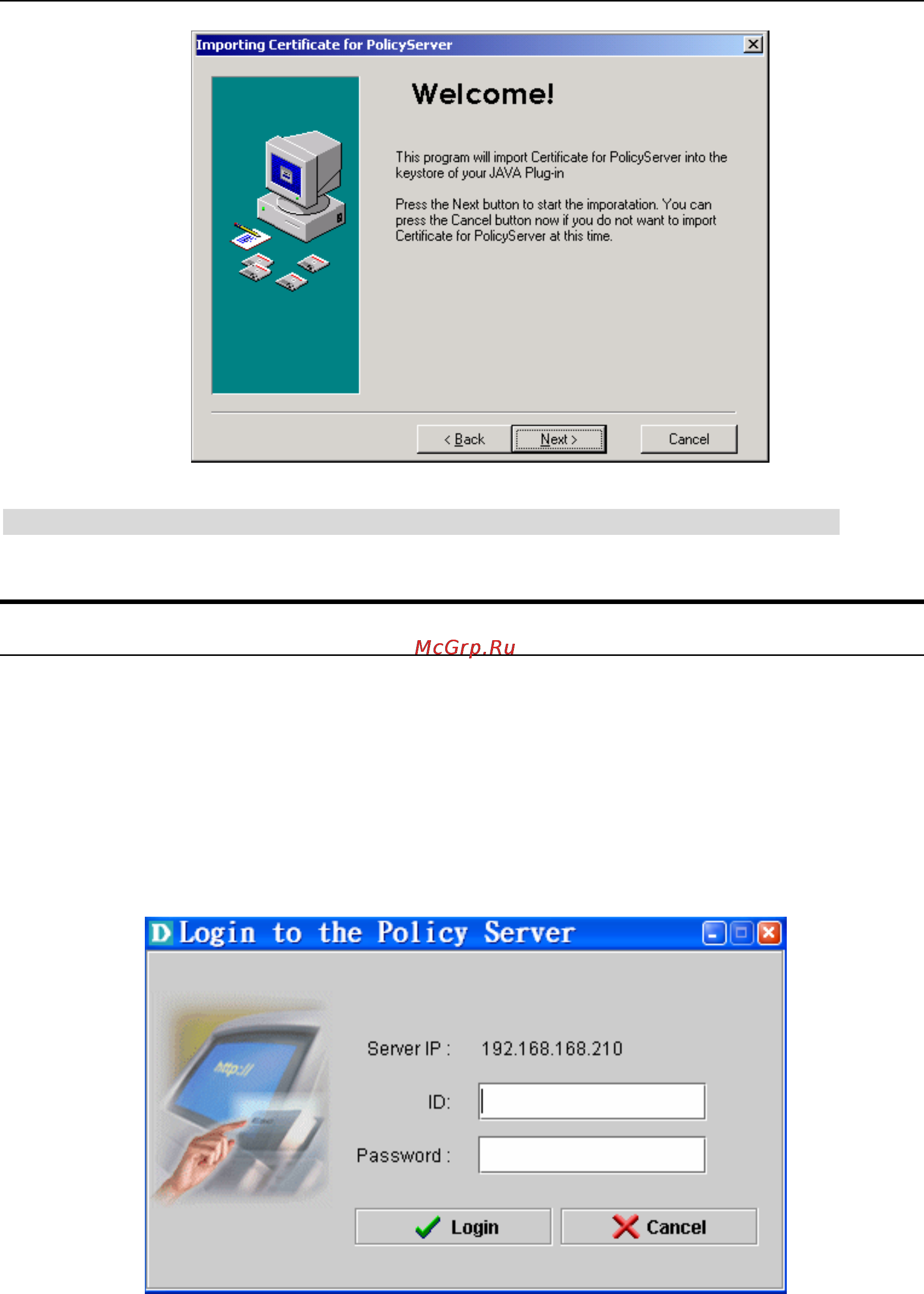

Figure 2-4: Get Certification

Once you have finished downloading the certification, you must restart your browser.

Manage your DFL-2100/DFL-2400

Start DFL-2100/DFL-2400 Management System

¾ Select Manager from the DFL-2100/DFL-2400 Main Page, the following login dialog

will appear.

¾ Enter the Password and click Login to login to the DFL-2100/DFL-2400 Management

main screen.

(Default ID: admin; password: admin)

Figure 2-5: DFL-2100/DFL-2400 Management System Login Screen
