DFL-2100/DFL-2400 Intrusion Detection System User Manual
31

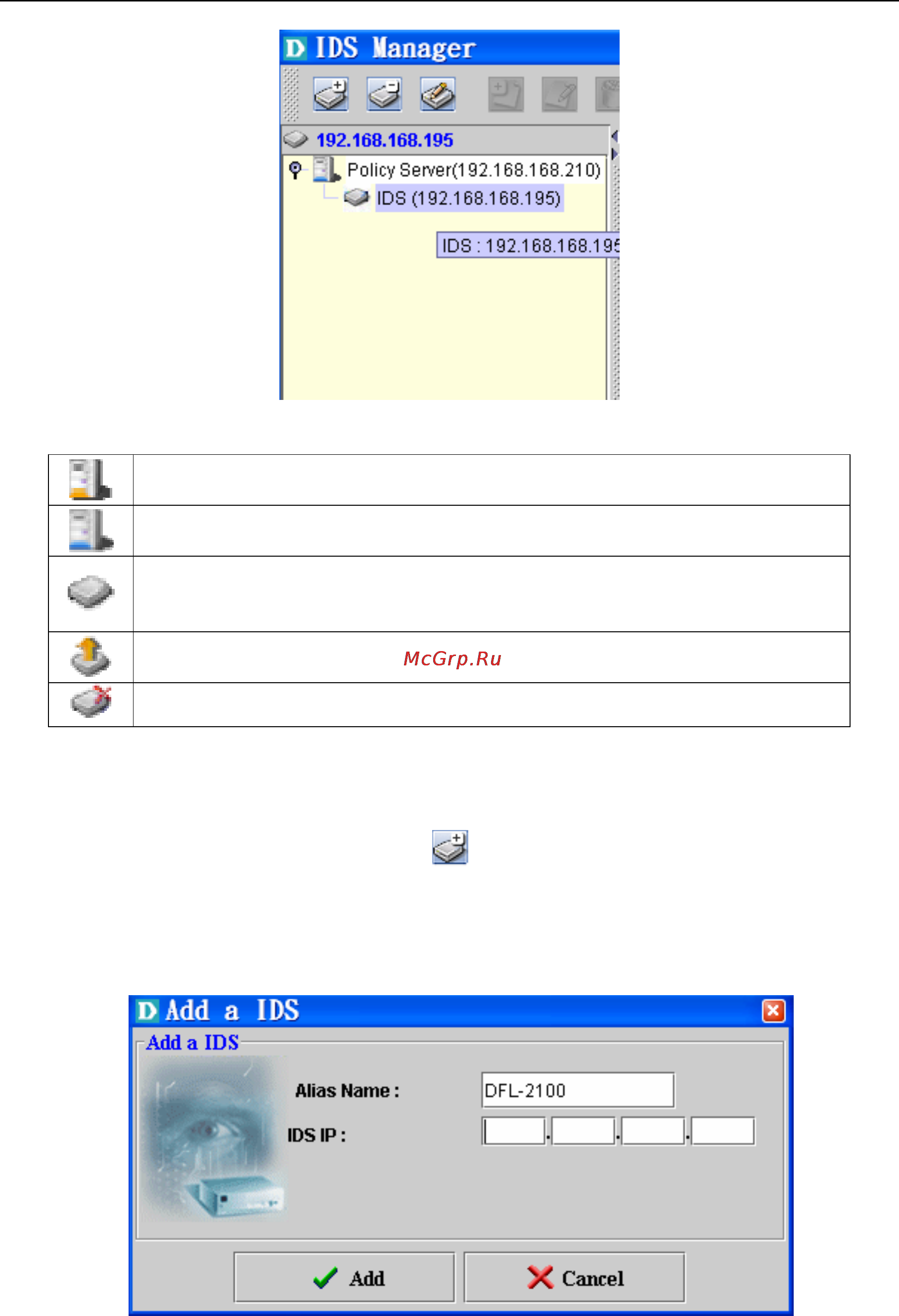

Figure 4-3: DFL-2100/ DFL-2400 IDS tree view
Tree-View root, the DFL-2100/ DFL-2400 Policy Server with IP address
being connected to. Double click this icon to expand the IDS tree.
Tree-View root, the DFL-2100/ DFL-2400 Policy Server with IP address
being connected to. Double click this icon to collapse the IDS tree.
Designates an active DFL-2100/DFL-2400 device with alias name and IP
address specified behind. Double click this icon to load the contents of
this DFL-2100/DFL-2400 device.
Designates the DFL-2100/DFL-2400 that has been loaded and modified
its settings and has not been updated.
Designates the DFL-2100/DFL-2400 is unavailable (broken of offline).
Table 4.1:Tree-View Icons and descriptions
Add a DFL-2100/DFL-2400
1. Click Add DFL-2100/DFL-2400 button on the tool Bar or right-click on the IDS tree
window to bring up the pop-up menu. Select Add a DFL-2100/DFL-2400.
2. Enter the Alias Name of the DFL-2100/DFL-2400.
3. Enter the DFL-2100/DFL-2400 IP of the DFL-2100/DFL-2400 you wish to add.
4. Click Add to add the DFL-2100/DFL-2400 device to the IDS Tree.
Figure 4-4: ” Add a DFL-2100/DFL-2400” Dialog
