DFL-2100/DFL-2400 Intrusion Detection System User Manual
8
0
Browse of main attack events
On the select screen of report forms, the system manager selects “Attack event
Report” and then selects the inquiry scope, object and time to inquire about the ranking of
attacked hosts, attack types and warning levels.

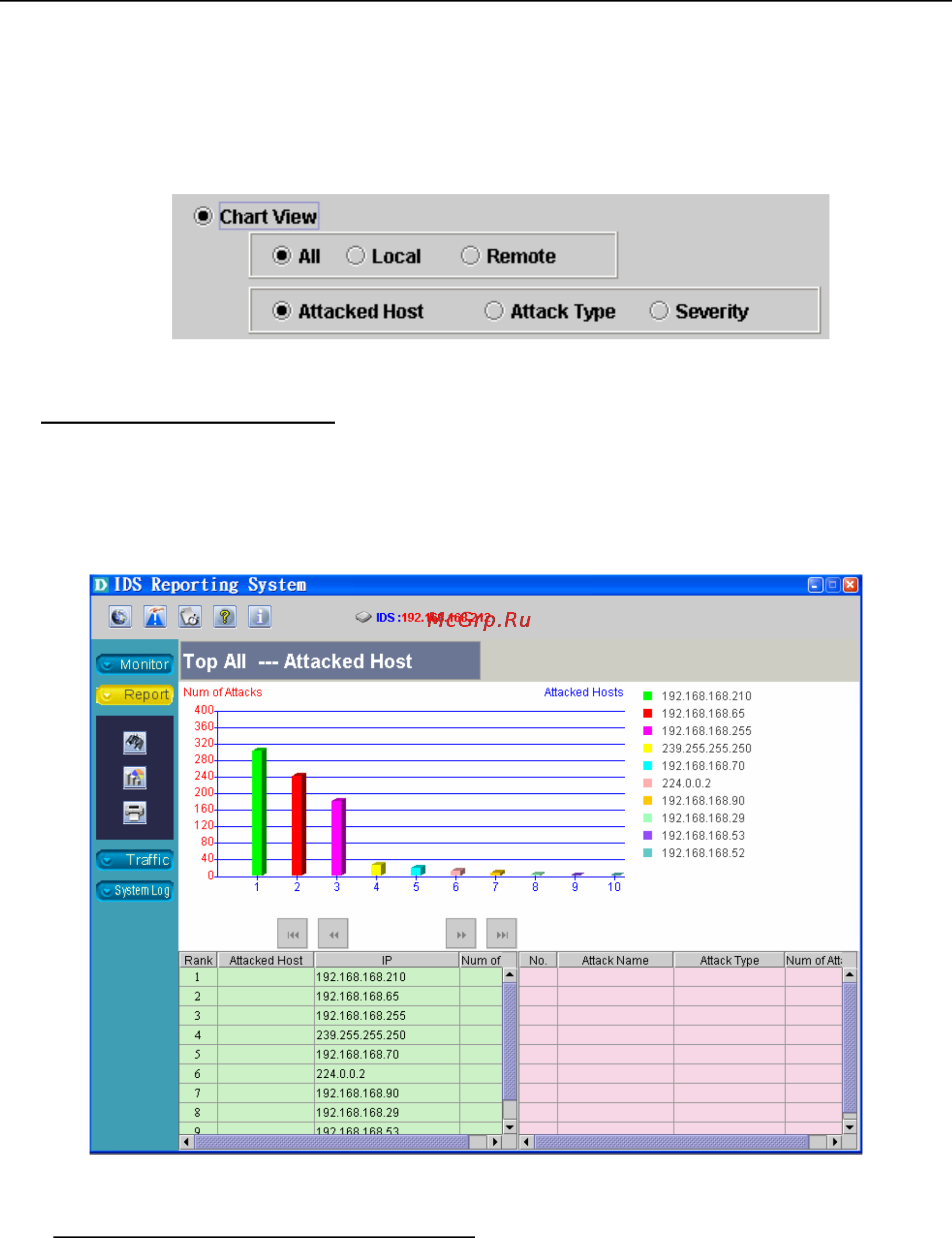

Figure 8-5: The inquiry screen of attack events ranking report
Ranking of attacked hosts:
In the options of attack events report, select the scope as “All” or other scopes as;
local or remote, then select “Attacked Host Name” and the corresponding time, and
click “Generate Chart” to see the Host attacked ranking report (similar to Figure 8-6).
Figure 8-6: The inquiry screen of the host attacked ranking
The content description of inquiry screen:
◆ Ranking: the host attacked ranking.
◆ Name of attacked hosts: the host names defined on the address list.
◆ IP address: the IP address of attacked hosts.
◆ Attacked number: Numbers of IP address been attacked.
