D-Link DFL-2400 [98/112] Selections of inquiring time

DFL-2100/DFL-2400 Intrusion Detection System User Manual

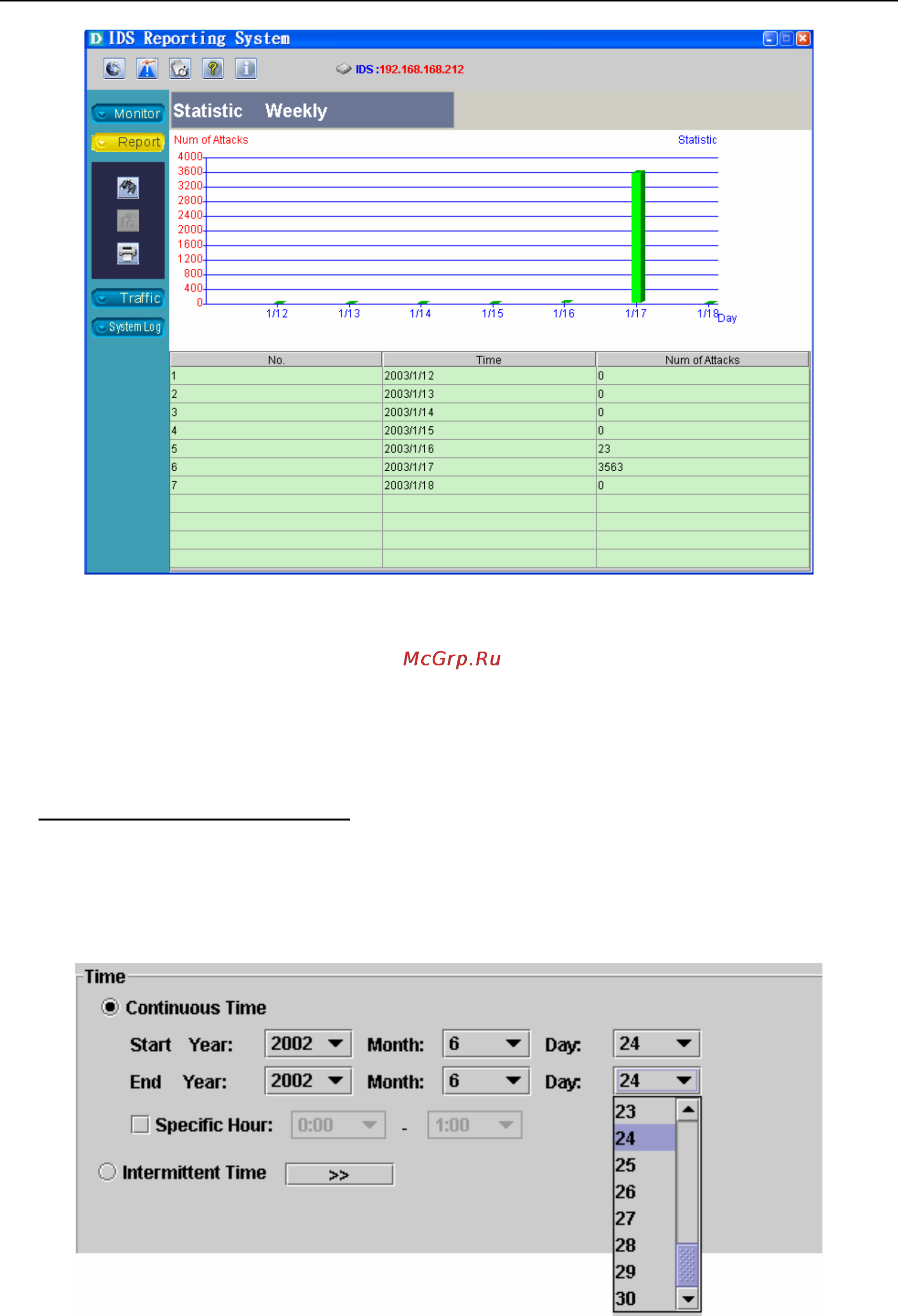

Figure 8-21: A weekly report of attack events

Selections of inquiring time

When the system manager inquires any form of reports, he/she should also select

the corresponding time period. DFL-2100/ DFL-2400 IDS Reporting System provides

two methods to select a time period; one continuous period, the other one as any

combination of discontinuous time period.

Select one continuous period:

For a continuous period, the system manager can easily use a pull-down menu to

select the starting and finishing time (Year, month and day), or even specific time

(especially valuable for tracking the intrusion by the hacker.).

Figure 8-22: The selection of a continuous time period
