D-Link DFL-2400 [73/112] The icmp tab

DFL-2100/DFL-2400 Intrusion Detection System User Manual

The ICMP Tab

The ICMP tab consists parameters for ICMP packet header field value settings:

1. Type: ICMP type field.

2. Code: ICMP code field.

3. ID: ICMP identification value

4. Packet Size: ICMP packet total size.

5. Checksum: ICMP checksum field.

6. Sequence: ICMP sequence number.

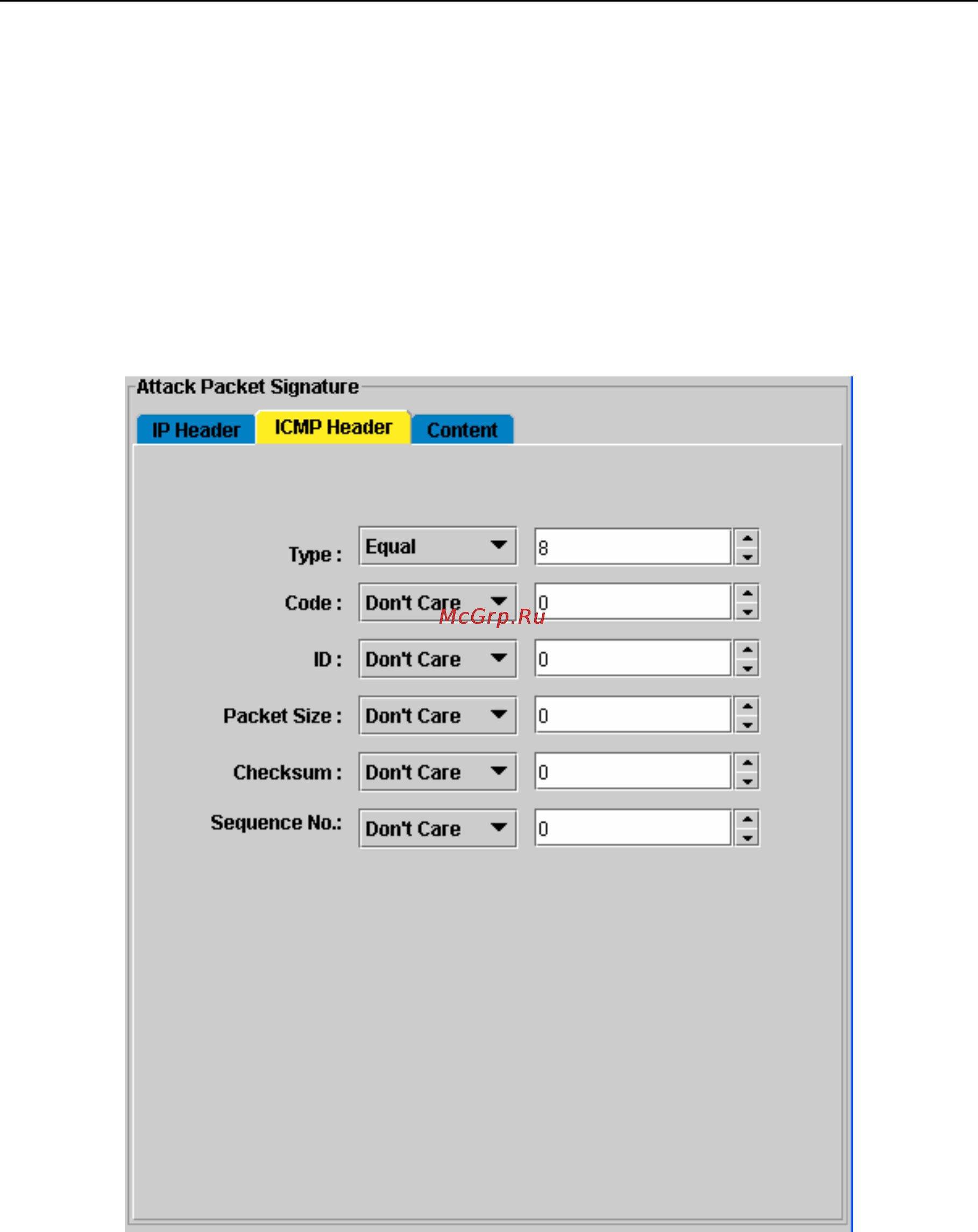

Figure 6-13: The ”ICMP Tab”
