DFL-2100/DFL-2400 Intrusion Detection System User Manual
9
5
Select a warning level: select the attack seriousness level that makes the
system to inform occurrences of attacks.
“Ok” button: click on this button to accept the setting of a new warning level.
“Cancel” button: click on this button to exit this screen.
When network attacks occur, the system displays a warning screen according to
settings.

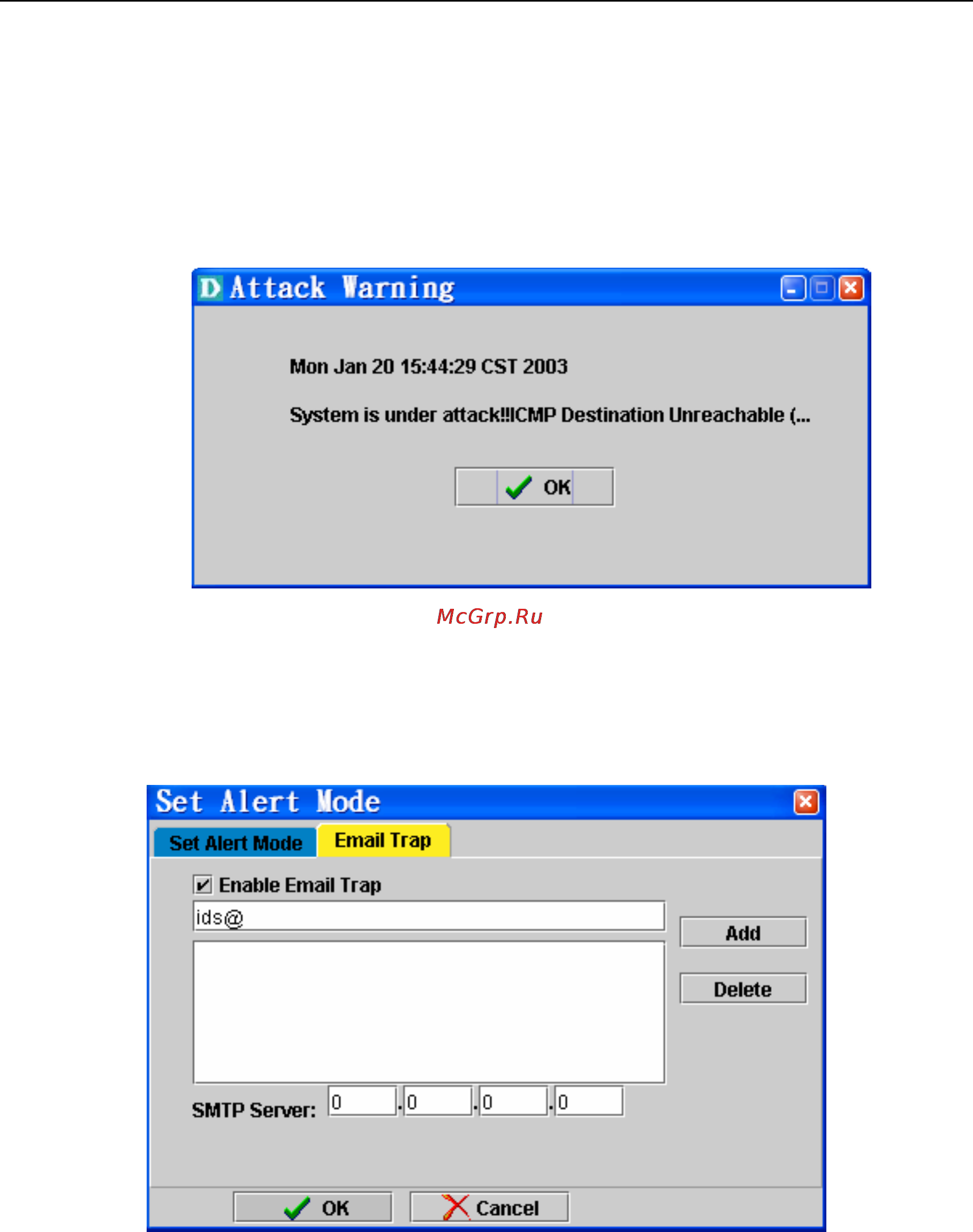

Figure 8-31: The warning dialogue box displays when the system is attacked.
E-Mail tarp: Setting enable an e-mail trap when the system is attacked. These
settings include a check box enabling mail notification and complete e-mail account
and IP address of SMTP server.
Figure 8-32: Use this dialogue box to enable the e-mail trap
