DFL-2100/DFL-2400 Intrusion Detection System User Manual
4
2
5
5 POLICY BASED IDS
What is a Policy?
The policy is the most important information in the DFL-2100/ DFL-2400 IDS
Management System. A policy tells DFL-2100/DFL-2400 how to detect an attack, how to
response when an attack is detected, what to protect and when to protect. Therefore, a
policy consists of policy information, defense describe, protect scope, schedule, actions
and some high level information such as class, issued date and etc.
The Policy Book
The policy book is divided into two tables. The upper table is “Network Attack
Defense Policies” and the lower table is “DDoS Attack Defense Policies”. The reason of
dividing these policies into different categories is because the detection methods are quite
different inherently. The “Network Attack Defense Policies” employ the pattern matching
while the “DDoS Attack Defense Policies” use statistical modeling.

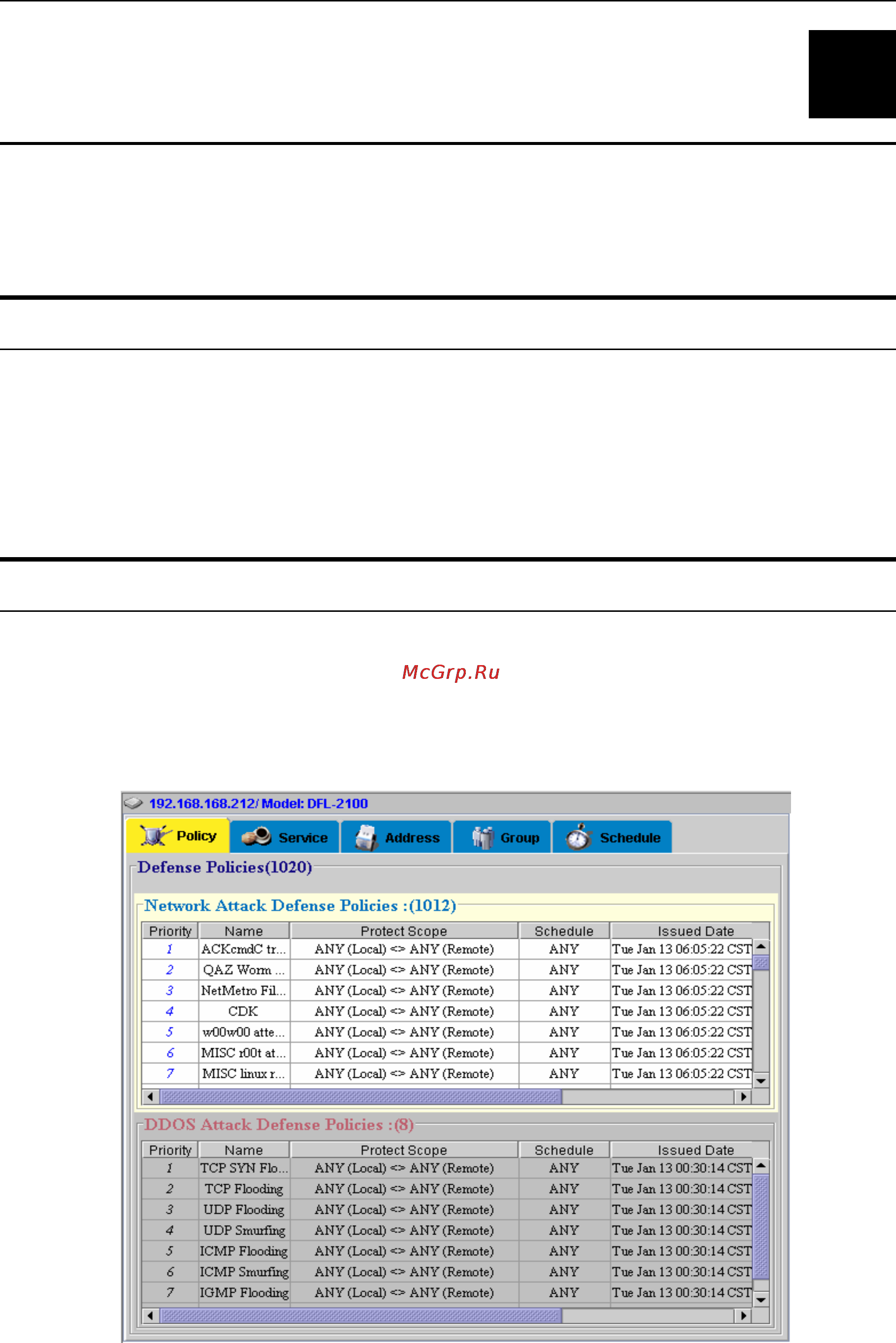

Figure 5-1: Policy Book
