DFL-2100/DFL-2400 Intrusion Detection System User Manual
84
Warning ranking of attack:
In the options of attack event report, selects the scope as “All” or other scopes as;
remote or local, then selects “Attack Warning Level” and the corresponding time, and
click “Generate Chart” to see the report of the warning ranking of attacks (similar to
Figure 8-14).

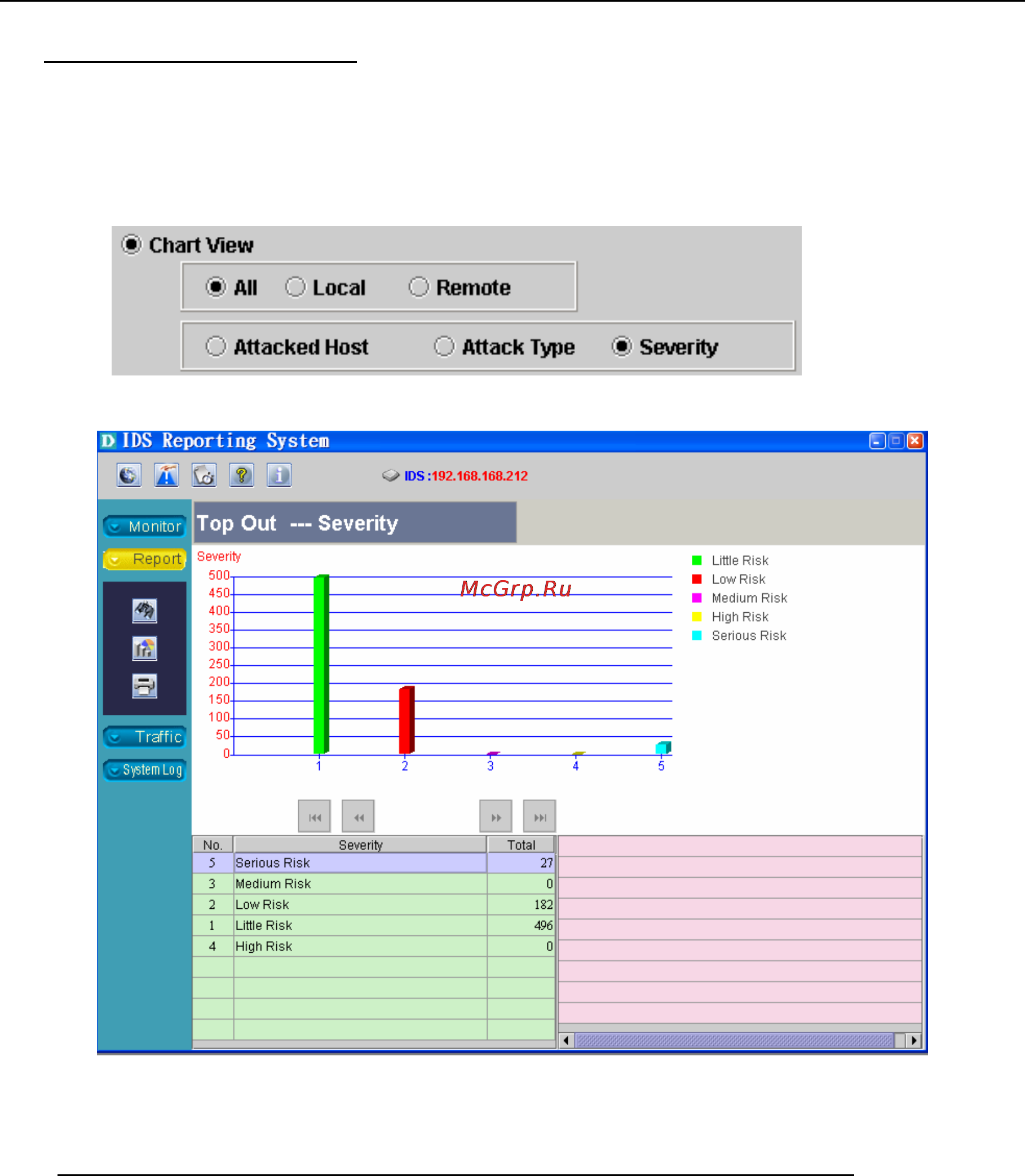

Figure 8-13: The inquiry screen of attack warning ranking
Figure 8-14: The inquiry screen of the danger attack ranking
The content description of inquiry screen of the danger ranking of attack:
◆ Serial number: the serial number of each attack warning level group.
◆ Display of the warning levels of attacks: the warning levels distinguished to 5
level: slight, low-level, medium-level danger, high-level danger and serious.
◆ Total: the accumulated attack numbers for all warning group.
