DFL-2100/DFL-2400 Intrusion Detection System User Manual
1
0
Load Newest Defense Policies
The policies are the most important information in the DFL-2100/DFL-2400 Management
System. Policies indicate to DFL-2100/DFL-2400 how to detect an attack and how to
response when an attack is detected. To start your DFL-2100/DFL-2400, you first need to
load latest defense policies.
¾ Select “Add” button
or click the right button of mouse on the Network attack
Defense Policies window to add new policies.

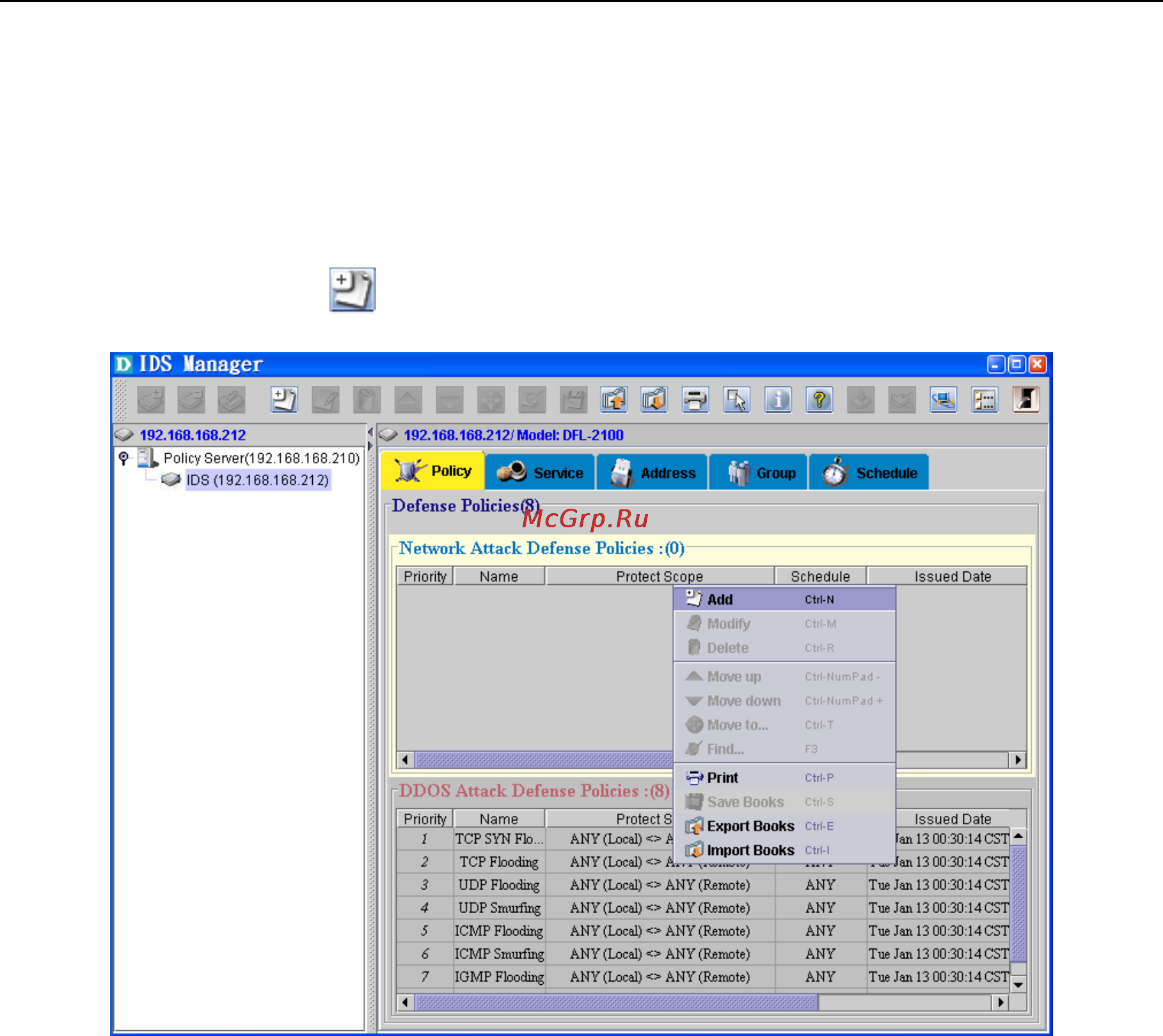

Figure 2-8:” Add Policies” Dialog
¾ There is a default policy database on the DFL-2100/DFL-2400 Policy Server,
administrator must select “Download latest attack pattern via network” to update latest
pattern from Administrator Utility CD ~/Policy Server/PolicyDB/ policyXXX.ptn.
