D-Link DFL-2400 [78/112] Modify a service

DFL-2100/DFL-2400 Intrusion Detection System User Manual

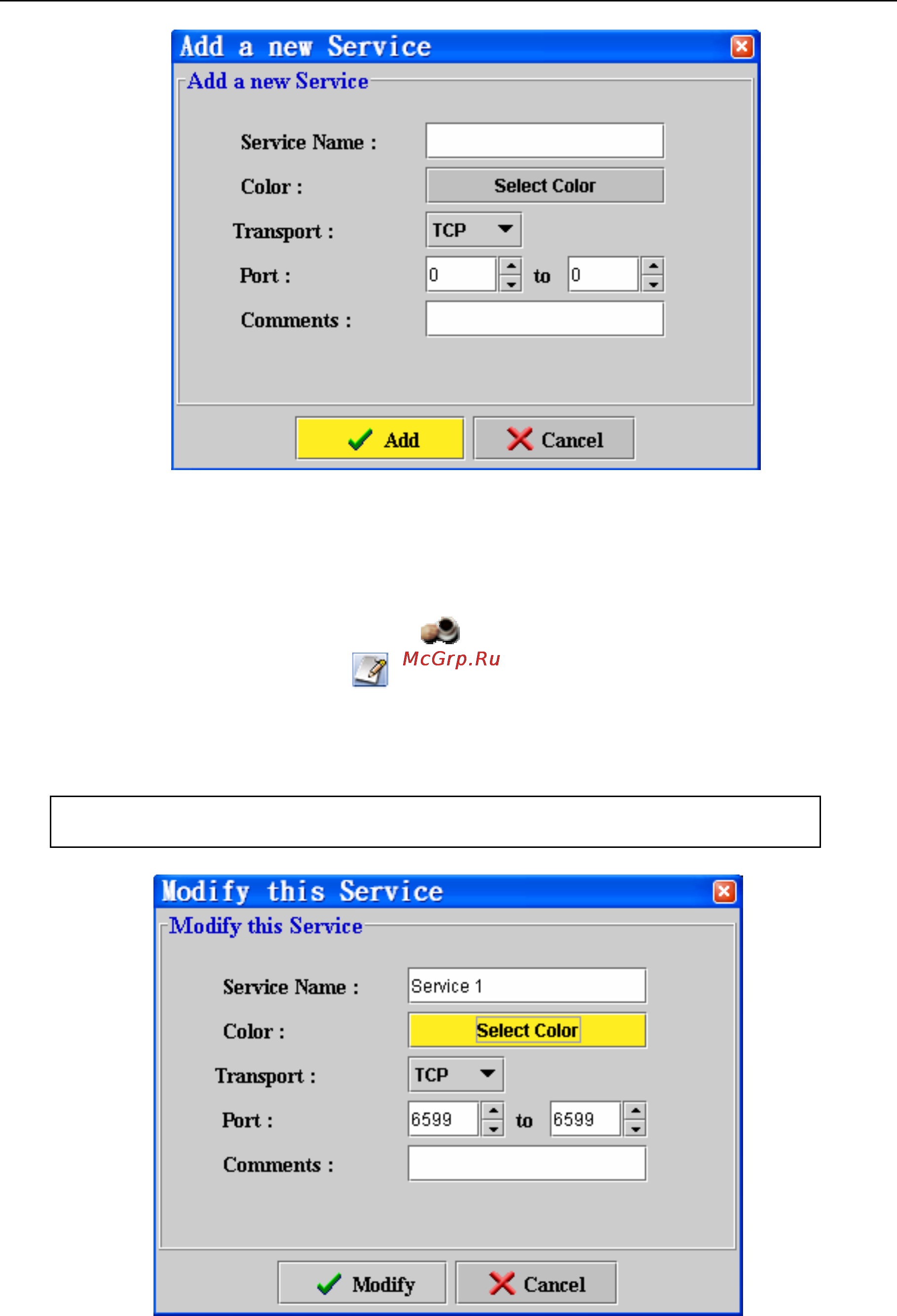

Figure 7-1: ”Add a Service” Dialog

Modify a Service

1. Click Service Book button to switch to the Service Book page.

2. Click Modify button

or right-click on the Book Table and select Modify.

The following dialog appears.

3. Modify any of these fields as you wish.

4. Click Modify to update this Service.

Figure 7-2: ”Modify a Service” Dialog

Note You cannot modify a default Service.
