D-Link DFL-2400 [46/112] Delete user

DFL-2100/DFL-2400 Intrusion Detection System User Manual

Delete user

1. Click Delete User button on the dialog.

2. The confirm dialog will appear.

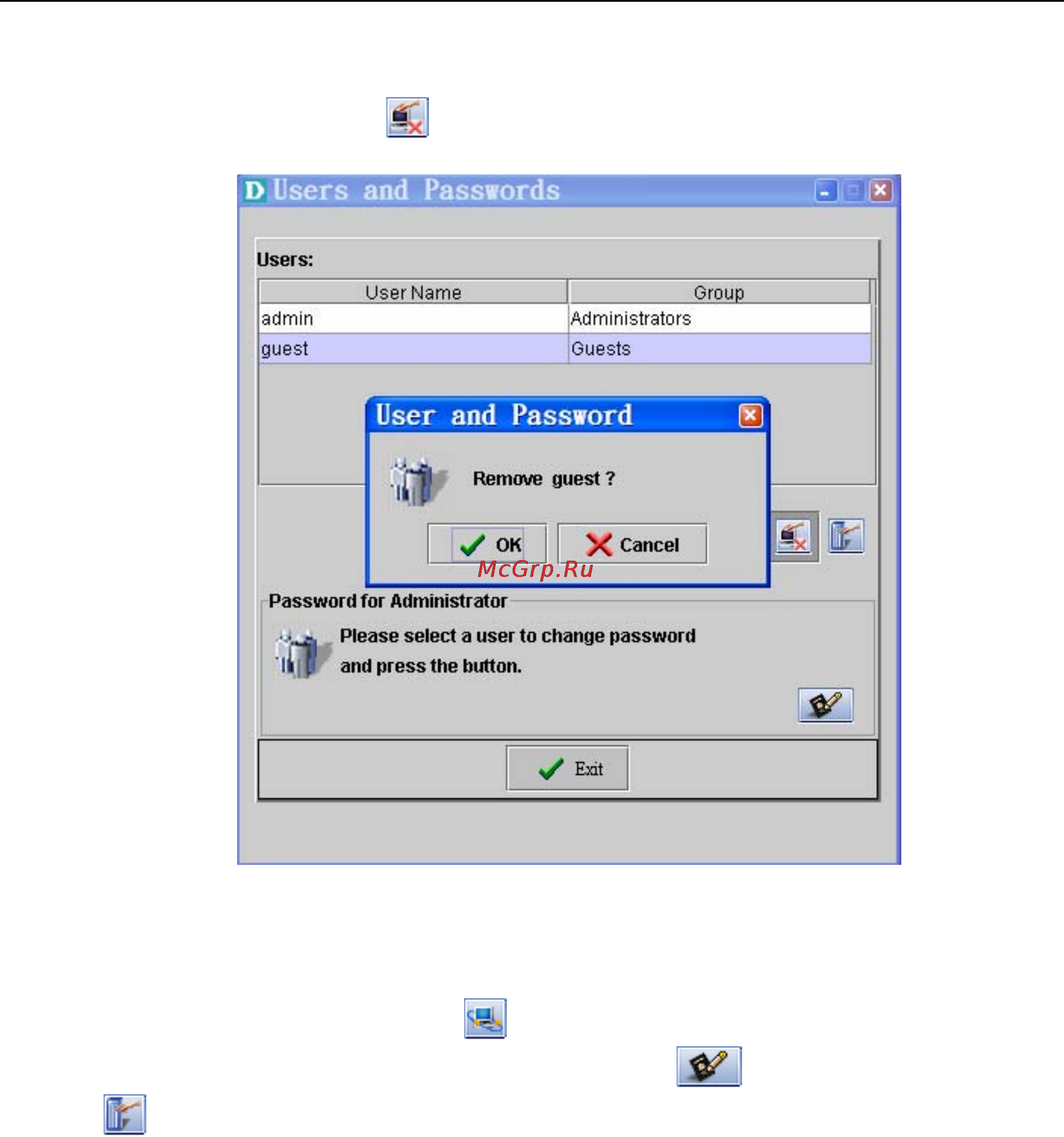

Figure 4-10: Remove User Dialog

Edit user

Once you click user management button , it will show the user list. Select one user you

can change the password by click change password button

. Or you can click the

manage

button in the dialog to edit the user parameters. There are three levels of

parameters can be changed.

1. User password.

2. User group.

3. Policy Server Access permission.
