DFL-2100/DFL-2400 Intrusion Detection System User Manual
81
Users can double-click the content of this form to see the detail information display
like the one on the right side of the following screen.

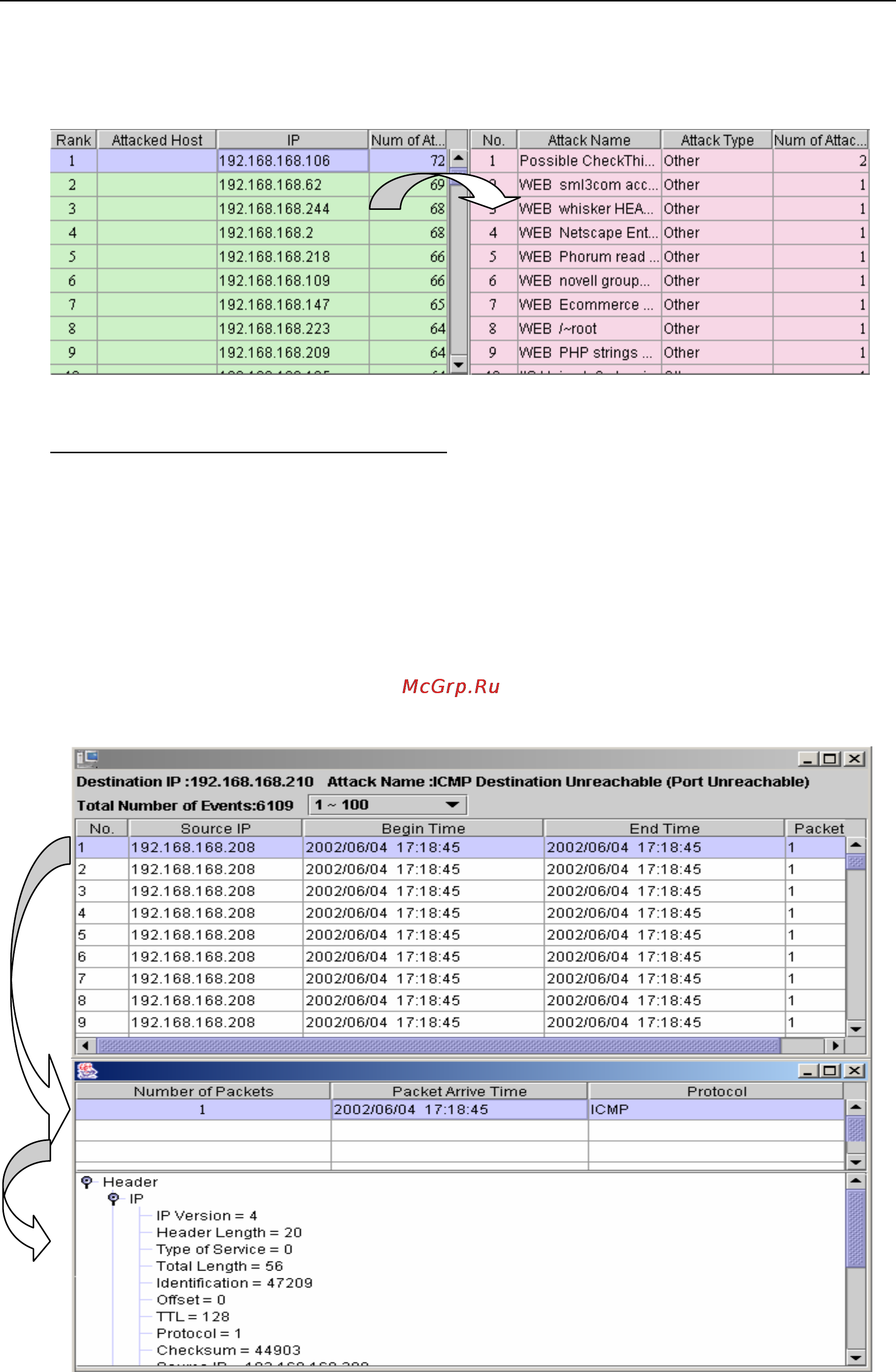

Figure 8-7: The detail information on the inquiry screen of attacked host
The content description of inquiry screen:
◆ Serial number: the ranking of network attacks to this host.
◆ Attack names: name of the attacks to this host.
◆ Attack types: types of these attacks.
◆ Numbers of attacked: numbers of the attacks to this IP address.
When users double-click the content of the right form, user will get a screen
displaying more detail information such as attack time, source data and etc. User can
double-click the content on this screen to analyze the packet content of this attack.
DFL-2100/ DFL-2400 Reporting System not only provides the entire safety status of the
system manager’s network, but also instinctively gets a detailed and complete network
intrusion record to handle network crisis well.
Figure 8-8: The detailed analysis screen of attack packet
