DFL-2100/DFL-2400 Intrusion Detection System User Manual
93
System events
When the system manager clicks on “System Event” button, DFL-
2100/DFL-2400 IDS Reporting System will provide reports of all system information,
including the occurring time and contents of system information
, system warning
, system emergency , and fatal system error .

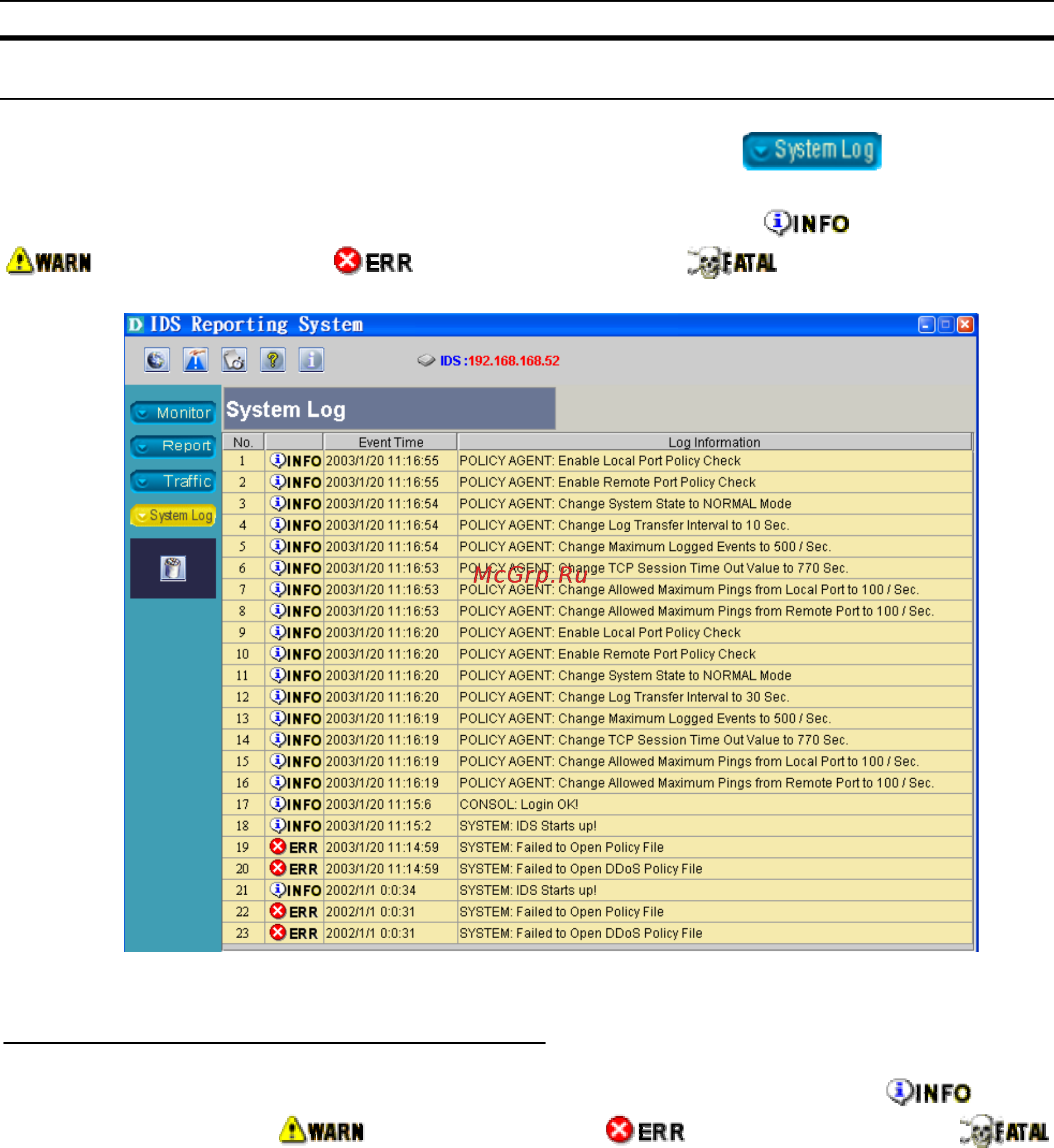

Figure 8-28: The reviewing screen of system event records
The content description of system event screen:
Serial number: the serial number of historical records of system events.
Type: there are four definitions of system event – system information
,
system warning
, system emergency , and fatal system error .
1. System information: such as information about booting.
2. System warning: Minor errors or events that temporarily do not influence
system operation.
3. System emergency: Serious errors that influence a normal operation or some
functions of the system.
4. Fatal system error: Events that influence the operation of main system
functions.
Time of System events: the occurring time recorded by the system.
Information about system events: the descriptions of system events.
