DFL-2100/DFL-2400 Intrusion Detection System User Manual
8
6

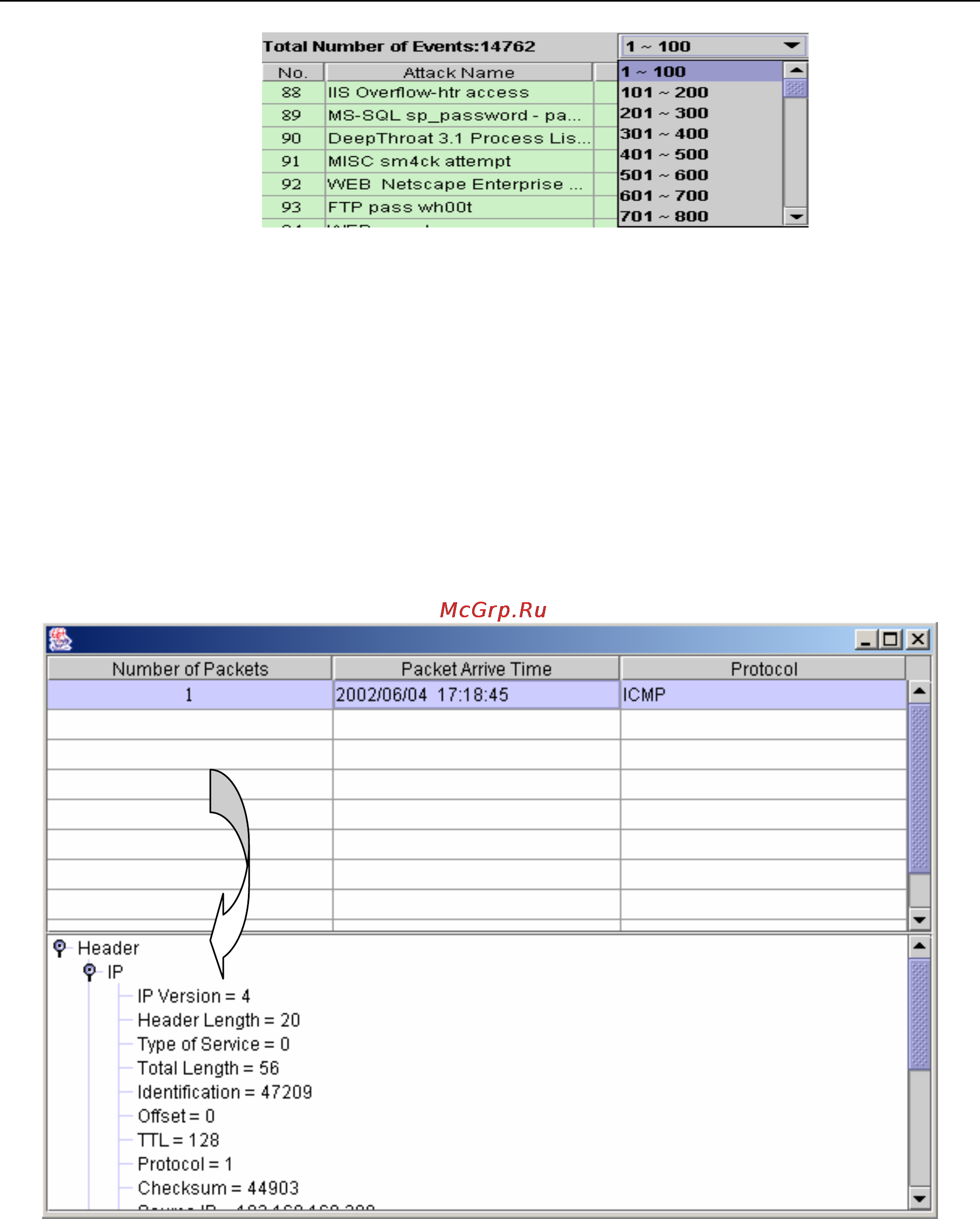

Figure 8-17: The screen of number of attack events
◆
Serial number: the serial number of attacks.
◆ Attack name: the name of this attack.
◆ Host name: The names of attacked hosts pre-defined on the address list.
◆ Attacked IP address: the attacked IP address
◆ Number of packet: the number of packets accepted by this attack.
◆ Starting time: the time this attack begins.
◆ Finishing time: the time this attack ends.
When user double clicks the content of this form, user will be able to analyze the
packet content of this attack. DFL-2100/ DFL-2400 IDS Reporting System not only
provides the entire network safety status to system manager, but also instinctively gets
a detailed and comprehensive network intrusion records to handle network crisis well.
Figure 8-18: The analysis screen of attack packet.
◆
Serial number of packet: the serial numbers of packets.
◆ Event time: the event begins.
◆ Packet attacking time: the time when packets are received.
◆ Protocol: the protocol type of a packet. The protocol might be TCP, UDP, ICMP,
or IGMP.
◆ Double click on a certain packet, and then the system will analyze this packet
and display each field in a tree structure. (Refer to Figure 8-18.)
